06-132-969

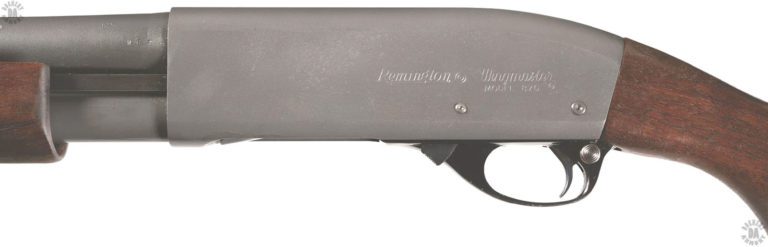

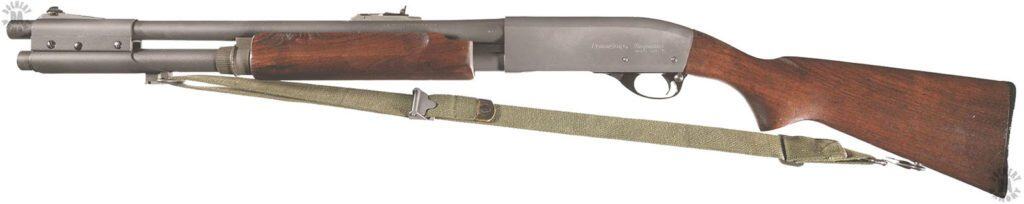

NAME – Remington 870 Mark 1
TYPE – Slide-action repeater
COUNTRY OF ORIGIN – USA
DATE OF MANUFACTURE – 1969
CALIBER – 18.5x70mmR (12 Ga 2 3/4 in)
OVERALL LENGTH – 106 cm (41.75 in)
BARREL LENGTH – 53.3 cm (21 in)
RIFLING (TYPE & TWIST) – Smoothbore
CHOKE – Modified
LOAD – XM162 00 Buck
PELLET DIAMETER – 8.6 mm (0.34 in)
NUMBER OF PELLETS – 9
WEIGHT OF PELLET – 3.8 g (58 grains)
MUZZLE VELOCITY – 383 m/s (1257 fps)
MUZZLE ENERGY – 2483 j (1831 ft/lb)
MUZZLE ENERGY PER PELLET – 275 j (203 ft/lb)
WEIGHT (EMPTY) – 3.63 kg (8 lb)
WEIGHT (LOADED) – 4.01 kg (8 lb 13.4 oz) fully loaded with 7 rounds in magazine + 1 in chamber, 8 rounds total
SIGHTS – Open, Iron, Adjustable, Front sight – Blade, Rear sight V-notch adjustable for range and windage
EFFECTIVE RANGE – 27 m (30 yards)
OPERATION – Manual, slide-action
TYPE OF FIRE – Repeating
RATE OF FIRE – 24 rpm
FEED DEVICE – 7 round tubular underbarrel magazine
FEED DEVICE WEIGHT (LOADED) – 0.38 kg (13.4 oz) 7 rounds in magazine, + 1 in chamber
BASIC LOAD – 20 rounds (2 boxes)
LOAD WEIGHT – 0.95 kg (2 lb 1.5 oz)
MANUFACTURER – Remington Arms Company, Inc. Illion, New York
STATUS – Issue
SERVICE – US Marine Corps, Naval Special Operations (SEALs)
SHOT SPREAD AT 27 m (30 yards) 66 cm (26 in)
