06-132-985

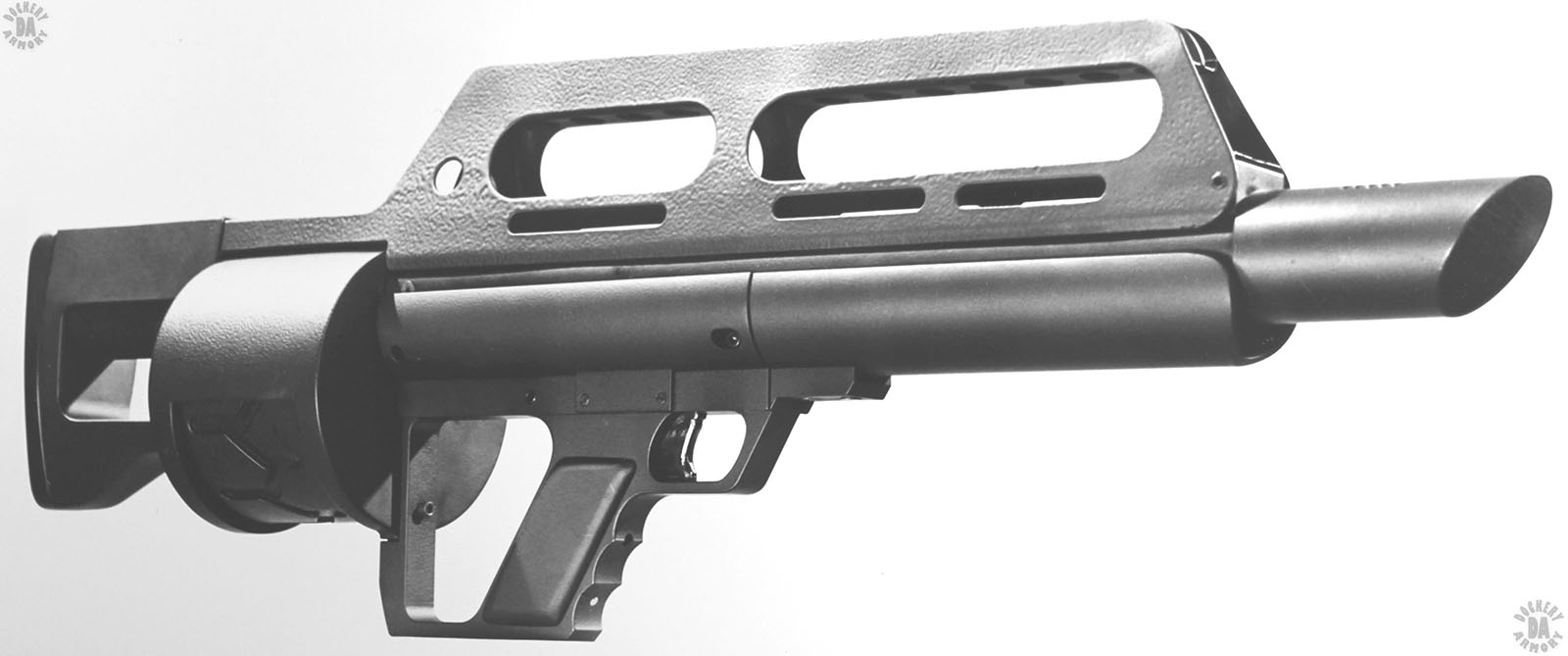

NAME – Pancor Jackhammer Mark 3-A1

TYPE – Select-fire shotgun

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1985

CALIBER – 18.5x70mmR (12 Gauge 2 ¾ inch)

OVERALL LENGTH – 78.7 cm (31 in)

BARREL LENGTH – 52.5 cm (20.7 in)

RIFLING (TYPE & TWIST) – Smoothbore

CHOKE – None

LOAD – 00 Buckshot

LOAD WEIGHT – 34.2 g (522 grains)

PELLET DIAMETER – 8.6 mm (0.34 in)

NUMBER OF PELLETS – 9

WEIGHT OF PELLET – 3.8 g (58 grains)

MUZZLE VELOCITY – 359 m/s (1179 fps)

MUZZLE ENERGY – 2185 j (1611 ft/lb)

MUZZLE ENERGY PER PELLET – 243 j (179 ft/lb)

WEIGHT (EMPTY) – 3.87 kg (8 lb 8.5 oz)

WEIGHT (LOADED) – 4.51 kg (9 lb 15.1 oz)

SIGHTS – Open, iron, fixed, Front sight – Square post, Rear sight – V-notch

EFFECTIVE RANGE – 37 m (40 yards)

OPERATION – Gas

TYPE OF FIRE – Selective, Semi and Full Automatic

RATE OF FIRE – 30 rpm (Semiautomatic), 40 rpm (Full automatic)

CYCLIC ROF – 240 rpm

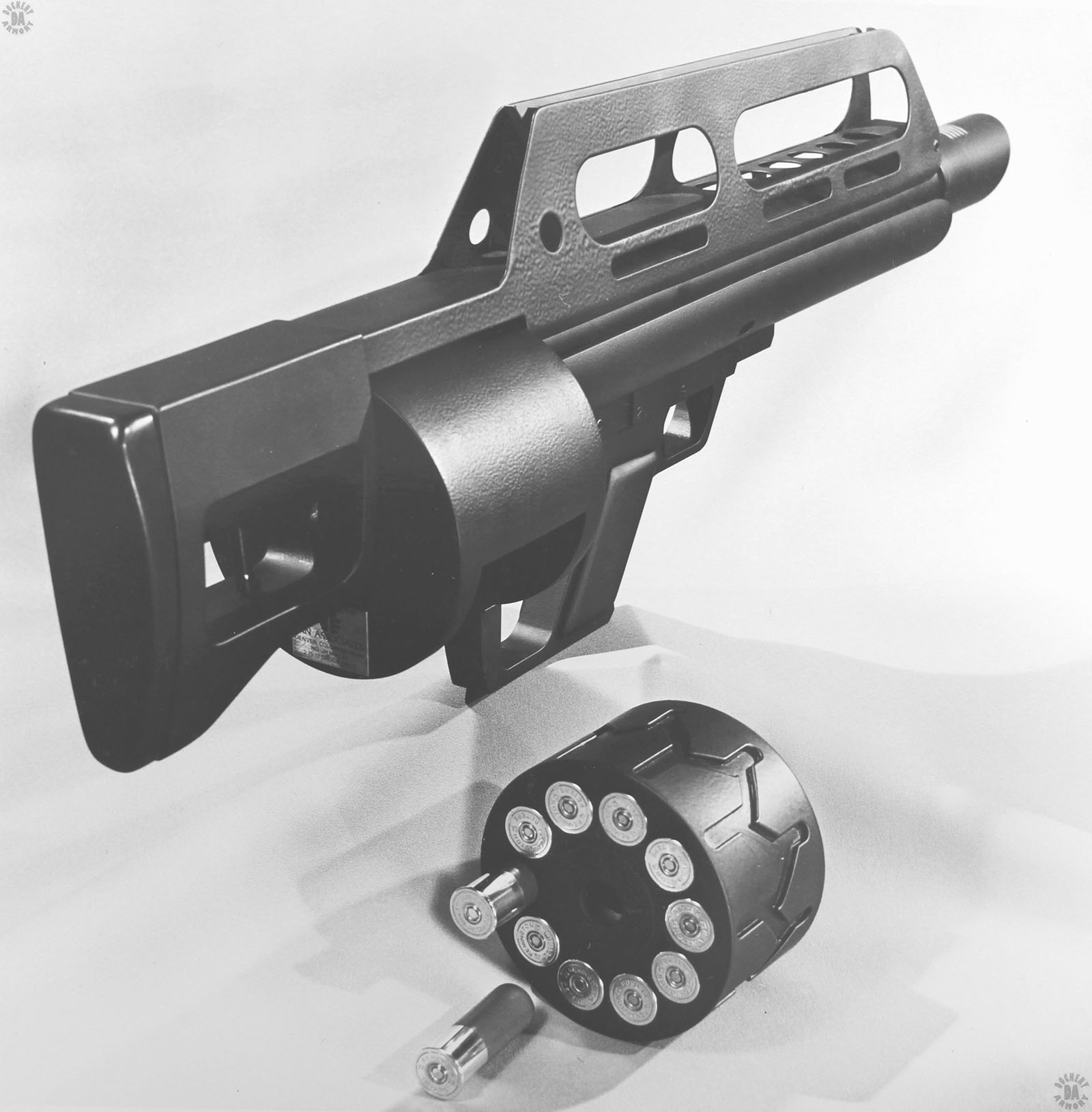

FEED DEVICE – 10 round drum Cassette

FEED DEVICE WEIGHT (EMPTY) – 0.18 kg (6.5 oz)

FEED DEVICE WEIGHT (LOADED) – 0.64 kg (1 lb 6.6 oz) with 10 rounds

BASIC LOAD – Four cassettes (40 rounds)

LOAD WEIGHT – 2.56 kg (5 lb 10.3 oz)

MANUFACTURER – Pancor Corporation, Bel Air, Maryland

STATUS – Advanced development

SERVICE – Evaluation
