CODE – 02-011-990

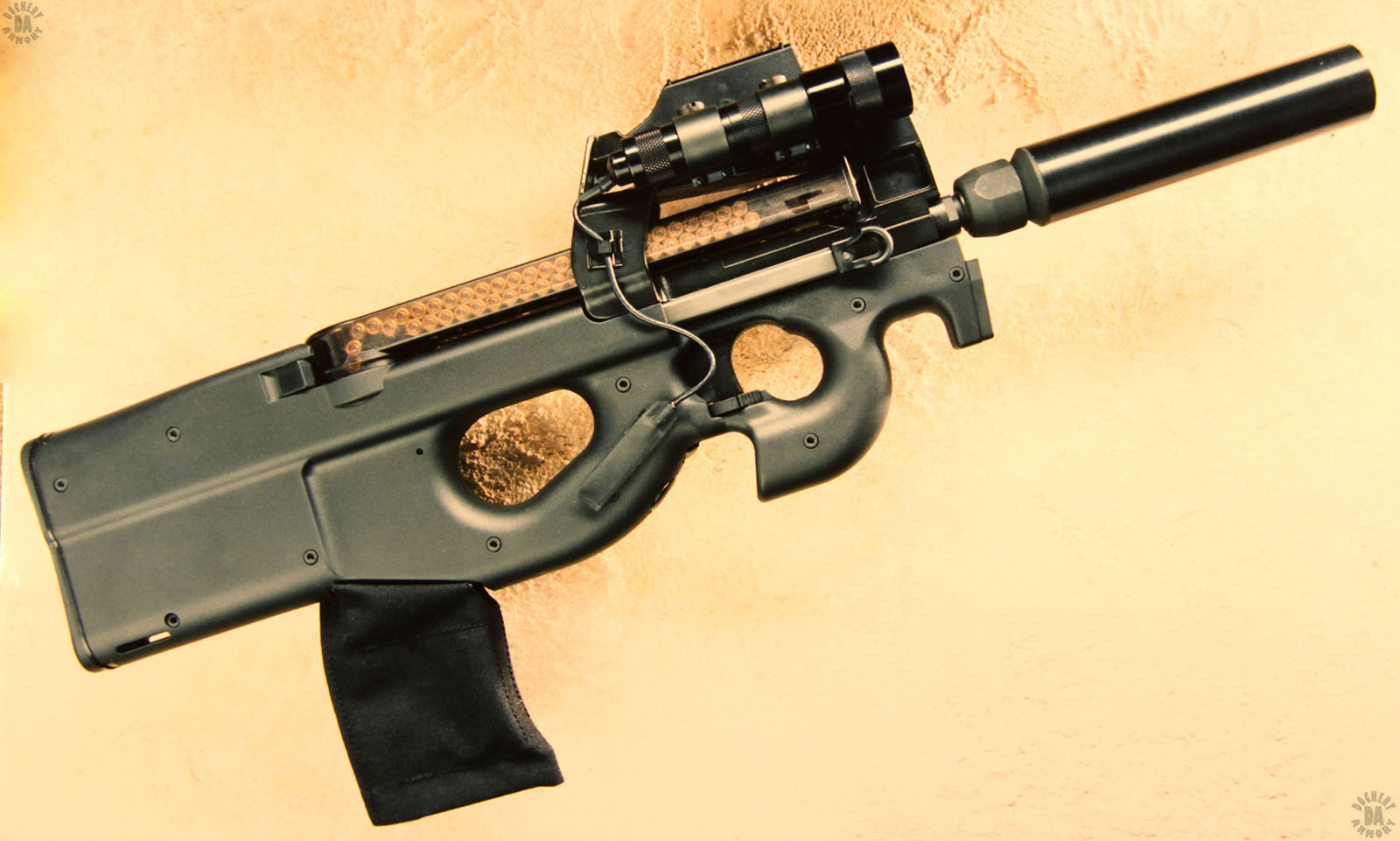

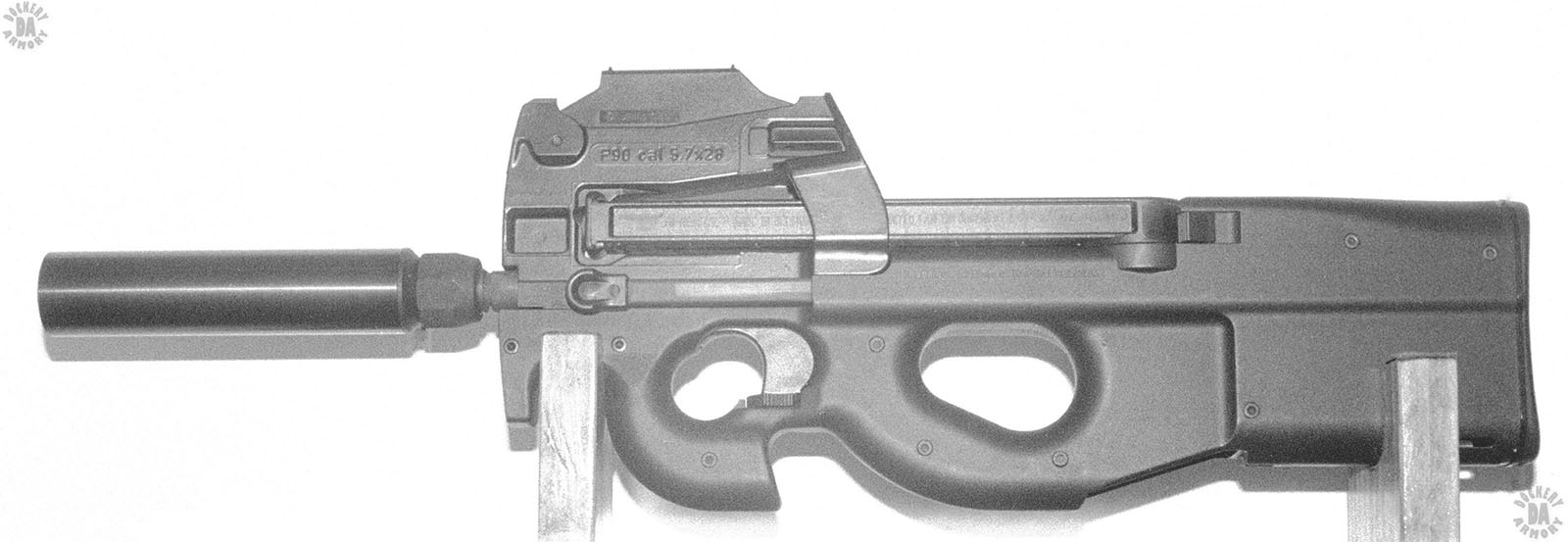

NAME – P90 Suppressed
COUNTRY OF ORIGIN – Belgium
DATE OF MANUFACTURE – 1990
CALIBER – 5.7x28mm
OVERALL LENGTH – 50 cm (19.7 in)
OVERALL LENGTH WITH SUPPRESSOR MOUNTED – 67.5 cm (26.57 in)
BARREL LENGTH – 26.3 cm (10.35 in)
SUPPRESSOR LENGTH – 20 cm (7.87 in)
SUPPRESSOR DIAMETER – 4 cm (1.57 in)
RIFLING (TYPE & TWIST) – 8 Grooves, Right-hand twist, 1 turn in 23.1 cm (9.09 in)
BULLET DIAMETER – 5.69 mm (0.224 in)
BULLET WEIGHT – 3.58 g (55 grains)
MUZZLE VELOCITY – 290 m/s (951 fps) with suppressor
MUZZLE ENERGY – 150 j (110 ft/lb)
WEIGHT (EMPTY) – 2.54 kg (5 lb 9.6 oz)
WEIGHT (LOADED) – 3.09 kg (6 lb 13 oz) loaded with 50 rounds Sb193 Subsonic
WEIGHT (LOADED) WITH SUPPRESSOR – 3.49 kg (7 lb 11.1 oz) loaded with 50 rounds Sb193 subsonic and suppressor
SUPPRESSOR WEIGHT – 0.40 kg (14.1 oz)
SUPPRESSOR MOUNTING – Collet clamps over flash hider
SUPPRESSOR DECIBLE REDUCTION – 30 db down from 153 db
SIGHTS – Integral 1x optical reflex sight
EFFECTIVE RANGE – 150 m (164 yards)
OPERATION – Blowback, fires from closed bolt
TYPE OF FIRE – Selective, semi and full automatic
RATE OF FIRE – 50 rpm semi, 150 rpm full automatic
CYCLIC ROF – 900 rpm
FEED DEVICE – 50-round horizontal translucent plastic box magazine, double column, 90 degree rotating single feed
FEED DEVICE WEIGHT (EMPTY) – 0.14 kg (4.9 oz)
FEED DEVICE WEIGHT (LOADED) – 0.55 kg (1 lb 3.4 oz) loaded with 50 rounds Sb193 Subsonic
BASIC LOAD – Four 50-round magazines (200 rounds)
LOAD WT – 2.2 kg (4 lb 13.6 oz)
MANUFACTURER – F.N Herstal S.A., Herstal, Belgium
STATUS – In production
SERVICE – Law enforcements and Security sales worldwide
