CODE – 02-041-986

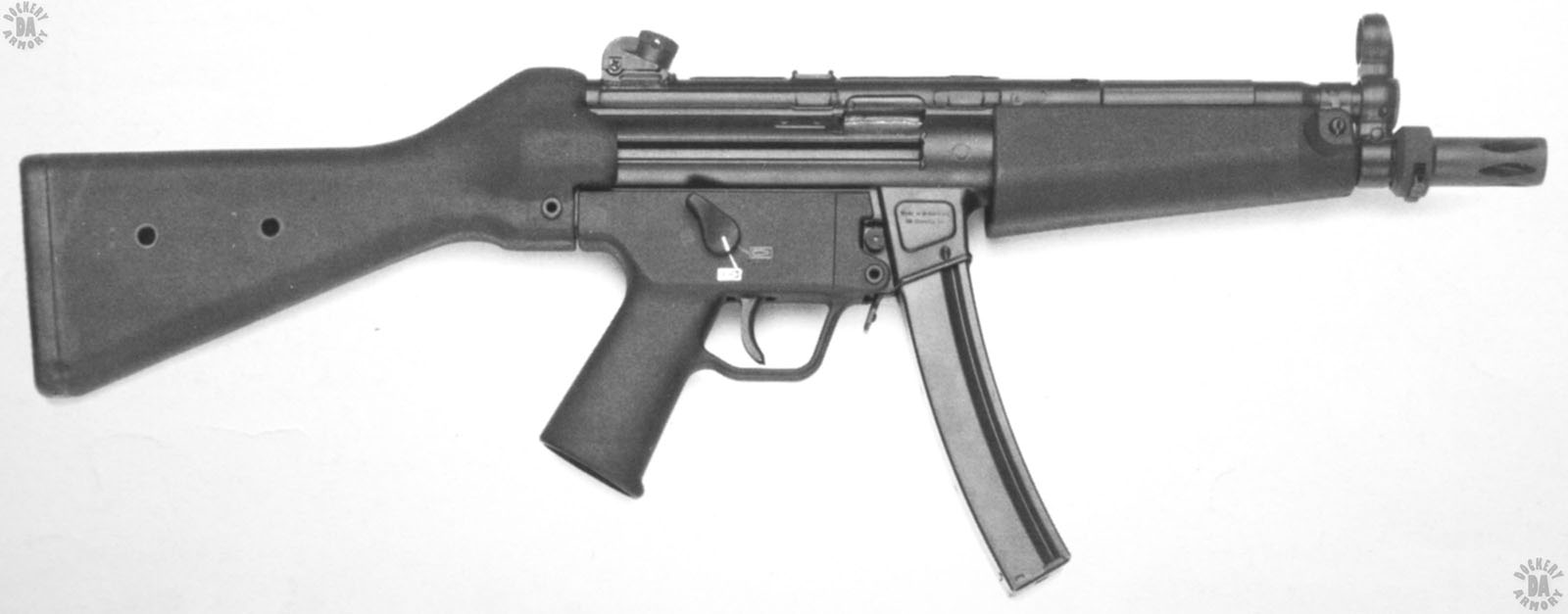

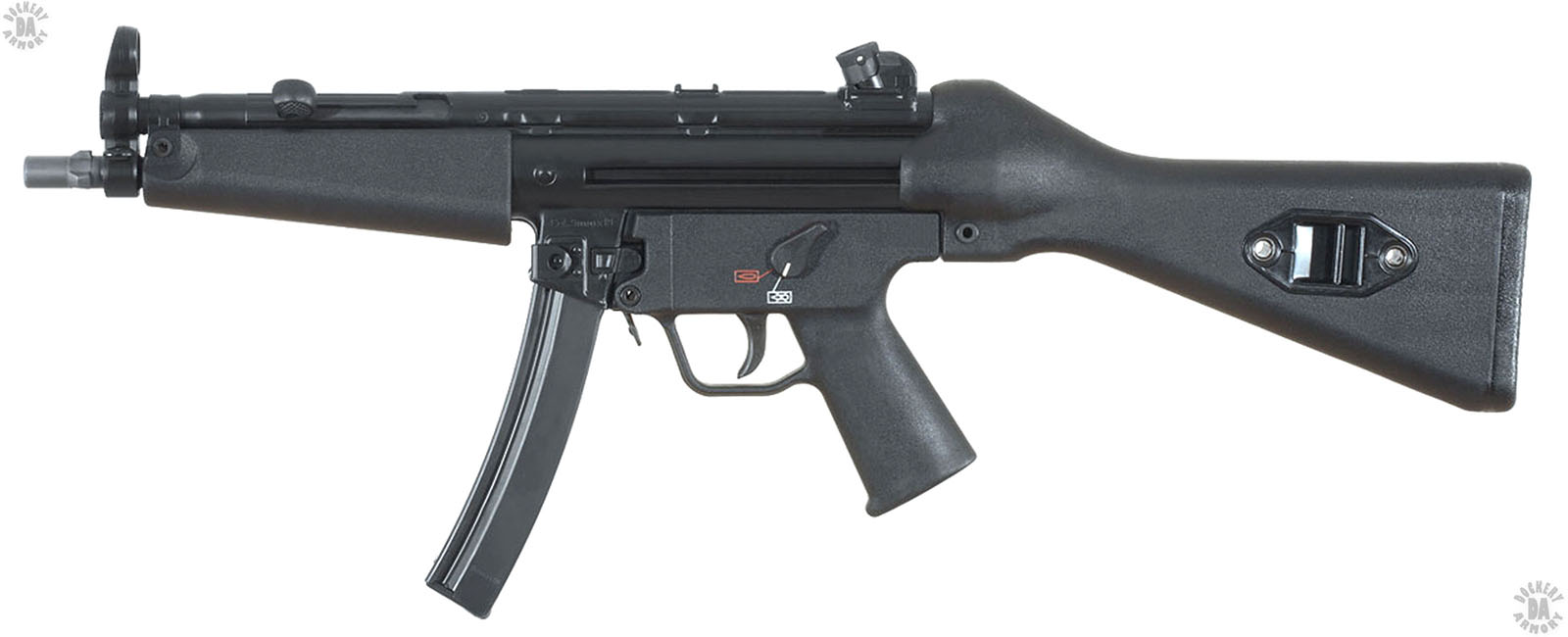

NAME – MP5SFA2

COMMON NAMES – MP5 Single Fire

COUNTRY OF ORIGIN – Germany

DATE OF MANUFACTURE – 1986

CALIBER – 9x19mm

OVERALL LENGTH – 71.1 cm (28 in) with flash hider

BARREL LENGTH – 22.5 cm (8.85 in)

RIFLING (TYPE & TWIST) – 4 Grooves, Right-hand twist, 1 turn in 25 cm (1 turn in 9.86 in)

BULLET DIAMETER – 9.02mm (0.355 in)

BULLET WEIGHT – 8.04 g (124 grain)

MUZZLE VELOCITY – 400 m/s (1312 fps)

MUZZLE ENERGY – 643 j (474 ft/lb)

WEIGHT (EMPTY) – 2.54 kg (5 lb 9.6 oz) with Flash Hider

WEIGHT (LOADED) – 3.07 kg (6 lb 12.3 oz) loaded with 30 rounds and Flash Hider

WEIGHT (FLASH HIDER) – 0.12 kg (4.4 oz)

SIGHTS – Open iron, adjustable, Front – Ring-protected fixed blade, Rear – Rotating vertical drum with 4 peep apertures of varying size, Adjustable for windage and elevation, Factory zeroed to 25 m (27 yards)

EFFECTIVE RANGE – 200 m (219 yards)

OPERATION – Roller-delayed blowback, fires from closed bolt, hammer fired

TYPE OF FIRE – Semiautomatic only

RATE OF FIRE – 40 rpm

FEED DEVICE – 15 or 30 round removable box magazine, double column, double feed

FEED DEVICE WEIGHT (EMPTY) – 15-round curved – 0.12 kg (4.23 oz), 30-round curved – 0.17 kg (6 oz)

FEED DEVICE WEIGHT (LOADED) – 15-round curved – 0.30 kg (10.6 oz), 30-round curved – 0.53 kg (1 lb 2.7 oz)

BASIC AMMUNITION LOAD – Three 30-round magazines (90 rounds)

LOAD WEIGHT – 1.59 kg (3 lb 8.1 oz)

MANUFACTURER – Heckler & Koch GmbH Oberndorf am Necker, Germany

STATUS – Production completed

SERVICE – Law enforcement
