CODE – 02-041-982

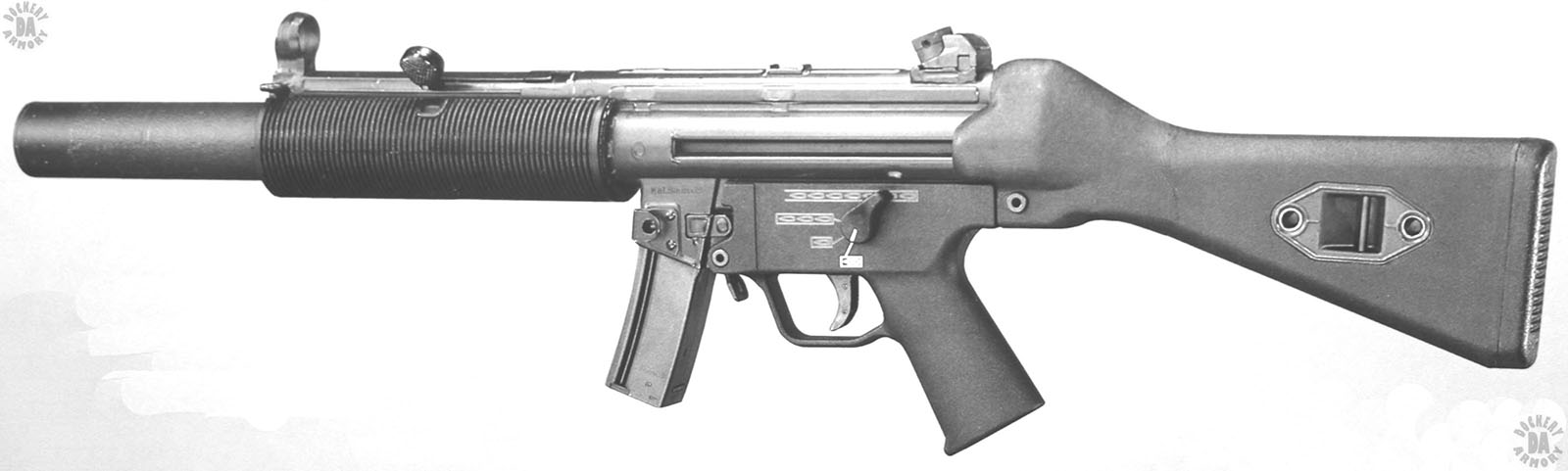

NAME – MP5SD5

NAME (NATIVE) – Maschinenpistole 5 Schalldämpfer 2 (Machine pistol 5 Silencer 2)

COUNTRY OF ORIGIN – Germany

DATE OF MANUFACTURE – 1982

CALIBER – 9x19mm

OVERALL LENGTH WITH SUPPRESSOR MOUNTED – 78 cm (30.7 in)

BARREL LENGTH – 14.6 cm (5.73 in)

SUPPRESSOR LENGTH – 30.2 cm (11.89 in)

SUPPRESSOR DIAMETER – 4 cm (1.57 in)

RIFLING (TYPE & TWIST) – 4 Grooves, Right-hand twist, 1 turn in 25 cm (1 turn in 9.86 in)

BULLET DIAMETER – 9.02mm (0.355 in)

BULLET WEIGHT – 8.04 g (124 grain)

MUZZLE VELOCITY – 285 m/s (935 fps)

MUZZLE ENERGY – 326 j (241 ft/lb)

WEIGHT (EMPTY) – 2.65 kg (5 lb 13.5 oz)

WEIGHT (LOADED) – 3.18 kg (7 lb 0.2 oz) with 30 rounds, curved magazine

SUPPRESSOR WEIGHT – 0.5 kg (1 lb 1.6 oz)

SUPPRESSOR MOUNTING – Integral with barrel/receiver, threaded to base of barrel

SUPPRESSOR OPERATION – Two-stage, expansion chamber, Angled 4-baffle assembly

SUPPRESSOR DECIBLE REDUCTION – 30 db down from 157 db

SIGHTS – Open iron, adjustable, Front – Ring-protected fixed blade, Rear – Rotating vertical drum with 4 peep apertures of varying size, Adjustable for windage and elevation, Factory zeroed to 25 m (27 yards)

EFFECTIVE RANGE – 135 m (150 yards)

OPERATION – Roller-delayed blowback, fires from closed bolt, hammer fired

TYPE OF FIRE – Selective, Semiautomatic/Three-round controlled burst/Full automatic

RATE OF FIRE – 40 rpm Semiautomatic, 75 rpm Three-round controlled burst, 120 rpm Full automatic

CYCLIC ROF – 650 rpm

FEED DEVICE – 15 or 30-round curved box magazine, Double column, Double feed

FEED DEVICE WEIGHT (EMPTY) – 15-round curved – 0.12 kg (4.23 oz), 30-round curved – 0.17 kg (6 oz)

FEED DEVICE WEIGHT (LOADED) – 15-round curved – 0.30 kg (10.6 oz), 30-round curved – 0.53 kg (1 lb 2.7 oz)

BASIC AMMUNITION LOAD – Six-30 round magazines (180 rounds)

LOAD WEIGHT – 3.18 kg (7 lb 0.2 oz)

MANUFACTURER – Heckler & Koch GmbH Oberndorf am Necker, Germany

STATUS – In production

SERVICE –
