CODE – 02-041-986

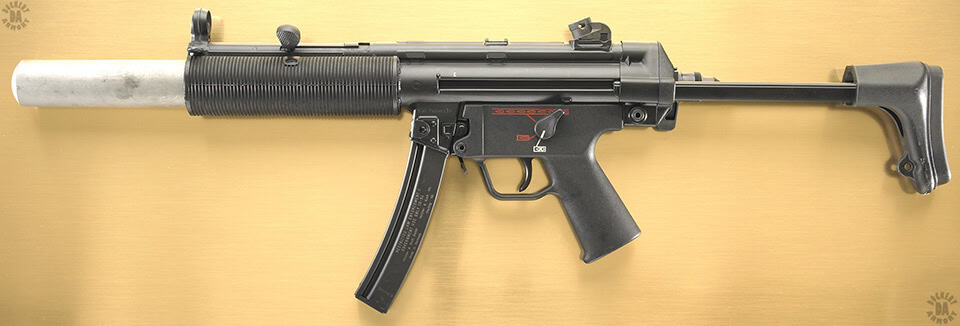

NAME – MP5SD-N
COUNTRY OF ORIGIN – Germany
DATE OF MANUFACTURE – 1986
CALIBER – 9x19mm
OVERALL LENGTH WITH SUPPRESSOR MOUNTED – 65.23 cm (25.68 in) Stock collapsed, 80.5 cm (31.69 in) Stock extended
BARREL LENGTH – 14.6 cm (5.73 in)
SUPPRESSOR LENGTH – 31.5 cm (12.4 in)
SUPPRESSOR DIAMETER – 4.14 cm (1.63 in)
RIFLING (TYPE & TWIST) – 4 Grooves, Right-hand twist, 1 turn in 25 cm (1 turn in 9.86 in)
BULLET DIAMETER – 9.02mm (0.355 in)
BULLET WEIGHT – 8.04 g (124 grain)
MUZZLE VELOCITY – 285 m/s (935 fps)
MUZZLE ENERGY – 326 j (241 ft/lb)
WEIGHT (EMPTY) – 3.55 kg (7 lb 13.2 oz)
WEIGHT (LOADED) – 4.08 kg (8 lb 15.9 oz) with 30 rounds
SUPPRESSOR WEIGHT – 1.02 kg (2 lb 4 oz)
SUPPRESSOR MOUNTING – Integral with barrel/receiver, threads onto base of barrel
SUPPRESSOR OPERATION – Two-stage, expansion chamber, 6 baffle assembly
SUPPRESSOR DECIBLE REDUCTION – 33 db down from 157 db
SIGHTS – Open iron, adjustable, Front – Ring-protected fixed blade, Rear – Rotating vertical drum with 4 peep apertures of varying size, Adjustable for windage and elevation, Factory zeroed to 25 m (27 yards)
EFFECTIVE RANGE – 135 m (148 yards)
OPERATION – Roller-delayed blowback, fires from closed bolt, hammer fired
TYPE OF FIRE – Selective, Semiautomatic and Full automatic
RATE OF FIRE – 40 rpm Semi, 100 rpm Full
CYCLIC ROF – 800 rpm
FEED DEVICE – 15 or 30-round curved box magazine, Double column, Double feed
FEED DEVICE WEIGHT (EMPTY) – 15-round curved – 0.12 kg (4.23 oz), 30-round curved – 0.17 kg (6 oz)
FEED DEVICE WEIGHT (LOADED) – 15-round curved – 0.30 kg (10.6 oz), 30-round curved – 0.53 kg (1 lb 2.7 oz)
BASIC AMMUNITION LOAD – Six-30 round magazines (180 rounds)
LOAD WEIGHT – 3.18 kg (7 lb 0.2 oz)
MANUFACTURER – Heckler & Koch GmbH Oberndorf am Necker, Germany
STATUS – In production
SERVICE – US Navy Special Operations Forces. Commercial sales.

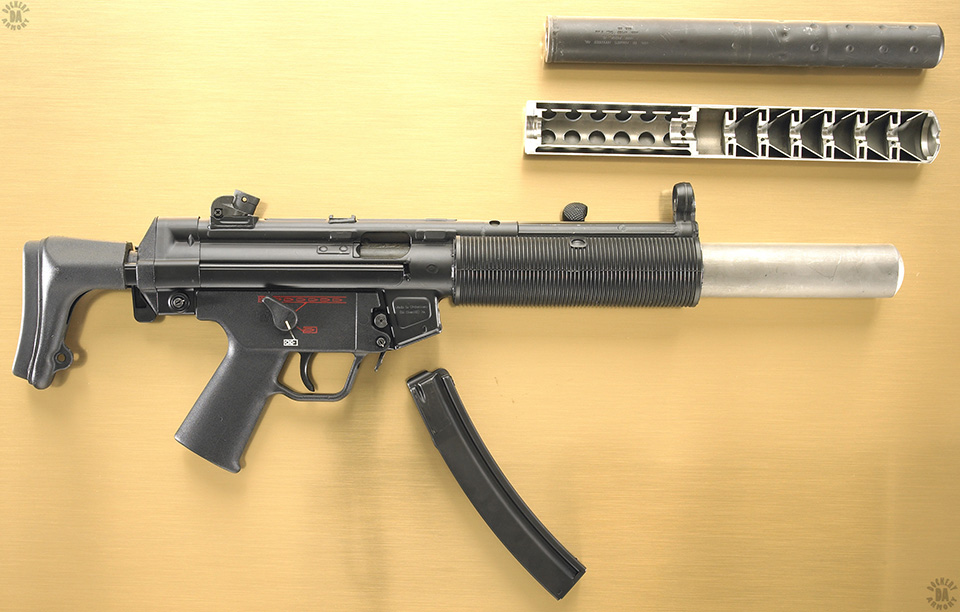

Stainless steel can
