CODE – 02-041-984

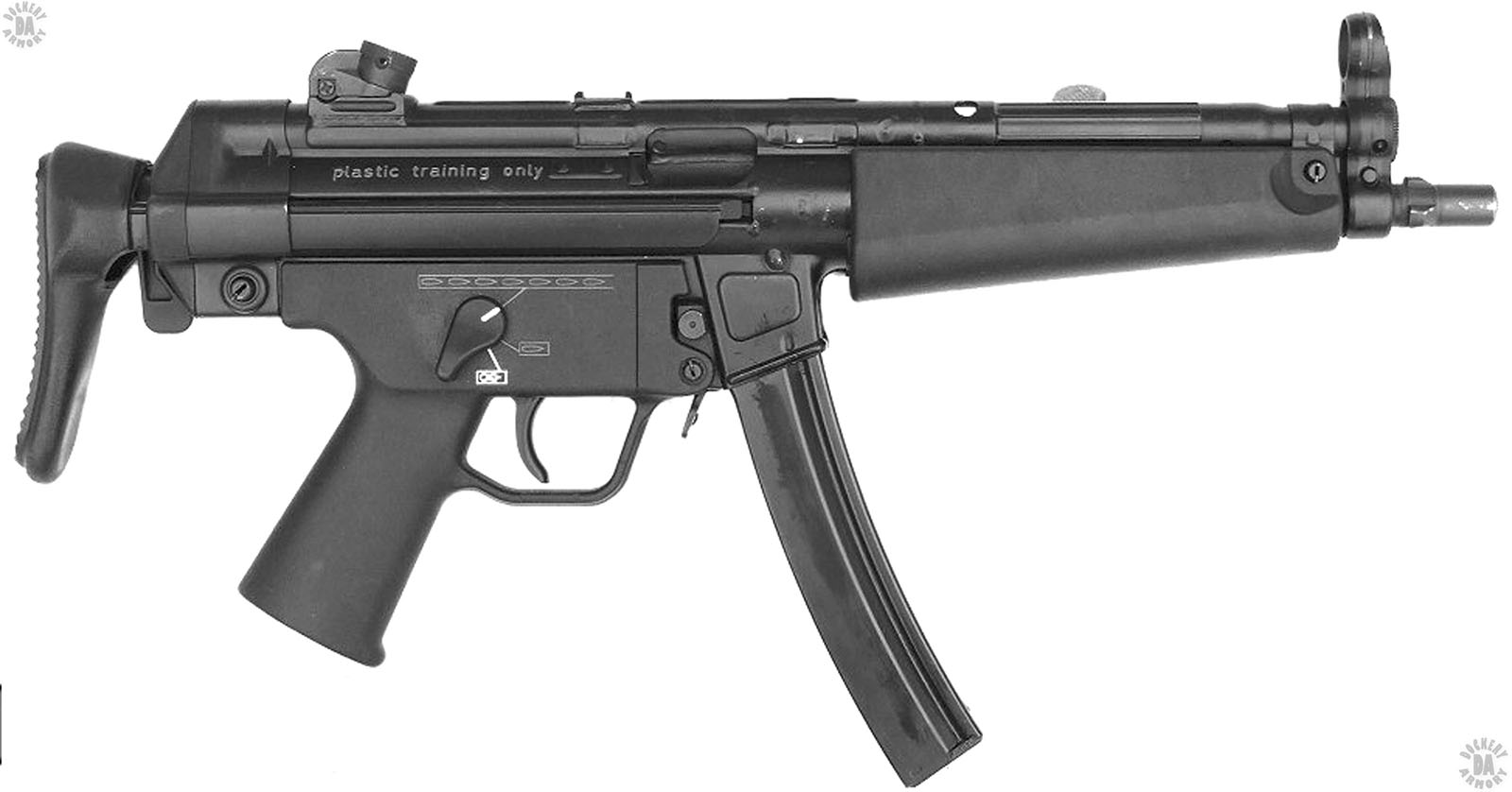

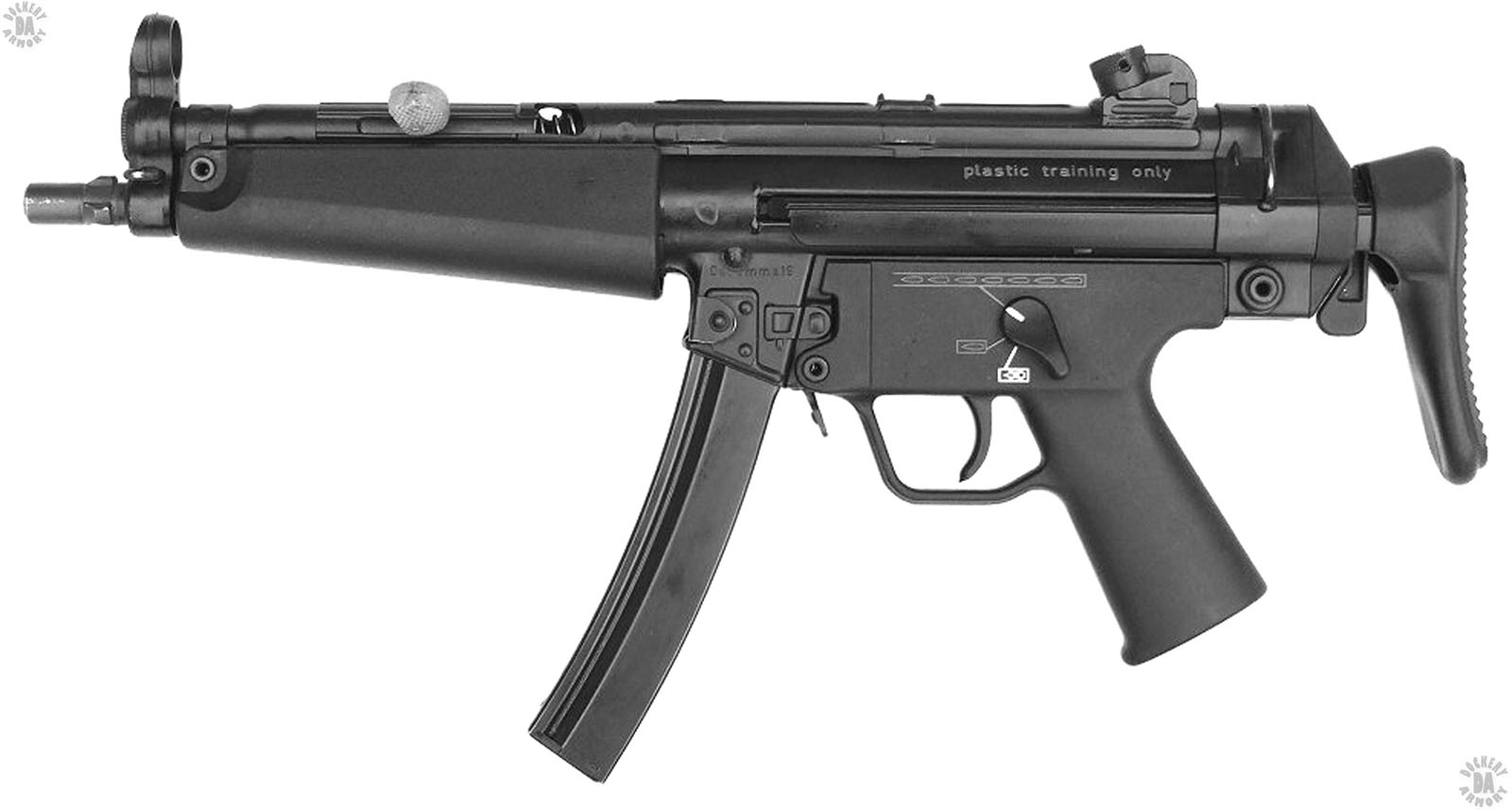

NAME – MP5A5 PT

COUNTRY OF ORIGIN – Germany

DATE OF MANUFACTURE – 1984

CALIBER – 9x19mm Plastic Training

OVERALL LENGTH – 49 cm (19.3 in) Stock collapsed, 66 cm (26 in) Stock extended

BARREL LENGTH – 22.5 cm (8.85 in)

RIFLING (TYPE & TWIST) – 4 Grooves, Right-hand twist, 1 turn in 25 cm (1 turn in 9.86 in)

BULLET DIAMETER – 9.02 mm (0.355 in)

BULLET WEIGHT – 0.42 g (6.48 grains)

MUZZLE VELOCITY – 410 m/s (1345 fps)

MUZZLE ENERGY – 35 j (26 ft/lb)

WEIGHT (EMPTY) –2.88 kg (6 lb 5.6 oz)

WEIGHT (LOADED) – 3.12 kg (6 lb 14.1 oz) with 30 rounds, curved magazine

SIGHTS – Open iron, adjustable, Front – Ring-protected fixed blade, Rear – Rotating vertical drum with 4 peep apertures of varying size, Adjustable for windage and elevation, Factory zeroed to 25 m (27 yards)

EFFECTIVE RANGE – 8 to 15 m (9 to 16 yards), Maximum range 125 m (137 yards)

OPERATION – Simple blowback, fires from closed bolt, hammer fired

TYPE OF FIRE – Selective, Semiautomatic/Three-round controlled burst/Full automatic

RATE OF FIRE – 40 rpm Semiautomatic, 75 rpm Three-round controlled burst, 120 rpm Full automatic

CYCLIC ROF – 700 rpm

FEED DEVICE – 15 or 30-round curved box magazine, Double column, Double feed

FEED DEVICE WEIGHT (EMPTY) – 15-round curved – 0.12 kg (4.23 oz), 30-round curved – 0.17 kg (6 oz)

FEED DEVICE WEIGHT (LOADED) – 15-round curved – 0.15 kg (5.3 oz). 30-round curved – 0.24 kg (8.5 oz)

BASIC AMMUNITION LOAD – Three-30 round magazines (90 rounds)

LOAD WEIGHT – 0.72 kg (1 lb 9.4 oz)

MANUFACTURER – Heckler & Koch GmbH Oberndorf am Necker, Germany

STATUS – No longer in production

SERVICE – Military, law enforcement, commercial sales
