CODE – 02-041-985

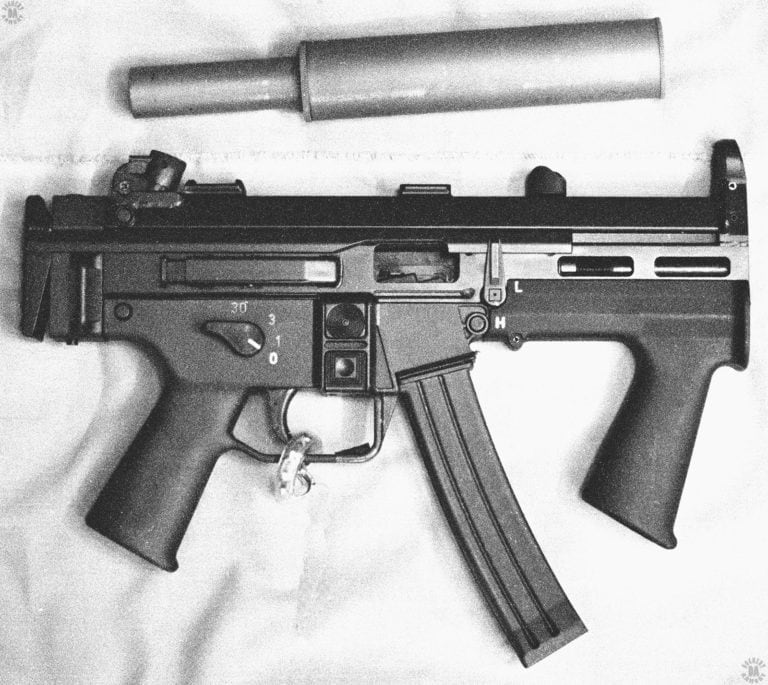

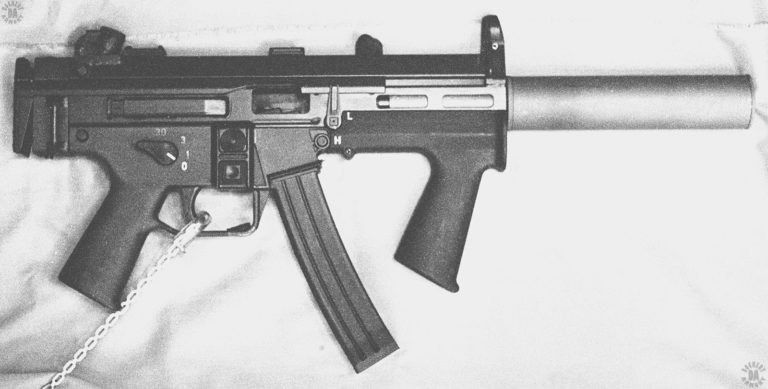

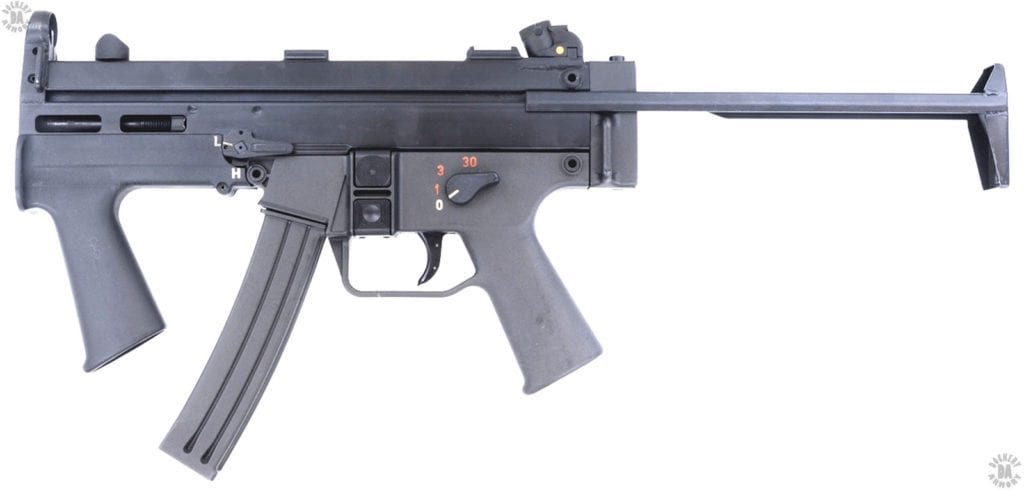

NAME – MP2000

COUNTRY OF ORIGIN – Germany

DATE OF MANUFACTURE – 1985

CALIBER – 9x19mm

OVERALL LENGTH – 38.7 cm (15.24 in) with stock collapsed, 56.6 cm (22.28 in) with stock extended

OVERALL LENGTH WITH SUPPRESSOR MOUNTED – 65.7 cm (25.87 in) with stock collapsed, Suppressor mounted, 83.5 cm (32.87 in) with stock extended, Suppressor mounted

BARREL LENGTH – 14.9 cm (5.87 in)

SUPPRESSOR LENGTH – 27.3 cm (10.74 in)

SUPPRESSOR DIAMETER – 4.1 cm (1.61 in)

RIFLING (TYPE & TWIST) –   6-Groove, Right-hand twist, 1 turn in 25 cm (1 turn in 9.86 in)

BULLET DIAMETER – 9.02 mm (0.355 in)

BULLET WEIGHT – 8 g (124 grains)

MUZZLE VELOCITY – 366 m/s (1,200 fps) with gas lever set to “H” (High)

285 m/s (935 fps) with gas lever set to “L” (Low)

MUZZLE ENERGY – 538 j (397 ft/lb) with gas lever set to “H” (High)

326 j (241 ft/lb) with gas lever set to “L” (Low)

WEIGHT (EMPTY) – 2.78 kg (6 lb 2 oz)

WEIGHT (LOADED) – 3.22 kg (7 lb 1.6 oz) with 30 rounds

WEIGHT (LOADED) WITH SUPPRESSOR – 4.01 kg (8 lb 13.5 oz)

SUPPRESSOR WEIGHT – 0.79 kg (1 lb 11.9 oz)

SUPPRESSOR MOUNTING – Threads over barrel, threads at breech end of barrel

SUPPRESSOR OPERATION – Three-stage, expansion chamber, multiple baffle stack, muzzle expansion chamber

SUPPRESSOR DECIBLE REDUCTION – db down from db with gas lever set to “H” (High)

db down from db with gas lever set to “L” (Low)

SIGHTS – Adjustable, Rear sight – aperture, Front sight – post, sights have luminous inserts, adjustable for low or high velocity firing

EFFECTIVE RANGE – 200 m (219 yards)

OPERATION – Blowback, fires from closed bolt

TYPE OF FIRE – Selective, Semi, 3-round burst, and Full automatic

RATE OF FIRE – 40 rpm Semiautomatic, 120 rpm full automatic

CYCLIC ROF – 875 rpm

FEED DEVICE – 30-round polycarbonate box magazine, double column, double feed

FEED DEVICE WEIGHT (EMPTY) – 0.080 kg (2.82 oz)

FEED DEVICE WEIGHT (LOADED) – 0.44 kg (15.52 oz)

BASIC LOAD – six – 30 round magazines (180 rounds)

LOAD WT – 2.64 kg (5 lb 13 oz)

MANUFACTURER – Heckler & Koch GmbH Oberndorf am Necker, Germany

STATUS – Prototype

SERVICE – Evaluation
