07-040-942

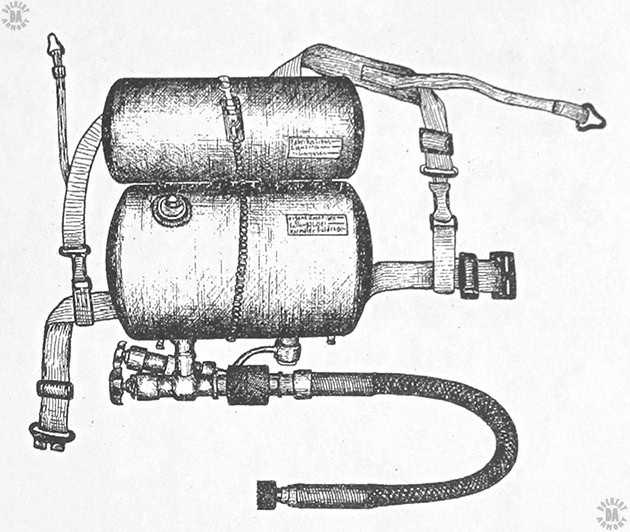

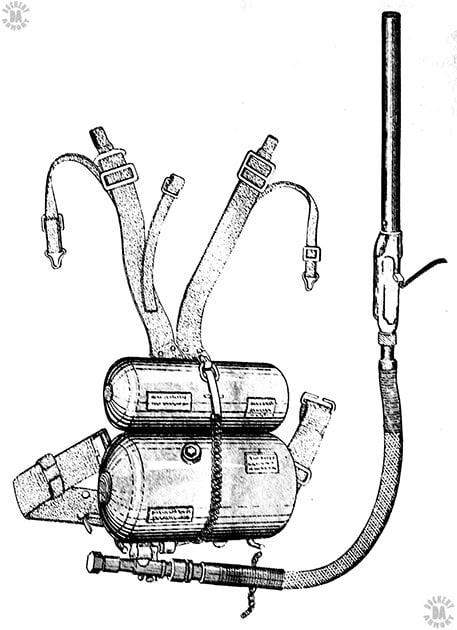

NAME – Model 41 Flamethrower with Jet Cartridge
NAME (NATIVE) – Fm. W. 41, Flammenwerfer 41 mit Strahlpatrone [Flamethrower 41 with jet cartridge]
COMMON NAMES – Model 42 Flamethrower
COUNTRY OF ORIGIN – German
DATE OF MANUFACTURE – 1942
LENGTH (FLAME GUN) – 89.7 cm (35.3 in)
LENGTH (HOSE) – 86.4 cm (34 in)
HEIGHT (TANK GROUP) – 36.8 cm (14.5 in)
WIDTH (TANK GROUP) – 34 cm (13.5 in)
DEPTH (TANK GROUP) – 22.9 cm (9 in)
FUEL TANK DIAMETER – 22.9 cm (9 in)
PROPELLANT TANK DIAMETER – 14 cm (5.5 in)
WEIGHT (EMPTY) – 10.55 kg (23 lb 4 oz)
WEIGHT (LOADED) – 18.37 (40.5 lb)
WEIGHT (FLAME GUN) – 2.49 kg (5 lb 8 oz)
TYPE OF IGNITION – 10-round tubular magazine of 9mm Centerfire Ignition (Jet) cartridges (Zündpatrone [ignition cartridge])
CONTINUOUS DURATION OF FIRE – 10 to 12 seconds, fired in 2 to 8 bursts
PROPELLANT – Nitrogen
PROPELLANT PRESSURE – 2,537 kPa (368 psi)
FUEL – Flammöl Nr. 19 (a mixture of light and heavy tar oils)
FUEL CAPACITY – 7.5 l (1.98 US Gallons)
EFFECTIVE RANGE – 23 m (25 yards)
MAXIMUM RANGE – 35 m (38 yards)
FEED DEVICE – Single tank of fuel
FEED DEVICE WEIGHT – 7.82 kg (17 lb 4 oz)
STATUS – Obsolete
SERVICE – German Wehrmacht
