CODE – 02-136-958

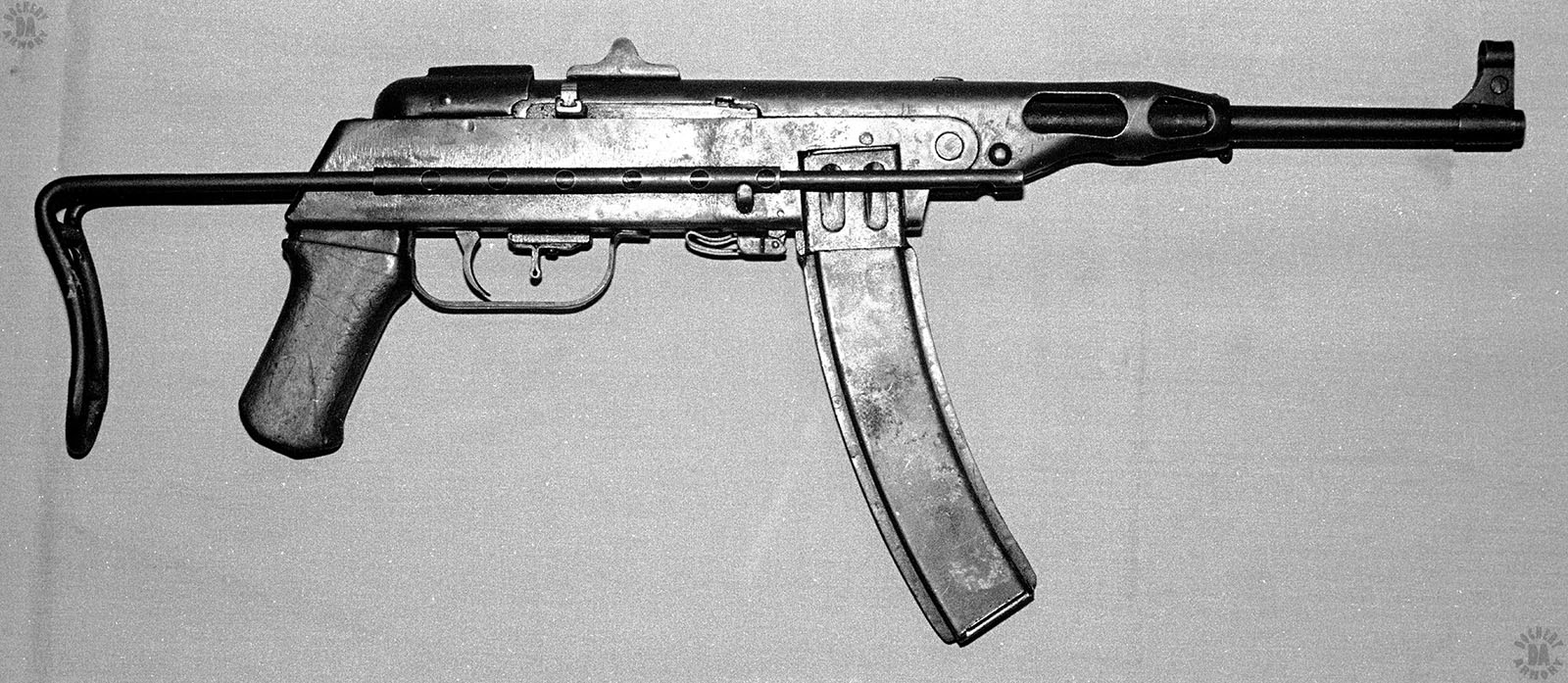

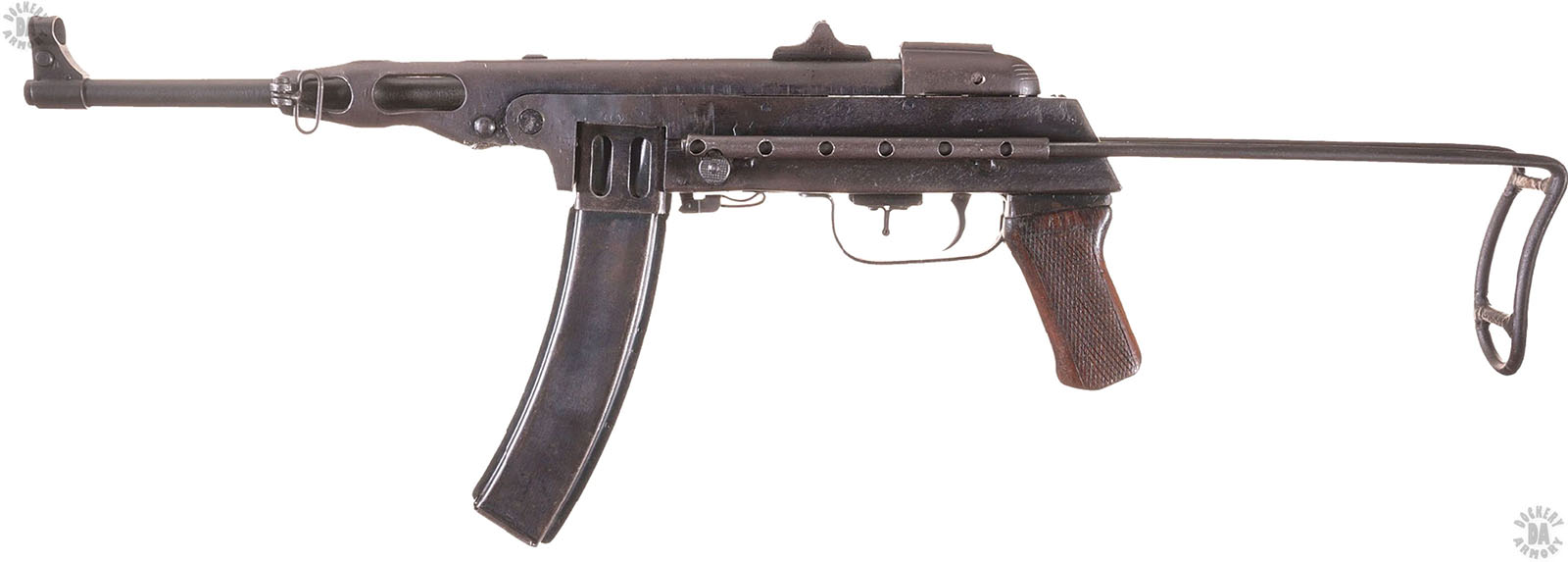

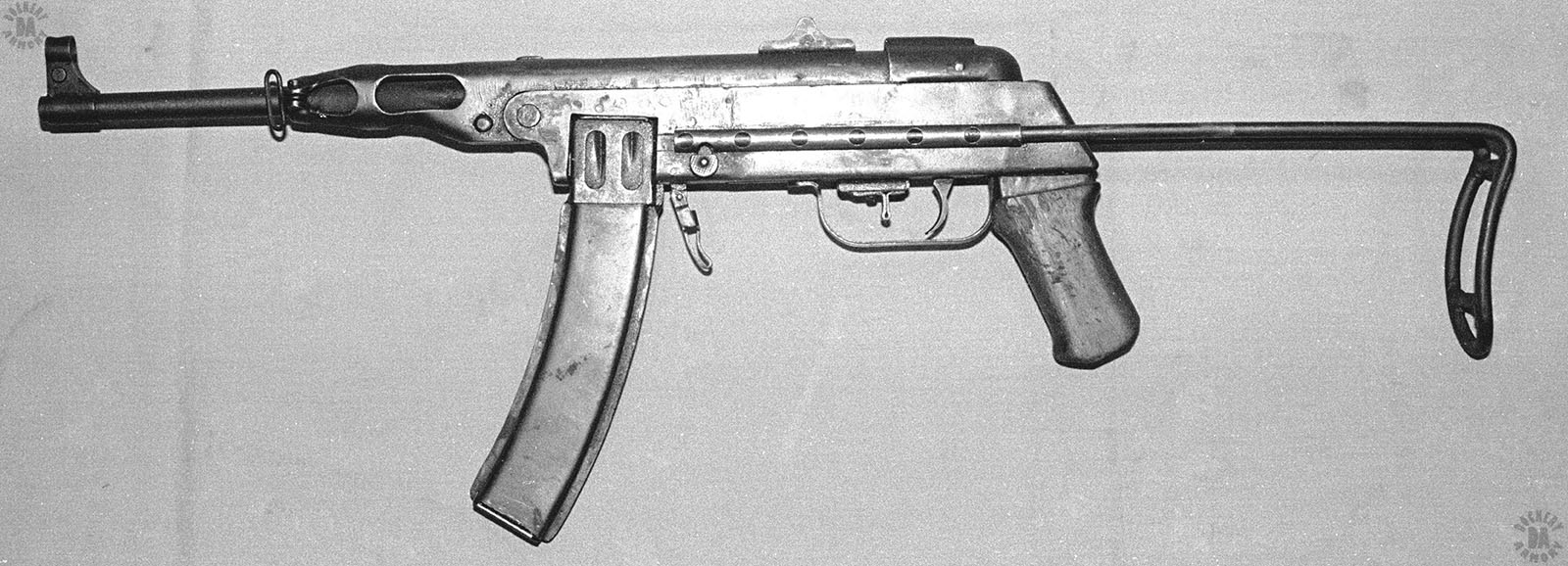

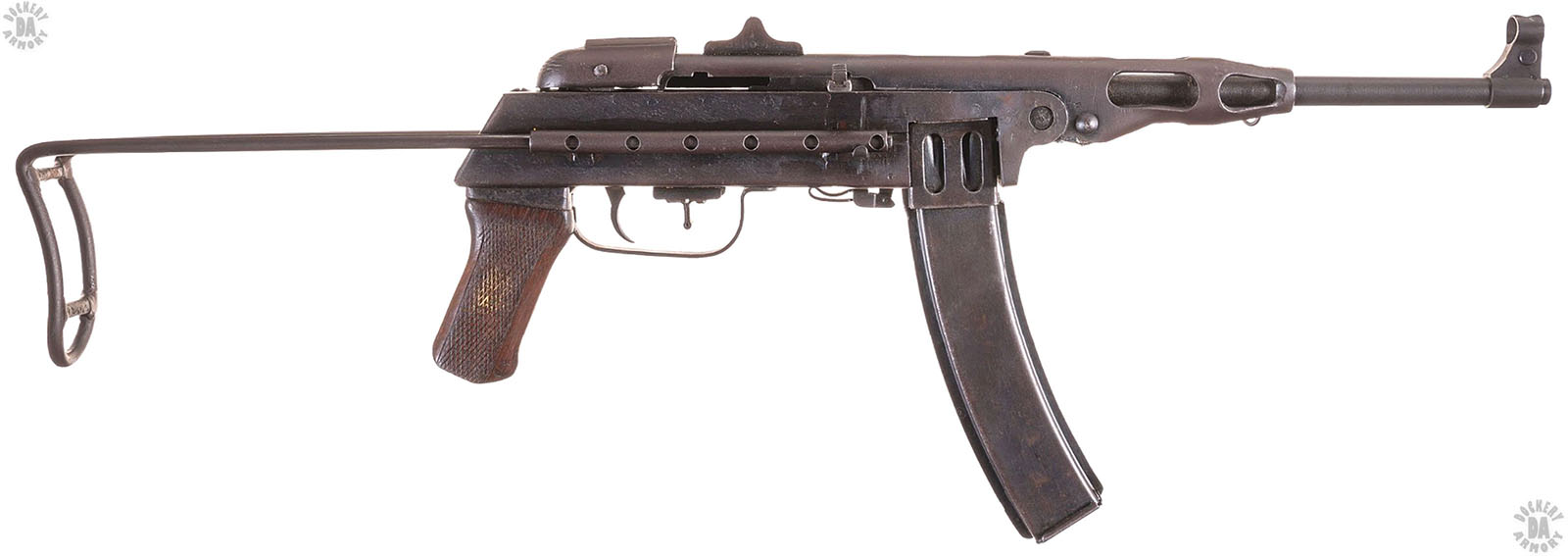

NAME – K-50M

COUNTRY OF ORIGIN – Vietnam

DATE OF MANUFACTURE – 1958

CALIBER – 7.62x25mm Type P

OVERALL LENGTH – 57.3 cm (22.56 in) Stock collapsed, 75.6 cm (29.75 in) Stock extended

BARREL LENGTH – 26.9 cm (10.6 in)

RIFLING (TYPE & TWIST) – 4 grooves, Right-hand twist, 1 turn in 24 cm (9.45 in)

BULLET DIAMETER – 7.90 mm (0.311 in)

BULLET WEIGHT – 5.64 g (87 grains)

MUZZLE VELOCITY – 488 m/s (1600 fps)

MUZZLE ENERGY – 671 j (495 ft/lb)

WEIGHT (EMPTY) – 3.4 kg (7 lb 8 oz)

WEIGHT (LOADED) – 4.08 kg (9 lb) loaded with 35 rounds

SIGHTS – Open, Iron, adjustable, Front sight – Blade, Rear sight Flip-type with apertures for 100 and 200 meters (109 and 219 yards)

EFFECTIVE RANGE – 150 m (164 yards)

OPERATION – Blowback, fires from open bolt

TYPE OF FIRE – Selective, Semi and Full automatic

RATE OF FIRE – 45 rpm Semi, 95 rpm Full Automatic

CYCLIC ROF – 700 rpm

FEED DEVICE – 35 round box magazine, double column, single feed

FEED DEVICE WEIGHT (EMPTY) – 0.30 kg (10.6 oz)

FEED DEVICE WEIGHT (LOADED) – 0.68 kg (1 lb 8 oz)

BASIC AMMUNITION LOAD – Four 35-round magazines (140 rounds)

LOAD WEIGHT – 2.72 kg (6 lb)

MANUFACTURER – No single location, manufacturers included jungle workshops

STATUS – Obsolete

SERVICE – North Vietnamese military and Viet Cong
