06-132-979

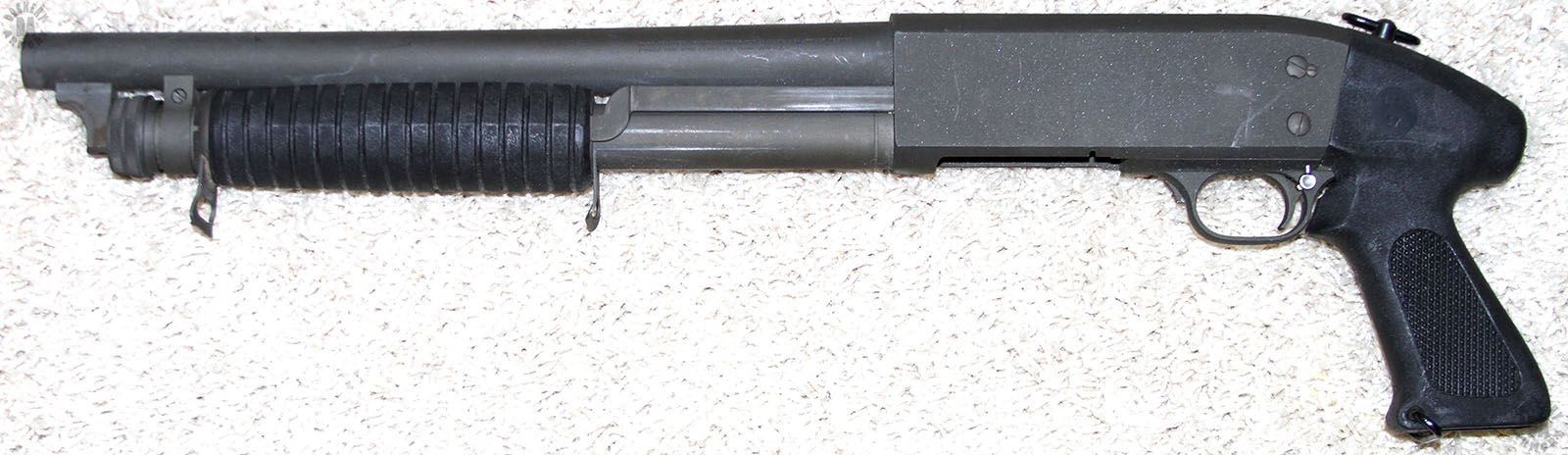

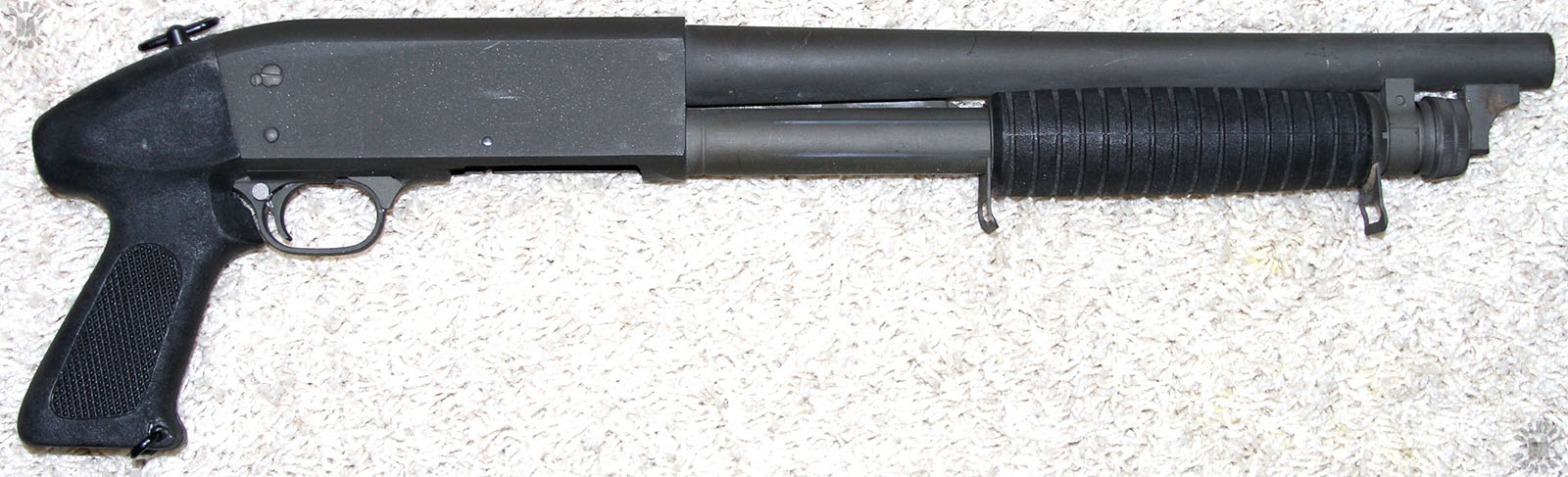

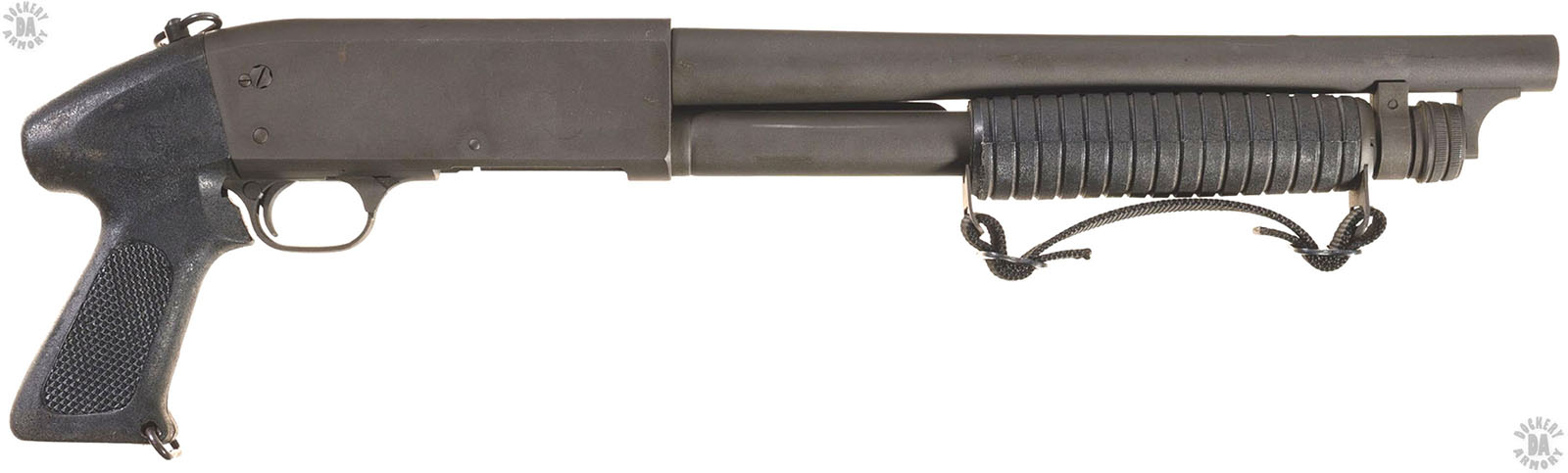

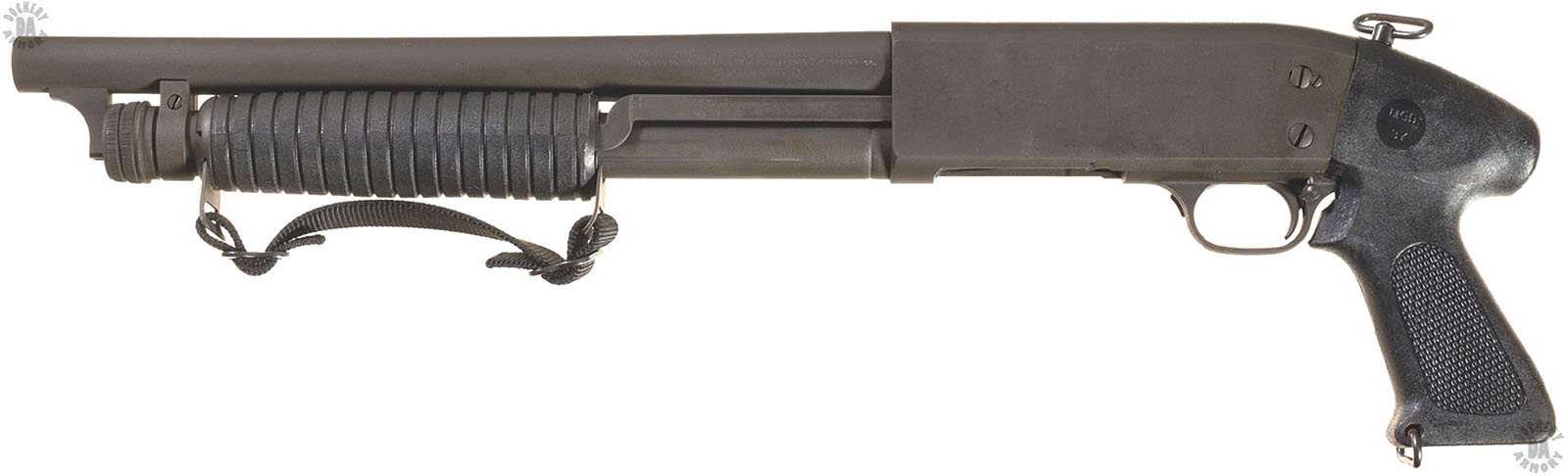

NAME -Ithaca Stakeout – 18.5x70mmR (12 Ga 2 3/4 in)

TYPE – Slide-action repeater

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1979

CALIBER – 18.5x70mmR (12 Ga 2 3/4 in)

OVERALL LENGTH – 57.2 cm (22.5 in)

BARREL LENGTH –33.7 cm (13.25 in)

RIFLING (TYPE & TWIST) – Smoothbore

CHOKE – Cylinder bore

LOAD – 00 Buckshot (Paper case)

LOAD WEIGHT – 34.2 g (522 grains)

PELLET DIAMETER – 8.6 mm (0.34 in)

NUMBER OF PELLETS – 9

WEIGHT OF PELLET – 3.8 g (58 grains)

MUZZLE VELOCITY – 315 m/s (1035 fps)

MUZZLE ENERGY – 1684 j (1242 ft/lb)

MUZZLE ENERGY PER PELLET – 187 j (138 ft/lb)

WEIGHT (EMPTY) – 2.26 kg (4 lb 15.7 oz)

WEIGHT (LOADED) – 2.52 kg (5 lb 8.9 oz) with 4 rounds in magazine+ 1 in chamber

SIGHTS – Front sight bead

EFFECTIVE RANGE – 23 m (25 yards)

OPERATION – Manual, slide-action

TYPE OF FIRE – Repeating

RATE OF FIRE – 16 rpm

FEED DEVICE – 4 round tubular underbarrel magazine

FEED DEVICE WEIGHT (LOADED) – 0.26 kg (9.2 oz) 5 rounds

BASIC LOAD – 10 rounds

LOAD WEIGHT – 0.52 kg (1 lb 2.3 oz)

MANUFACTURER – Ithaca Gun Company, Ithaca, New York

STATUS – Out of production

SERVICE – Commercial sales, some law enforcement use
