06-132-979

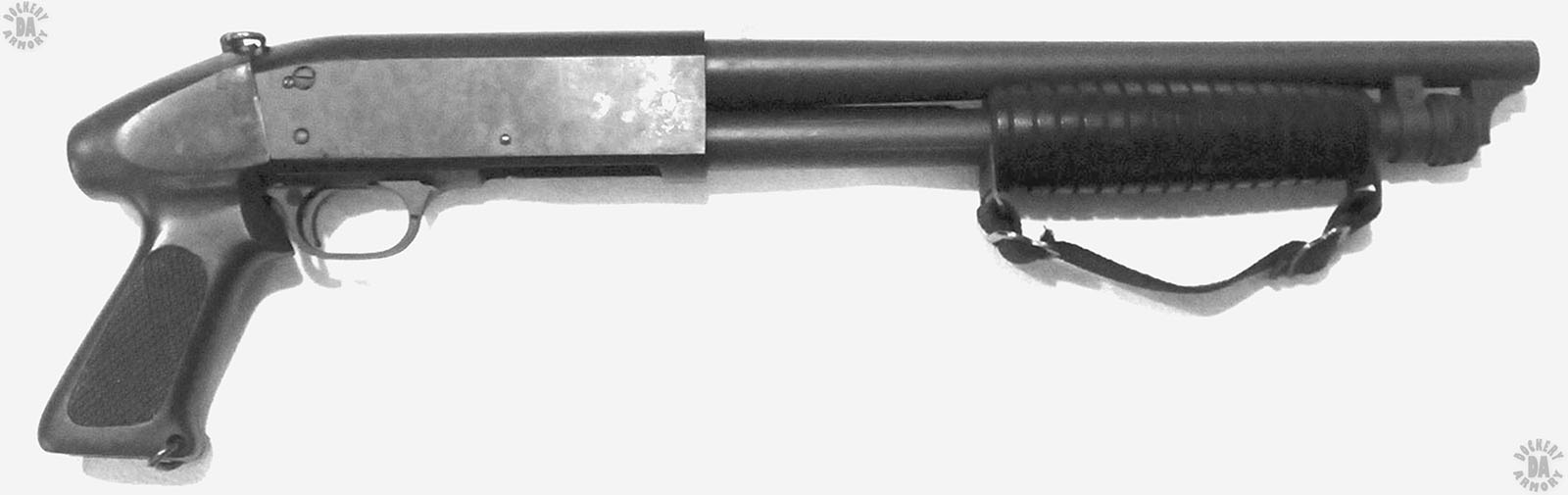

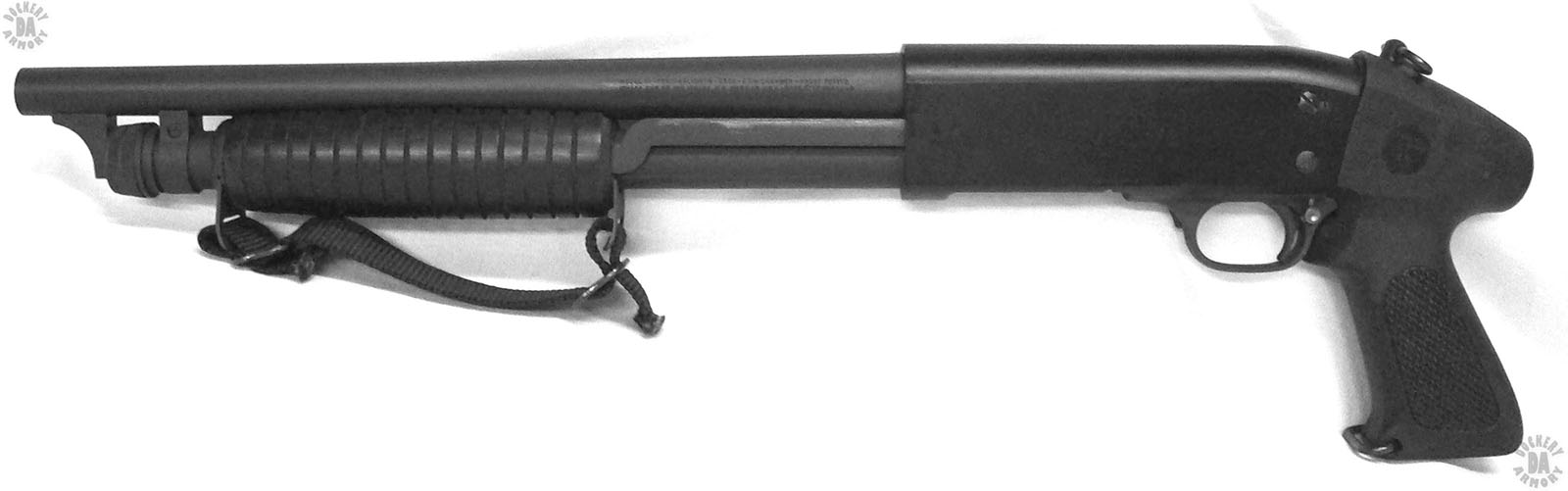

NAME -Ithaca Stakeout – 15.6x70mmR (20 Gauge 2 ¾ Inch)
TYPE – Slide-action repeater
COUNTRY OF ORIGIN – USA
DATE OF MANUFACTURE – 1979
CALIBER – 15.6x70mmR (20 Gauge 2 ¾ Inch)
OVERALL LENGTH – 57.2 cm (22.5 in)
BARREL LENGTH –33.7 cm (13.25 in)
RIFLING (TYPE & TWIST) – Smoothbore
CHOKE – Cylinder bore
LOAD – #3 Buckshot
LOAD WEIGHT – 29.8 g (460 grains)
PELLET DIAMETER – 1.35 mm (0.25 in)
NUMBER OF PELLETS – 20
WEIGHT OF PELLET – 1.49 g (23 grains)
MUZZLE VELOCITY – 299 m/s (980 fps)
MUZZLE ENERGY – 1330 j (981 ft/lb)
MUZZLE ENERGY PER PELLET – 67 j (49 ft/lb)
WEIGHT (EMPTY) – 1.58 kg (3 lb 7.7 oz)
WEIGHT (LOADED) –1.78 kg (3 lb 14.8 oz) with 4 rounds in magazine+ 1 in chamber
SIGHTS – Front sight bead
EFFECTIVE RANGE – 23 m (25 yards)
OPERATION – Manual, slide-action
TYPE OF FIRE – Repeating
RATE OF FIRE – 16 rpm
FEED DEVICE – 4 round tubular underbarrel magazine
FEED DEVICE WEIGHT (LOADED) – 0.20 kg (7 oz) 5 rounds
BASIC LOAD – 10 rounds
LOAD WEIGHT – 0.4 kg (14 oz)
MANUFACTURER – Ithaca Gun Company, Ithaca, New York
STATUS – Out of production
SERVICE – Commercial sales, some law enforcement use
