CODE 04-041-989

NAME – HK LMG 11

COUNTRY OF ORIGIN – Germany

DATE OF MANUFACTURE – @1989

CALIBER – 4.73×33 DM11 Caseless

OVERALL LENGTH – Less than 90 cm (35.43 in)

BARREL LENGTH – @ 54 cm (21.26in)

RIFLING (TYPE & TWIST) – Polygonal, Right-hand twist, Progressive, 1 turn in 15.5 cm (6.1 in) at muzzle

LOAD – DM11 Spitzer-pointed full metal jacketed ball

BULLET DIAMETER – 4.73mm (0.186 in)

BULLET WEIGHT – 3.25 g (51.1 grains)

MUZZLE VELOCITY – 930 m/s (3,051 fps)

MUZZLE ENERGY – 1,432 j (1,056 ft/lb)

WEIGHT (EMPTY) – Less than 5 kg (11 lb)

WEIGHT (LOADED) – Less than 7 kg (15 lb 7 oz) loaded with 300 rounds DM11 Ball

TYPE OF MOUNT – Hand-held, shoulder fired

SIGHTS – Integrated optical sight

OPTICAL SIGHT MAGNIFICATION – 1 Power

OPTICAL SIGHT FIELD OF VIEW – 11.25 degrees – 5.1 m @ 100 m (60 ft @100 yds) 200 mil

OPTICAL SIGHT ADJUSTMENTS – 300 to 600 meters in 100 m increments

EFFECTIVE RANGE – 400 m

OPERATION – recoil, fires from closed bolt

TYPE OF FIRE – Selective, semi and full automatic

RATE OF FIRE – 100 to 150 rpm

CYCLIC ROF – Less than 600 rpm

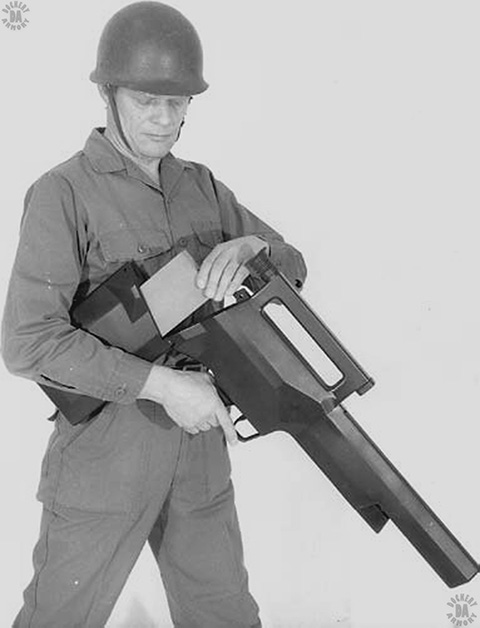

FEED DEVICE – 300 round internal box magazine, Disposable ammunition loading container

FEED DEVICE WEIGHT (EMPTY) – 300 round 4.73x33mm DM 11 – 1.55 kg (3 lb 7 oz)

FEED DEVICE CONTAINER (EMPTY) – 1.45 kg (3 lb 3 oz)

FEED DEVICE WEIGHT (LOADED) – 3 kg (6 lb 10 oz)

BASIC AMMUNITION LOAD – Three magazine loads (900 rounds)

LOAD WEIGHT – 9 kg (19 lb 13 oz)

MANUFACTURER – Heckler & Koch GmbH, Oberndorf/Neckar, Germany

STATUS – Concept evaluation

SERVICE – Project cancelled
