06-132-967

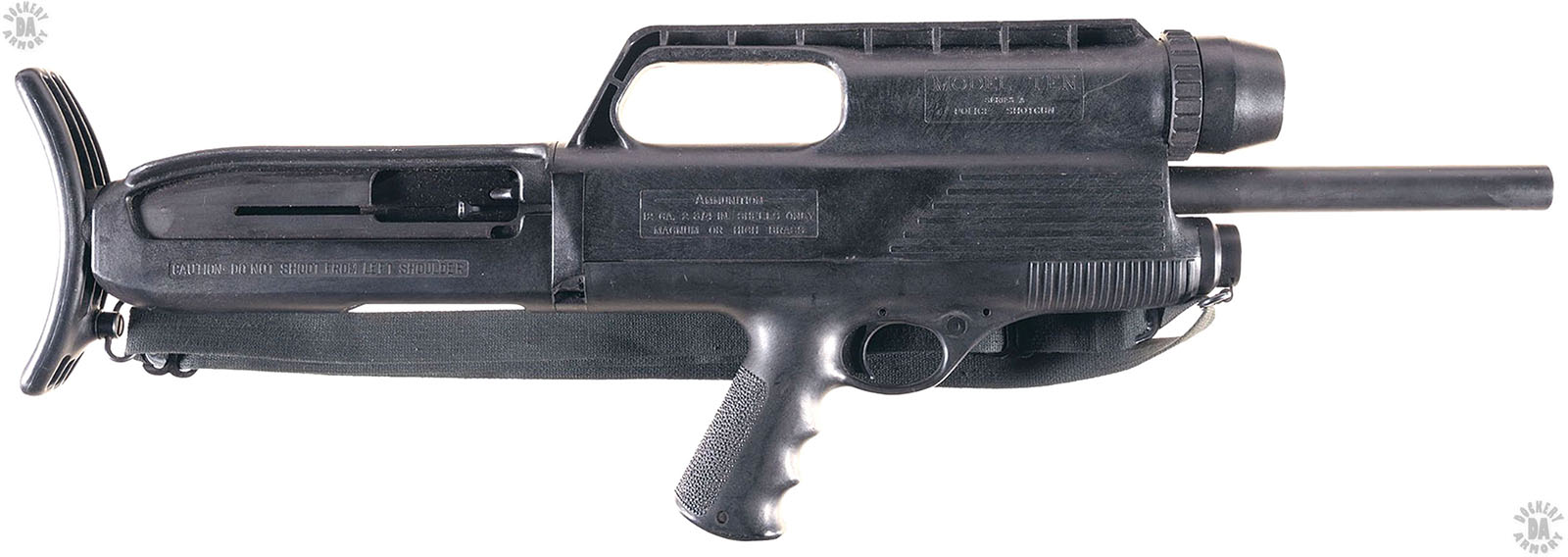

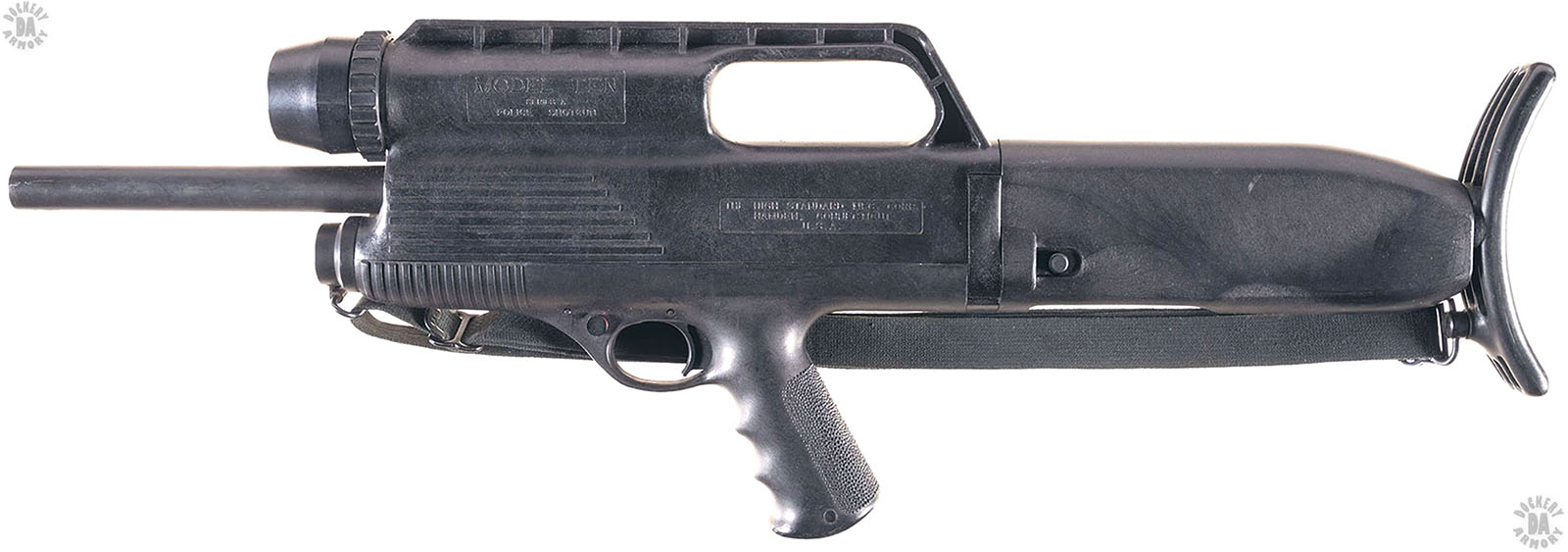

NAME – High Standard Model 10 Series A Police shotgun

COMMON NAMES – High Standard M10A

TYPE – Semiautomatic bullpup shotgun

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1967

CALIBER – 18.5x70mm (12 Gauge 2 ¾ inch)

OVERALL LENGTH – 68.8 cm (27.1 in)

BARREL LENGTH – 46 cm (18.1 in)

RIFLING OR CHOKE (TYPE & TWIST) – Smoothbore, Cylinder bore choke

LOAD – Magnum 00 Buckshot

BULLET (PELLET) DIAMETER – 8.4 mm (0.33 in)

BULLET (PELLET) WEIGHT – 3.5 g (54 grains)

NUMBER OF PELLETS – 12

MUZZLE VELOCITY – 366 m/s (1200 fps)

MUZZLE ENERGY – 2818 j (2072 ft/lbs)

MUZZLE ENERGY PER PELLET – 235 j (173 ft/lbs)

WEIGHT (EMPTY) – 3.39 kg (7 lb 7.7 oz) w/o batteries

WEIGHT (LOADED) – 3.97 kg (8 lb 12 oz) with 5 rounds, sling, and 2 D-cell batteries.

SIGHTS – None, flat aiming plain along top of flashlight/handle assembly

EFFECTIVE RANGE – 32 m (35 yards)

OPERATION – Gas operated

TYPE OF FIRE – Semiautomatic

RATE OF FIRE – 15 rpm, 5 rounds in 3 seconds

FEED DEVICE – Four-round tubular underbarrel magazine, 5 rounds with one in chamber

FEED DEVICE WEIGHT (LOADED) – 0.27 kg (9.5 oz) five rounds, 0.30 kg (10.6 oz) – 2 D-cell batteries

BASIC LOAD – 10 rounds

LOAD WEIGHT – 0.54 kg (1 lb 3.1 oz)

MANUFACTURER – High Standard Mfg. Co., New Haven, CN

STATUS – Out of production

SERVICE – Commercial and Law enforcement sales
