CODE 03-041-001

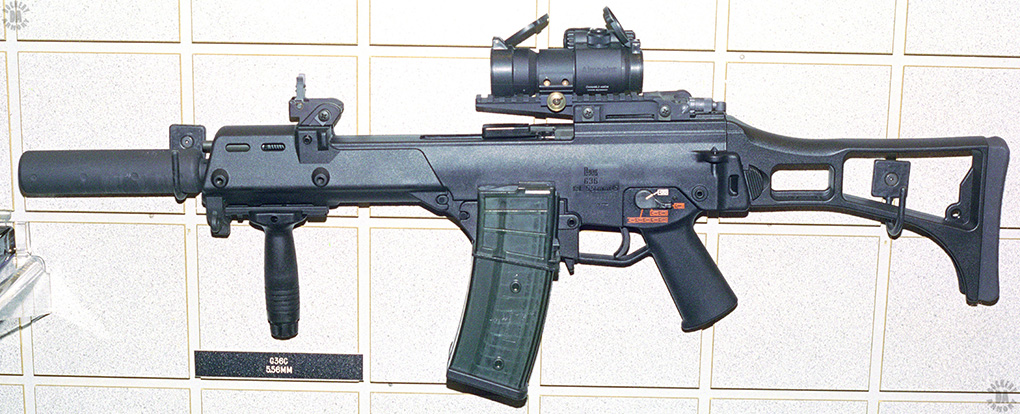

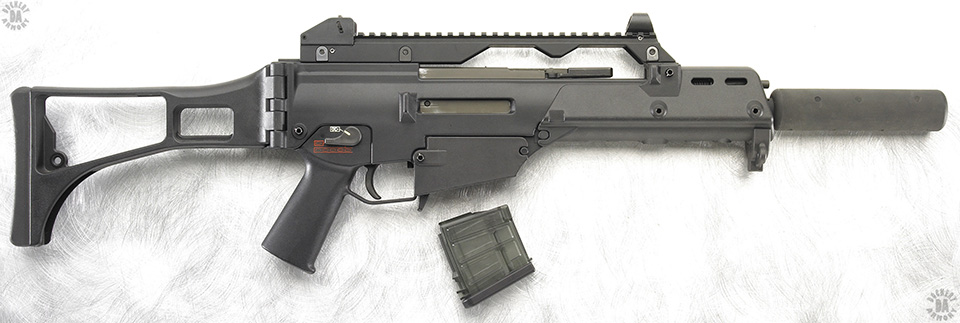

NAME – G36C
NAME (COMMON) – G36 Commando
COUNTRY OF ORIGIN – Germany
DATE OF MANUFACTURE – 2001
CALIBER – 5.56x45mm NATO
OVERALL LENGTH – 50 cm (19.69 in) Stock folded, 71.6 cm (31.96 in) Stock extended
BARREL LENGTH – 22.8 cm (8.98 in)
RIFLING (TYPE & TWIST) – 6 Grooves, Right-hand twist, 1 turn in 17.8 cm (7 in)
LOAD – SS109/M855 Ball Full metal jacket with steel core penetrator
BULLET DIAMETER – 5.69 mm (0.224 in)
BULLET WEIGHT – 4.02 g (62 grains)
MUZZLE VELOCITY – 859 m/s (2819 fps)
MUZZLE ENERGY – 1484 j (1094 ft/lb)
WEIGHT (EMPTY) – 2.988 kg (6 lb 9 oz)
WEIGHT (LOADED) – 3.612 kg (7 lb 15 oz) with sling, loaded with 30 rounds 5.56mm NATO
SLING WEIGHT – 0.13 kg (4.6 oz)
SIGHTS – Open, iron, adjustable, Front sight – Hooded post, Rear sight – Aperture, adjustable for windage and range
EFFECTIVE RANGE – 200 m (219 yards)
OPERATION – Gas, fires from closed bolt
TYPE OF FIRE – Selective, Semi and Full automatic
RATE OF FIRE – 40 rpm semi, 90 to 100 rpm full
CYCLIC ROF – 750 rpm
FEED DEVICE – 30 round translucent plastic box magazine, double column, double feed, stackable or
100-round dual-drum magazine
FEED DEVICE WEIGHT (EMPTY) – 30-round magazine – 0.125 kg (4.4 oz)
100-round drum – 0.90 kg (2 lb)
FEED DEVICE WEIGHT (LOADED) – 30-round magazine – 0.494 kg (1 lb 1.4 oz) with 30 rounds 5.56mm
100 –round drum – 2.131 kg (4 lb 11 oz) with 100 rounds 5.56 NATO
BASIC AMMUNITION LOAD – Six – 30 round magazines (180 rounds)
LOAD WEIGHT – 2.964 kg (6 lb 9 oz)
MANUFACTURER – Heckler & Koch GmbH, Oberndorf/Neckar, Germany
STATUS – Production completed
SERVICE – German military, law enforcement, international commercial sales
