CODE – 04-132-890

NAME – Colt Model 1890 Gatling Gun

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1890

CALIBER – 11.63×53.3mmR (45-70)

OVERALL LENGTH – 124.5 cm (49 in)

BARREL LENGTH – 81.3 cm (32 in)

RIFLING (TYPE & TWIST) – 3 Grooves, Right-hand twist, 1 turn in 55.9 cm (22 in)

LOAD – Round-nosed lead ball 45-70-405

BULLET DIAMETER – 11.63mm (0.458 in)

BULLET WEIGHT – 26.24 g (405 gr)

MUZZLE VELOCITY – 416 m/s (1364 fps)

MUZZLE ENERGY – 2269 j (1673 ft/lb)

WEIGHT (EMPTY) – 90.72 kg (200 lb) for Feed Case loading

WEIGHT (EMPTY) – 94.57 kg (208 lb 8 oz) for Bruce Feed loading

WEIGHT (LOADED) – 93.27 kg (205 lb 10 oz) with Feed Case loaded with 40 rounds

WEIGHT (LOADED) – 92.19 kg (203 lb 4 oz) with Bruce Feed loaded with 30 rounds

WEIGHT (MOUNTED) – 163.12 kg (359 lb 10 oz) on tripod and Feed Case loaded with 40 rounds

WEIGHT (MOUNTED – 162.04 kg (357 lb 4 oz) on tripod with Bruce Feed loaded with 30 rounds

WEIGHT (MOUNTED) – 256.56 kg (565 lb 10 oz) on carriage and Feed Case loaded with 40 rounds

WEIGHT (MOUNTED) – 255.48 kg (563 lb 4 oz) on carriage with Bruce Feed loaded with 30 rounds

TYPE OF MOUNT – Tripod with tiller bar.

WEIGHT OF MOUNT – 69.85 kg (154 lb)

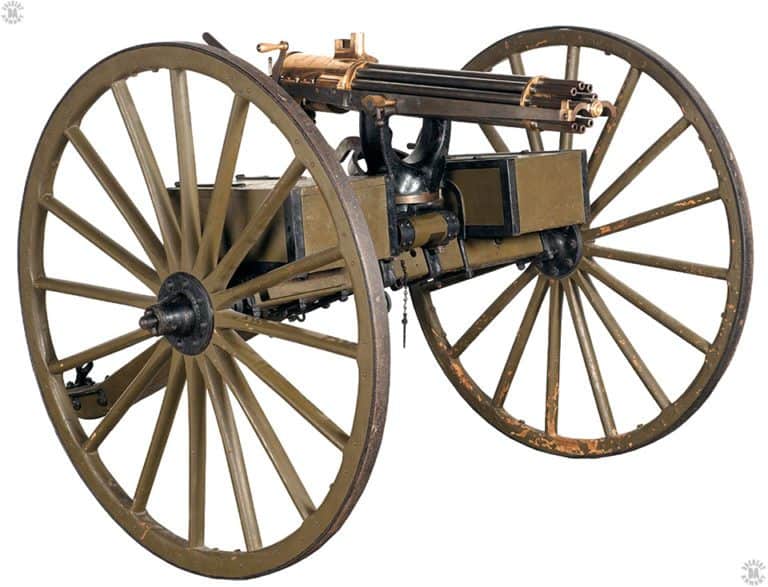

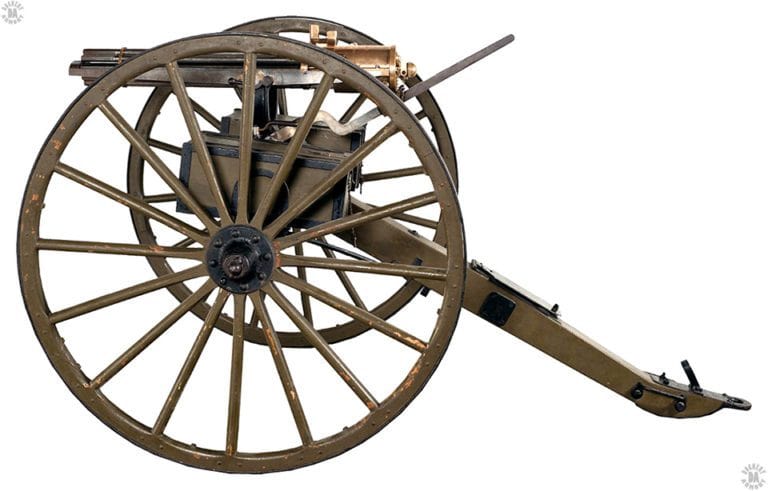

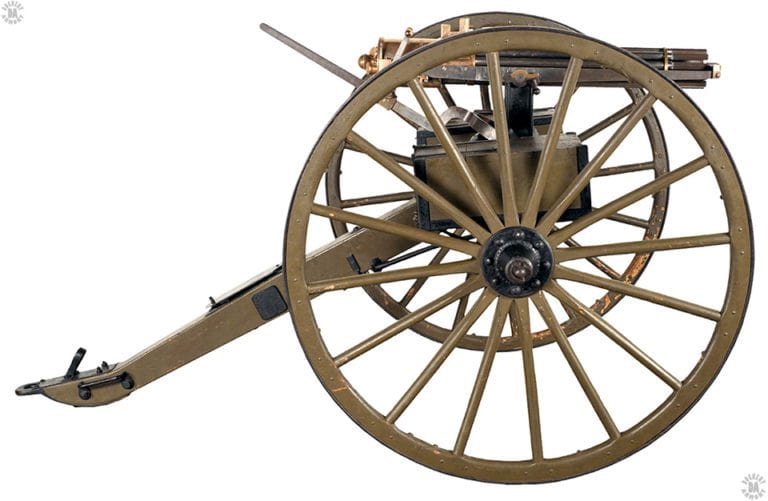

TYPE OF MOUNT – Carriage

WEIGHT OF MOUNT – 163.29 kg (360 lb) with implements and gun cradle

      Implements include: Two trail hand-spikes, Wiping (cleaning) rod. Lock chain, Elevating screw clamp, metal gunner’s seat on stock

SIGHTS – Open, iron, adjustable, Front sight – Inverted V-blade, Rear sight – V-notch, adjustable for range

EFFECTIVE RANGE – 914 meters (1,000 yards)

OPERATION – Manual

TYPE OF FIRE – Full automatic

RATE OF FIRE – 400 – 450 rpm

CYCLIC ROF – 525 rpm

FEED DEVICE – 40 round “Feed Case” (box magazine), gravity-fed or

FEED DEVICE – 30- round Bruce feed, gravity fed feed guide

FEED DEVICE WEIGHT (EMPTY) – Feed case – 0.96 kg (2 lb 2 oz)

FEED DEVICE (EMPTY) – Bruce Feed – 3.86 kg (8 lb 8 oz)

FEED DEVICE WEIGHT (LOADED) – Feed case – 2.55 kg (5 lb 10 oz) with 40 rounds 45-70-405

FEED DEVICE WEIGHT (LOADED) – Bruce feed – 5.33 kg (11 lb 12 oz) with 30 rounds, 1.47 kg (3 lb 4 oz) 30 rounds

BASIC AMMUNITION LOAD – Feed case – Twenty-four – 40-round magazines (960 rounds)

BASIC AMMUNITION LOAD – Bruce Feed – 2,000 rounds in cardboard boxes

LOAD WEIGHT – Feed case – 61.2 kg (134 lb 15 oz)

LOAD WEIGHT – Bruce feed – 98 kg (216 lb)

MANUFACTURER– Colt’s Patent Firearms Manufacturing Company, Hartford, Connecticut

STATUS – Antique

SERVICE – US Military

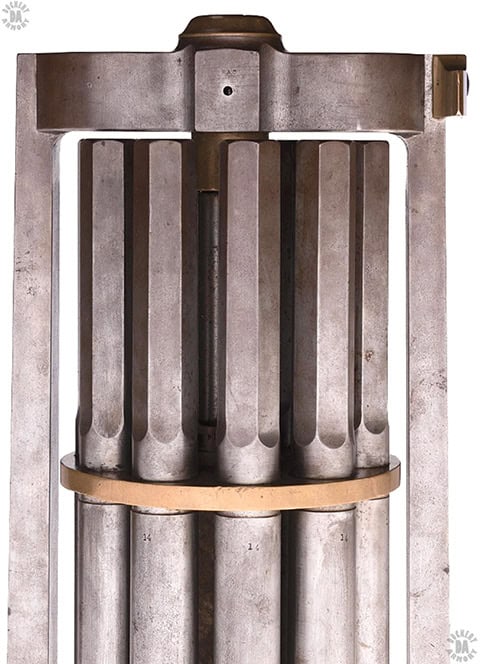

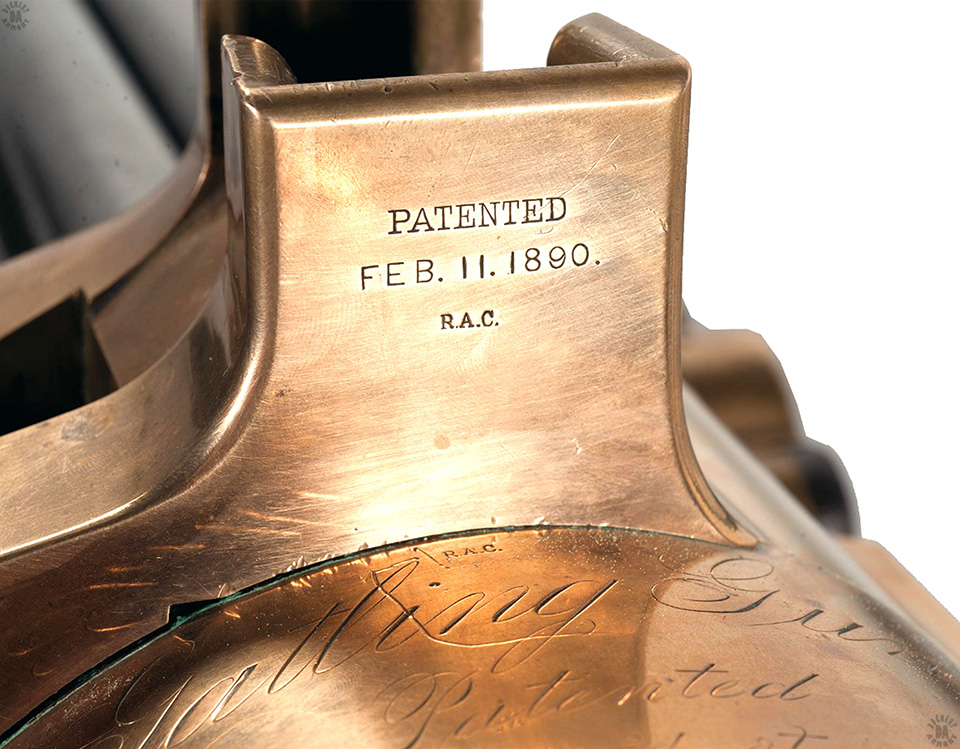

     This was the last Gatling model chambered for 11.63×53.3mmR (45-70) purchased by the US Army. It is an improved version of the Model 1883 with the brass casing around the barrels having been removed to save on manufacturing difficulties and costs. The feed system was set up so that the weapon could be loaded with either the standard 40-round feed cases, or a Bruce Feed could be inserted into the magazine well and it be used to load the weapon from 20-round boxes.
