CODE 03-062-911

NAME – Arisaka Type 44 Cavalry Carbine

NAME (NATIVE) – Meiji 44th Year Type Cavalry Carbine

COUNTRY OF ORIGIN – Japan

DATE OF MANUFACTURE – 1911

CALIBER – 6.5x50mmSR

OVERALL LENGTH – 96.5 cm (38 in)

BARREL LENGTH – 48.5 cm (19.1 in)

RIFLING (TYPE & TWIST) – 4 Groove, Right hand twist, 1 turn in 19.8 cm (I turn in 7.88 in)

LOAD – Full metal jacketed ball

BULLET DIAMETER – 6.65 mm (0.262 in)

BULLET WEIGHT – 9.01 g (139 grains)

MUZZLE VELOCITY – 732 m/s (2403 fps)

MUZZLE ENERGY – 2417 j (1783 ft/lb)

WEIGHT (EMPTY) – 4.06 kg (8 lb 15.2 oz)

WEIGHT (LOADED) – 4.17 kg (9 lb 3.1 oz) with 5 rounds ball

SIGHTS – Open, Iron, Adjustable, Front sight – Inverted V-blade, Rear sight – Battle sight – V-notch to 400 meters (438 yards), V-notch ladder, Adjustable from 400 to 2000 meters (438 to 2187 yards) in 100 meter (109 yard) increments

EFFECTIVE RANGE – 400 meters (438 yards)

OPERATION – Manual, bolt action

TYPE OF FIRE – Repeating

RATE OF FIRE – 12 to 15 rpm

FEED DEVICE – 5-round integral box magazine, Stripper-clip loaded

FEED DEVICE WEIGHT (EMPTY) – 6.87 g (106 grains) Empty 5-round stripper clip

FEED DEVICE WEIGHT (LOADED) – 0.113 kg (3.99 oz) 5 rounds on stripper clip, 0.106 kg (3.74 oz) 5 rounds loose

BASIC AMMUNITION LOAD – Twenty-four 5-round clips (120 rounds)

LOAD WEIGHT – 2.71 kg (5 lb 15.6 oz)

MANUFACTURER – Tokyo Imperial Arsenal, Koishikawa

STATUS – Obsolete

SERVICE – Japanese military

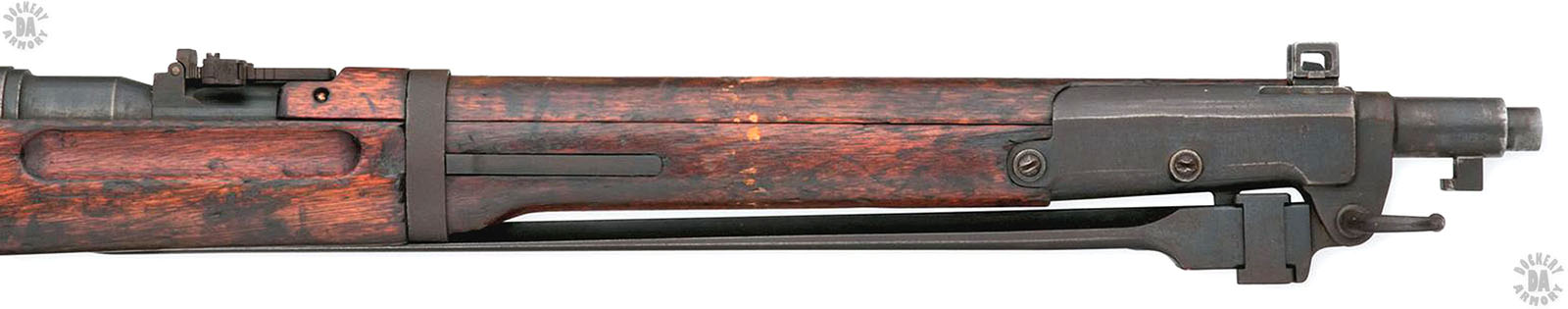

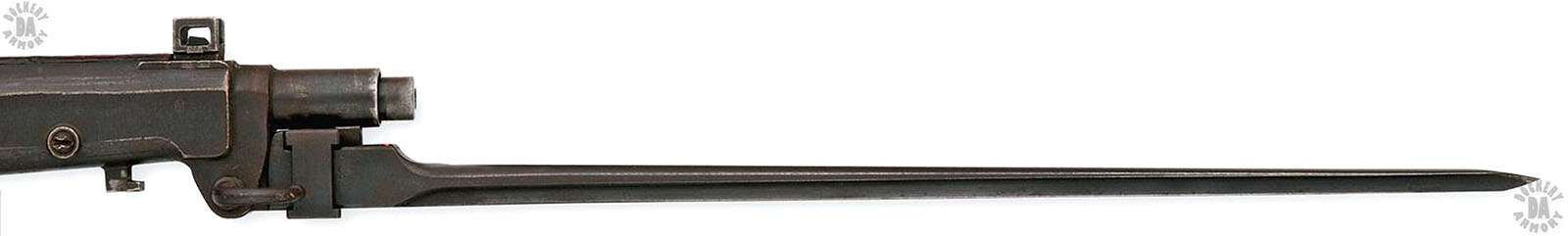

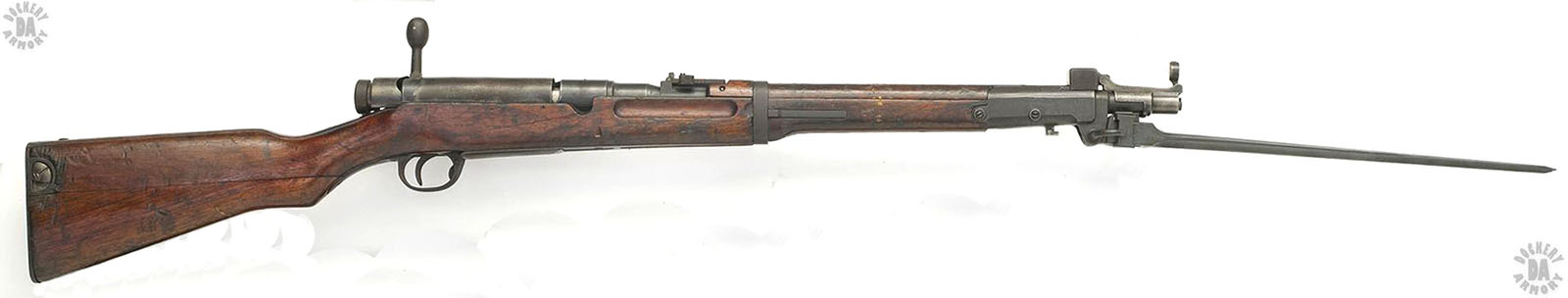

   Carbine has integral triangular-shaped 33 cm (13 inch) folding bayonet underneath the muzzle and inletted into the underside of the stock
