40x53mm M430 High Explosive Dual Purpose

NAME – 40x53mm M430 High Explosive Dual Purpose

NAME (COMMON) – M430 HEDP

CALIBER – 40x53mm SR

TYPE – High explosive fragmentation

YEAR OF INTRODUCTION –

COUNTRY OF ORIGIN – USA

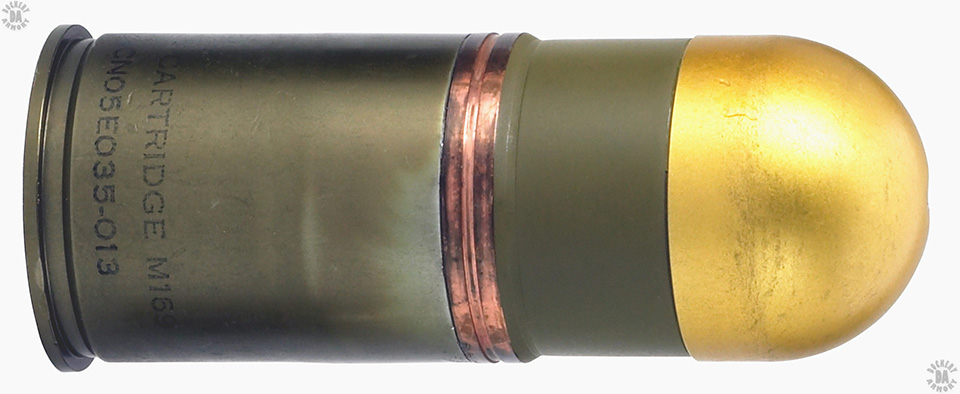

IDENTIFYING COLOR CODE – Ogive (nose) is yellow, olive drab projectile body with yellow markings, cartridge case is green with yellow markings

CASE TYPE – M169 Semi-rimmed straight

CARTRIDGE LENGTH – 11.22 cm (4.42 in)

CASING LENGTH – 53 mm (2.09 in)

CASE HEAD DIAMETER – 41.3 mm (1.62 in

CASE RIM DIAMETER – 43.6 mm (1.716 in)

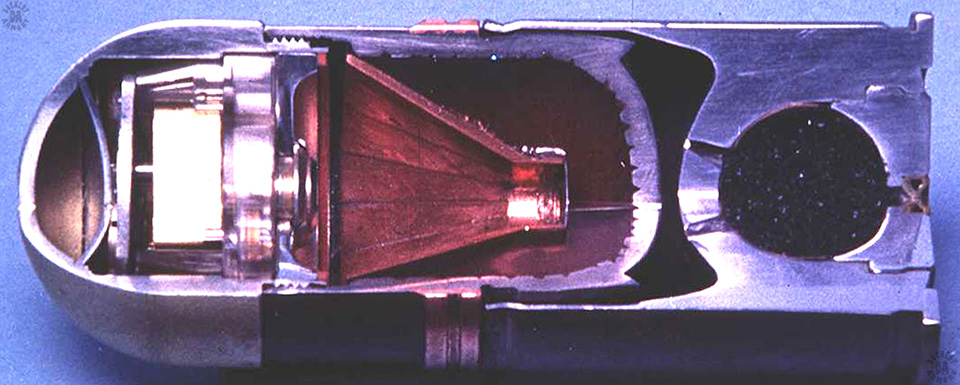

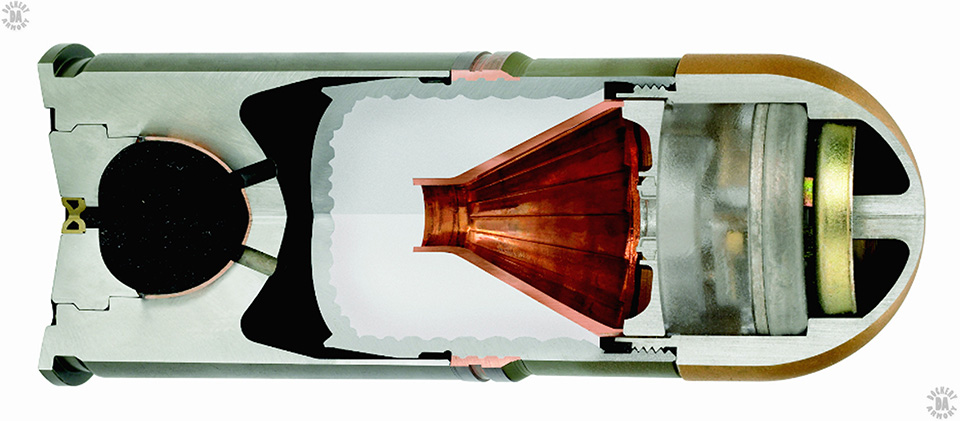

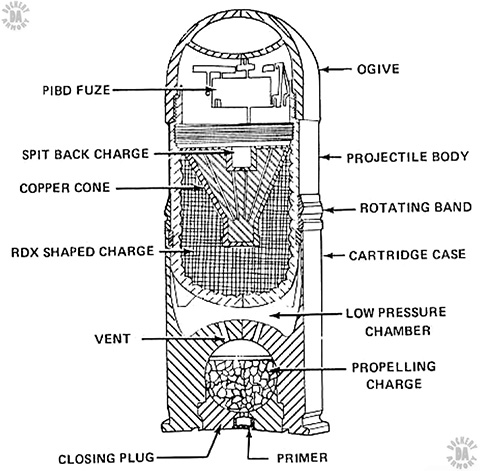

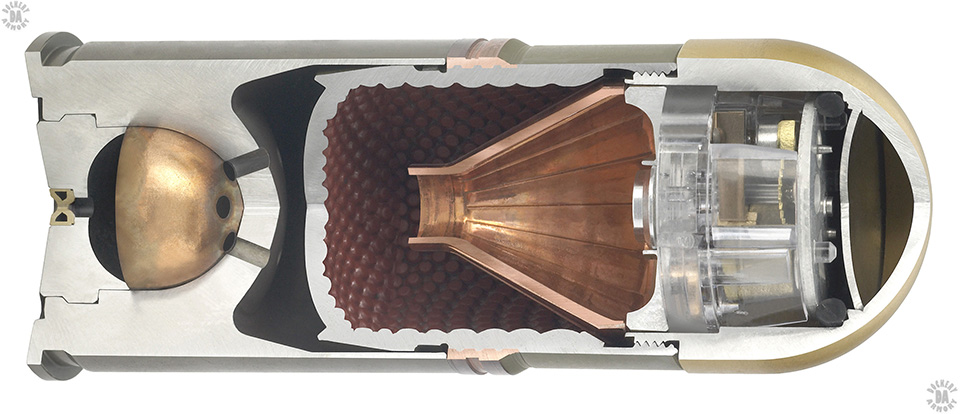

PROJECTILE TYPE – High velocity, ground burst, high explosive, Shaped charge armor piercing, internally segmented fragmentation

PROJECTILE DIAMETER – 41.20 mm (1.623 in) at rotating band

PROJECTILE WEIGHT – 0.24 kg (8.5 oz)

POWDER WEIGHT – 4.64 g (76.1 grains) M2 Propellant

FILLER – Composition A-5

FILLER WEIGHT – 0.038 kg (1.34 oz)

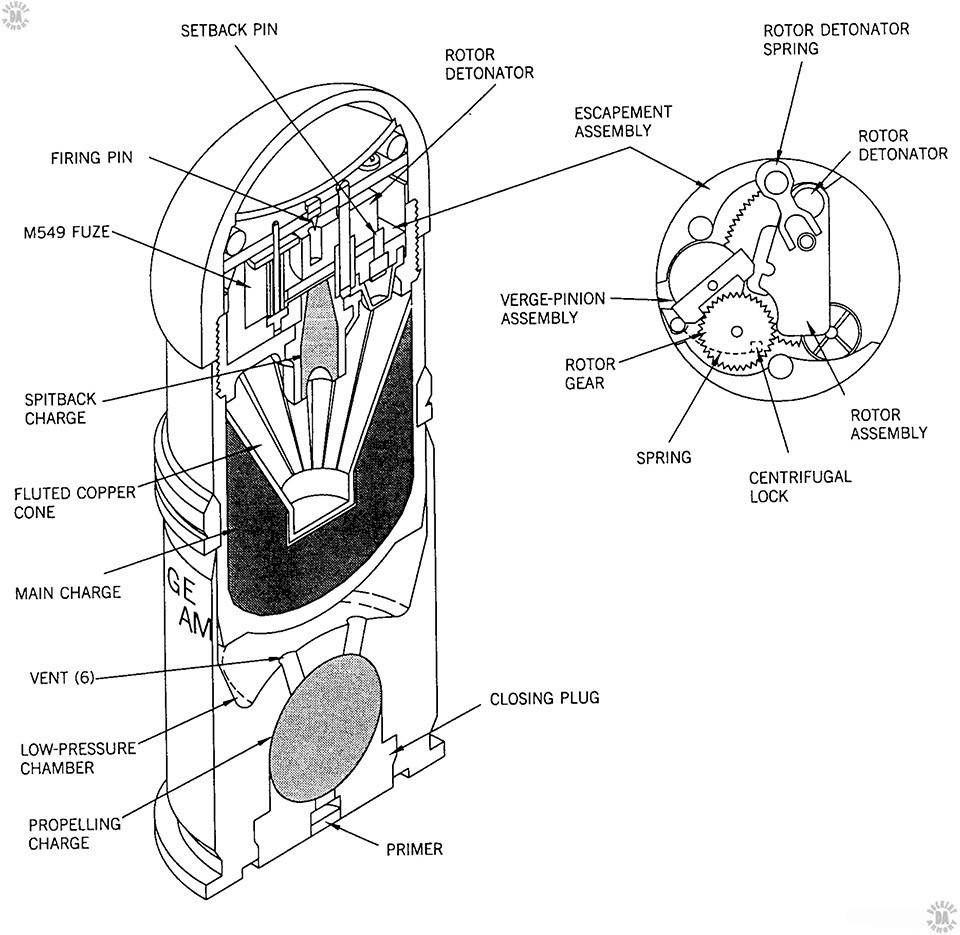

FUZE TYPE – M549 point initiating, base detonating

CASING WEIGHT – 0.095 kg (3.35 oz)

TOTAL ROUND WEIGHT – 0.35 kg (12 oz)

MUZZLE VELOCITY – 244 m/s (795 fps)

NOMINAL BARREL LENGTH – 41.3 cm (16.26 in)

MINIMUM (ARMING) RANGE – 18 to 30 m (59 to 98 feet)

MAXIMUM RANGE – 2,200 m (2,406 yards)

EFFECT – Blast and fragmentation

AREA OF EFFECT – 15 m (16 yard)

MANUFACTURER – AMTEC National Defense Corp., Janesville, Wisconsin

STATUS – Production completed

SERVICE – US Military and Allies
