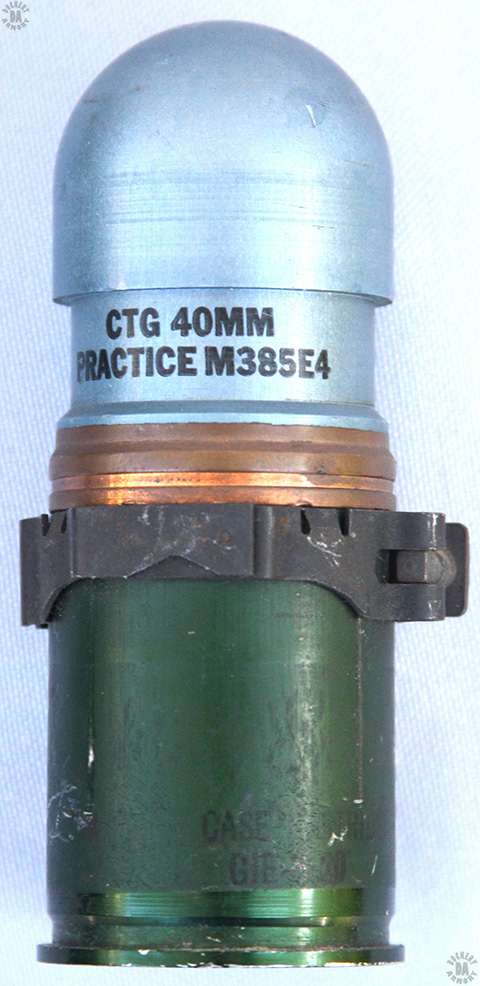

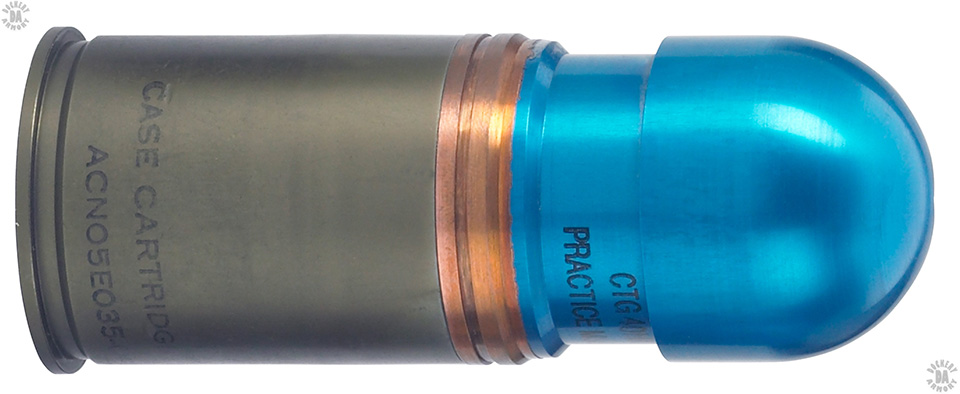

IDENTIFYING COLOR CODE – Projectile is blue with white markings, early production projectiles may have black markings, unpainted copper rotating band cartridge case is green with yellow markings

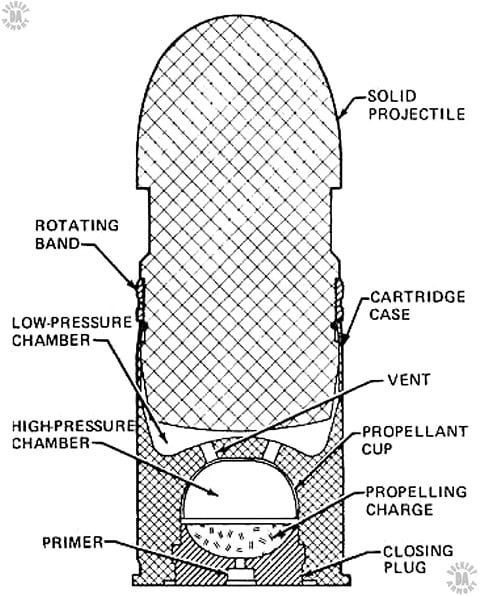

CASE TYPE – M169 Semi-rimmed straight
CARTRIDGE LENGTH – 11.22 cm (4.42 in)
CASING LENGTH – 53 mm (2.09 in)
CASE HEAD DIAMETER – 41.3 mm (1.62 in
CASE RIM DIAMETER – 43.6 mm (1.716 in)
PROJECTILE TYPE – Solid aluminum
PROJECTILE DIAMETER – 41.20 mm (1.623 in) at rotating band
PROJECTILE WEIGHT – 0.25 kg (9 oz)
POWDER WEIGHT – 2.45 g (37.80 grains) M2 Propellant
FUZE TYPE – None
CASING WEIGHT – 0.095 kg (3.35 oz)
TOTAL ROUND WEIGHT – 0.35 kg (12 oz)
MUZZLE VELOCITY – 244 m/s (795 fps)
NOMINAL BARREL LENGTH – 41.3 cm (16.26 in)
MAXIMUM RANGE – 2,195 m (2,400 yards)
EFFECT – None, Impact at target
MANUFACTURER – AMTEC National Defense Corp., Janesville, Wisconsin
STATUS – Production completed
SERVICE – US Military and Allies

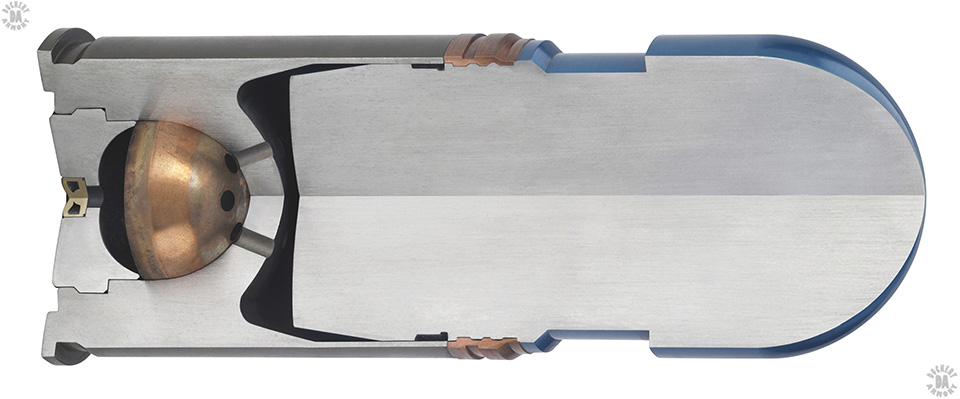

The M385A1 round is the nearly identical to the M385. The only difference is that the ogive of the M385A1 projectile is shaped to match that of the M430 HEDP round. Both projectiles have a thinner diameter center section, giving them a mushroom shape. This construction is an additional aid in identifying the round as a practice projectile.
