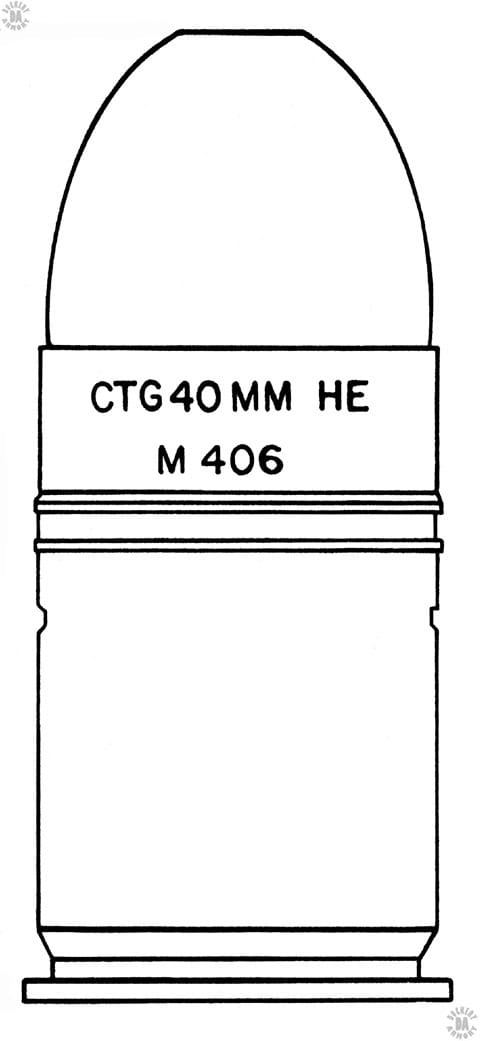

40x46mm M406 High Explosive

NAME – 40x46mm M406 High Explosive

NAME (COMMON) – M406 HE

CALIBER – 40x46mmSR

TYPE – Low velocity, ground burst, high explosive, fragmentation

YEAR OF INTRODUCTION – 1961

COUNTRY OF ORIGIN – USA

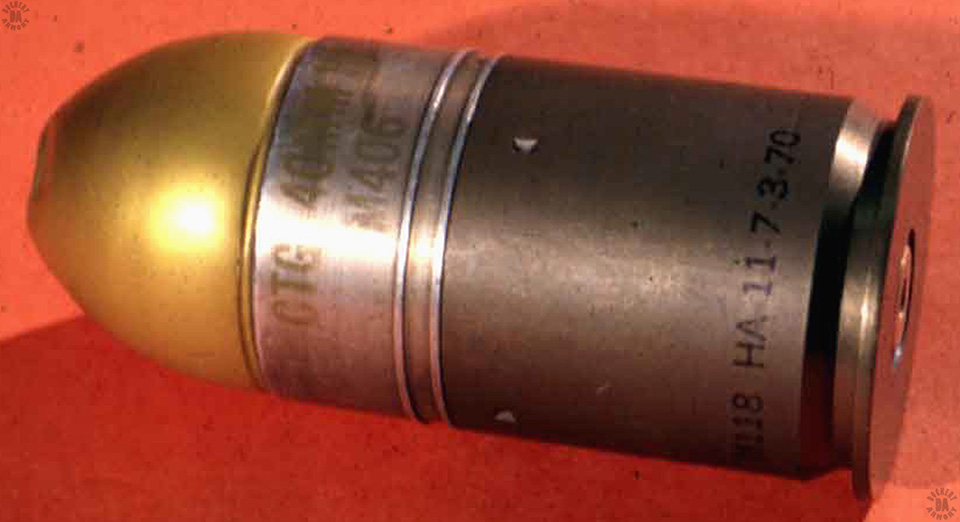

IDENTIFYING COLOR CODE – Green cartridge case with yellow ink markings, Olive drab projectile body with yellow ink markings, Gold flat-pointed ogive

CASE TYPE – M118 Semi-rimmed straight walled

CARTRIDGE LENGTH – 9.9 cm (3.89 in)

CASING LENGTH – 46mm (1.811 in)

CASE HEAD DIAMETER – 41.097 mm (1.618 in)

CASE RIM DIAMETER – 43.54 mm (1.714 in)

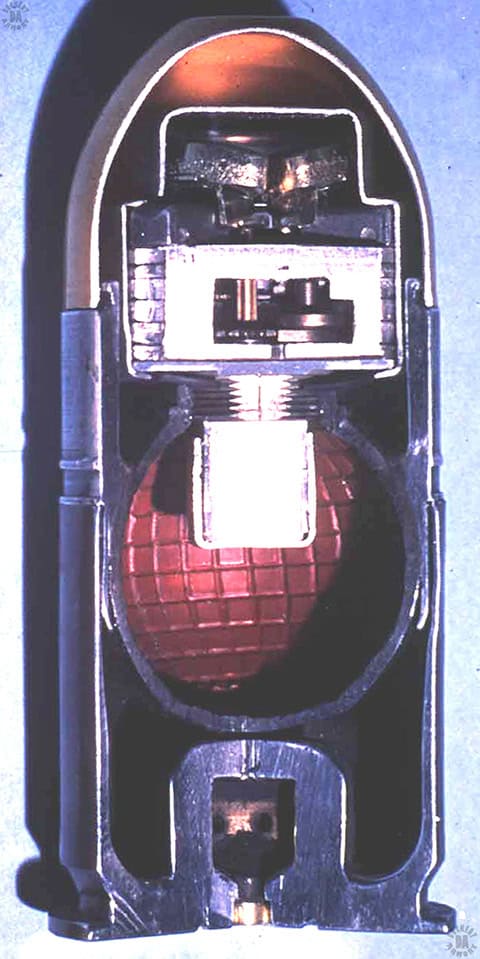

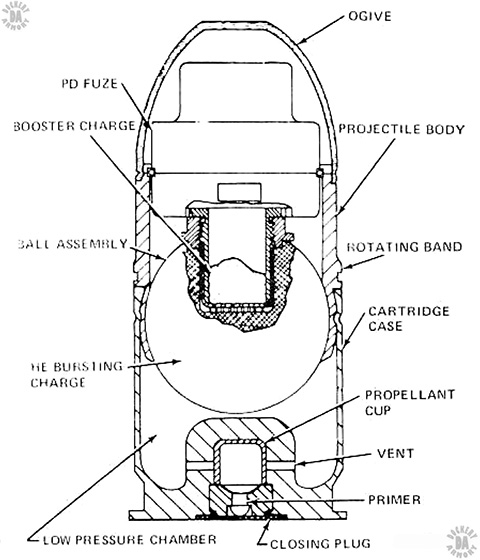

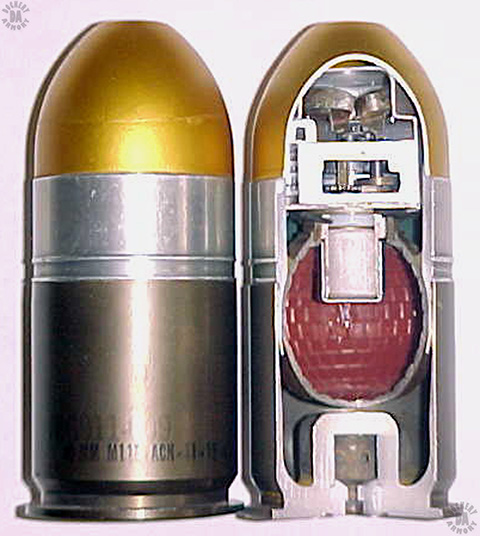

PROJECTILE TYPE – Flat-nosed aluminum-bodied projectile with wrapped, notched, square wire fragmentation body

PROJECTILE DIAMETER – 41.15 mm (1.620 in) at rotating band

PROJECTILE WEIGHT – 0.178 kg (6.28 oz)

POWDER WEIGHT – 0.33 g (5.09 grains) M9 double-base flake mortar powder

FILLER – Composition B

FILLER WEIGHT – 0.032 kg (1.13 oz)

FUZE TYPE – M551 point detonating

CASING WEIGHT – 0.050 kg (1.78 oz)

TOTAL ROUND WEIGHT – 0.228 kg (8.04 oz)

MUZZLE VELOCITY – 75 m/s (247 fps)

NOMINAL BARREL LENGTH – 35.6 cm (14 in)

MINIMUM (ARMING) RANGE – 14 to 27 m (45 to 90 feet)

MAXIMUM RANGE – 400 m (437 yards)

EFFECT – Blast and fragmentation at impact point

AREA OF EFFECT – 5 m (5.5 yards) burst radius

MANUFACTURER –

STATUS – Production completed, issue

SERVICE – US Military and Allies
