40x46mm M382 Practice

NAME – 40x46mm M382 Practice

NAME (COMMON) – M382 Practice

CALIBER – 40x46mmSR

TYPE – Low velocity, ground burst, impact-indicating, practice round

YEAR OF INTRODUCTION – 1953

COUNTRY OF ORIGIN – USA

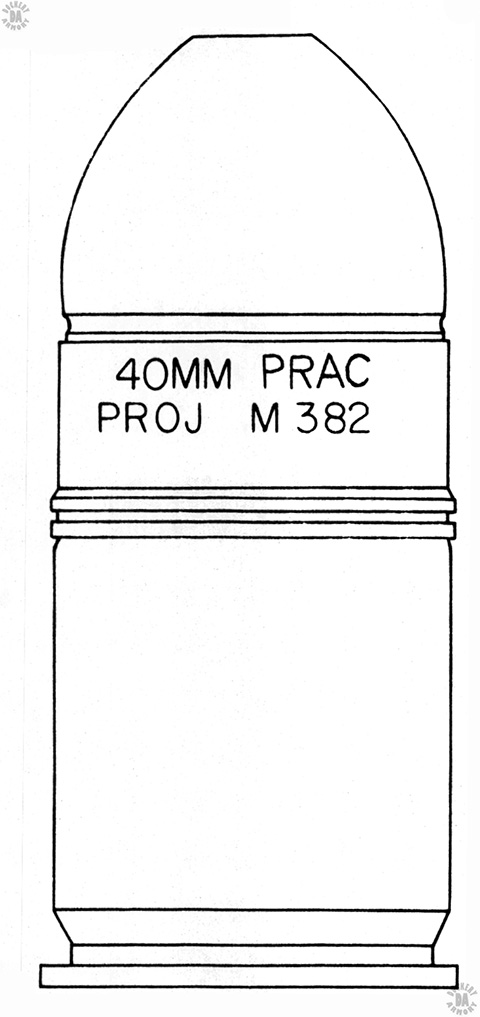

IDENTIFYING COLOR CODE – Green cartridge case with yellow ink markings, Olive drab projectile body with yellow ink markings, Blue flat-pointed ogive

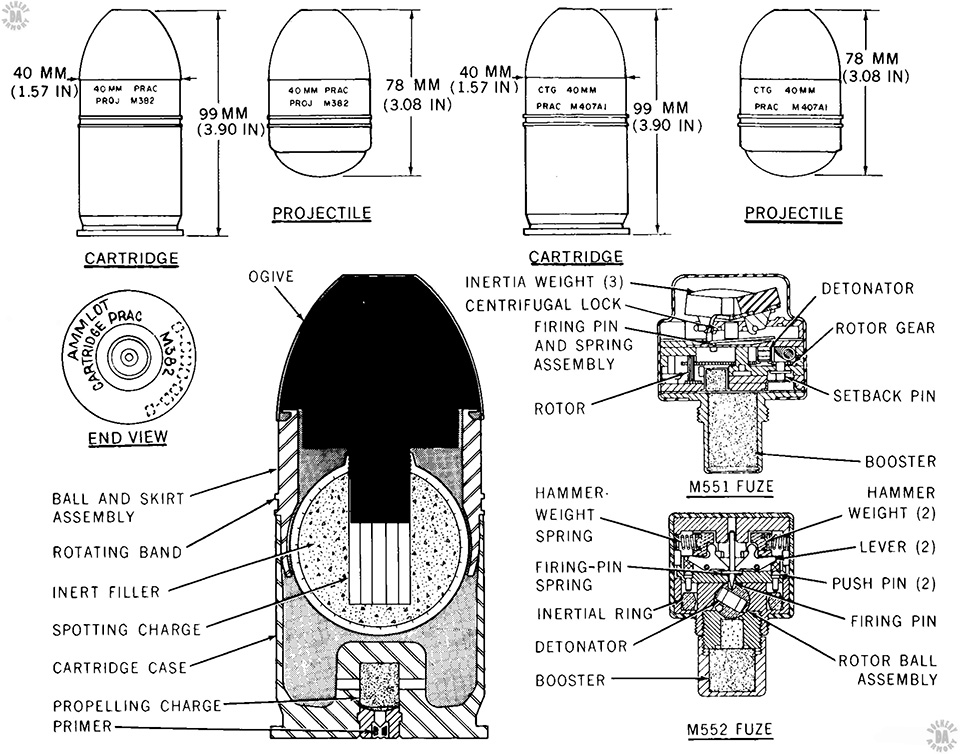

CASE TYPE – M118 Semi-rimmed straight walled

CARTRIDGE LENGTH – 9.9 cm (3.89 in)

CASING LENGTH – 46mm (1.811 in)

CASE HEAD DIAMETER – 41.097 mm (1.618 in)

CASE RIM DIAMETER – 43.54 mm (1.714 in)

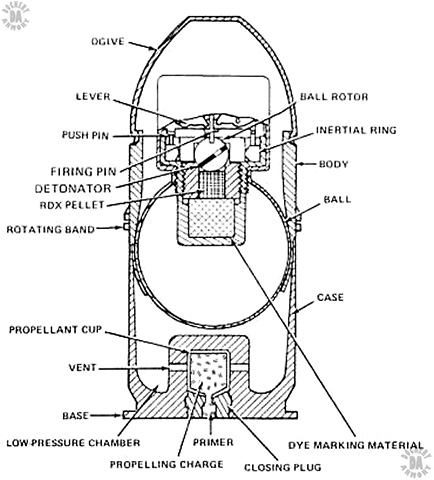

PROJECTILE TYPE – Flat-nosed aluminum-bodied projectile with plastic grenade body

PROJECTILE DIAMETER – 41.15 mm (1.620 in) at rotating band

PROJECTILE WEIGHT – 0.178 kg (6.28 oz)

POWDER WEIGHT – 0.33 g (5.09 grains) M9 double-base flake mortar powder

FILLER – Yellow dye powder with RDX booster

FILLER WEIGHT – 4.54 g (0.16 oz)

FUZE TYPE – M552 (T333E1) point detonating with 0.38 g (5.9 grain) RDX booster

CASING WEIGHT – 0.050 kg (1.78 oz)

TOTAL ROUND WEIGHT – 0.228 kg (8.04 oz)

MUZZLE VELOCITY – 76 m/s (249 fps)

NOMINAL BARREL LENGTH – 35.6 cm (14 in)

MINIMUM (ARMING) RANGE – 2.4 to 3 m (7 to 10 feet)

MAXIMUM RANGE – 400 m (437 yards)

EFFECT – Ground burst of yellow dye marker at point of impact

AREA OF EFFECT – 10 m (11 yard) danger area radius

MANUFACTURER –

STATUS – Obsolete, suspended from issue

SERVICE – US Military
