08–029-986

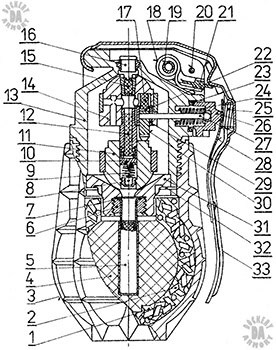

NAME – URG-86 Fragmentation Grenade

NAME (NATIVE) – Uragan Ruční granát 86 [Hurricane hand grenade 86]

COMMON NAMES – Uragan [Hurricane]

TYPE – Selective fuze, high explosive controlled fragmentation grenade

COUNTRY OF ORIGIN – Czechoslovakia

DATE OF MANUFACTURE – 1986

LENGTH – 11.7 cm (4.61 in)

WIDTH (DIAMETER) – 6.1 cm (2.40 in) maximum

WEIGHT – 0.43 kg (15.2 oz)

EFFECT – Blast and fragmentation in burst radius

BURST RADIUS – 8 m (8.7 yards)

FUSE TYPE – Selectable Timed or Impact with Self-destruct, pull ring/safety lever

FUSE INITIATION – Lever release

FUSE DELAY – 1.2 second delay to armed condition, 3.2 to 4.6 second delay to detonation, impact operation after arming delay.

FILLER – PL-U-EP 14 Thermoplastic Nitropenta (PETN)

FILLER WEIGHT – 0.042 kg (1.5 oz)

FILLER EQUIVALENT TO TNT (R.E.) – 1.66

AVERAGE RANGE – 35 m (38 yards)

COLOR CODE – Green plastic body and fuze

MANUFACTURER – Zeveta Bojkovice, as. Czechoslovakia

STATUS – Available for production

SERVICE – Czech military, international sales
