CODE – 02-023-005

NAME – Type QCQ-05 Submachinegun

NAME (NATIVE) – Qiāng Chōngfēng Qīngxíng [gun, assault, light]

COUNTRY OF ORIGIN – Chinese Peoples Republic

DATE OF MANUFACTURE – 2005

CALIBER – 5.8x21mm DAP92 (6 g per rd)

OVERALL LENGTH – 50 cm (19.7 in)

BARREL LENGTH – 24.9 cm (9.8 in)

BULLET DIAMETER – (0.229 in)

BULLET WEIGHT – 4 g (46 gr)

MUZZLE VELOCITY – (1738 fps)

MUZZLE ENERGY – 418 j (309 ft/lbs)

WEIGHT (EMPTY) – 2.2 kg (4 lb 13.6 oz)

WEIGHT (LOADED) – 2.90 kg (6 lb 6 oz) with 50 rounds DAP92 *

SIGHTS – Open, iron, adjustable, Front sight – Post, Rear sight, L-type flip aperture, one aperture is for the DAP92 and set for 150 metres, the other is set at 100m for the DCV05 round

EFFECTIVE RANGE – 200 meters (219 yards)

OPERATION – Blowback, fires from open bolt

TYPE OF FIRE – Selective, semiautomatic, controlled 3-round burst, and full automatic

RATE OF FIRE – 50 rpm semi, 150 rpm full automatic

CYCLIC ROF – 900 rpm

FEED DEVICE – 50 round box magazine, quadruple stack, single feed

FEED DEVICE WEIGHT (EMPTY) – 0.40 kg (14 oz) *

FEED DEVICE WEIGHT (LOADED) – 0.70 kg (1 lb 9 oz) with 50 rounds DAP92 *

BASIC LOAD – Four 50-round magazines (200 rounds)

LOAD WT – 2.80 kg (6 lb 2.8 oz) *

MANUFACTURER – China South Industries Group

STATUS – Production

SERVICE – Communist Chinese military and law enforcement.

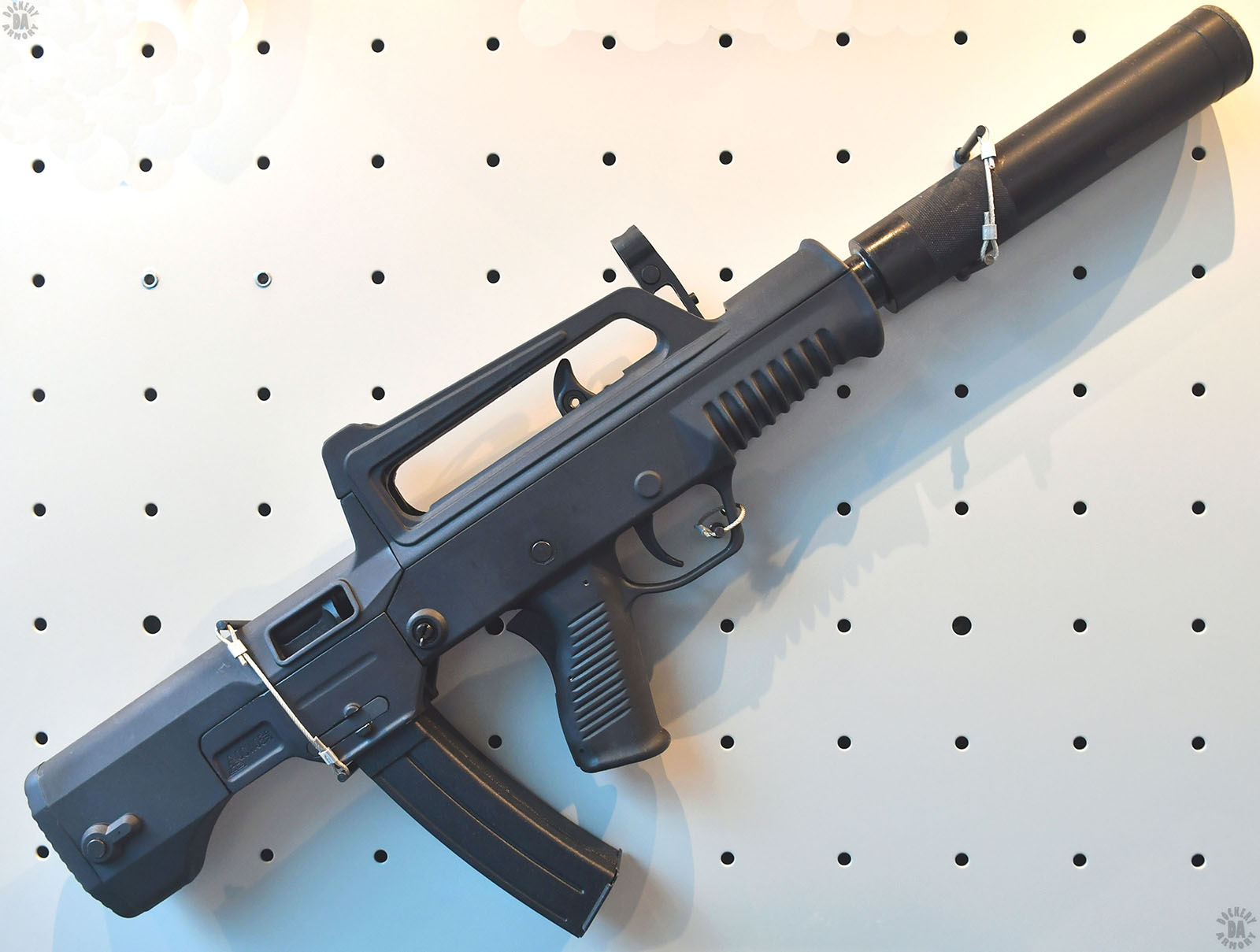

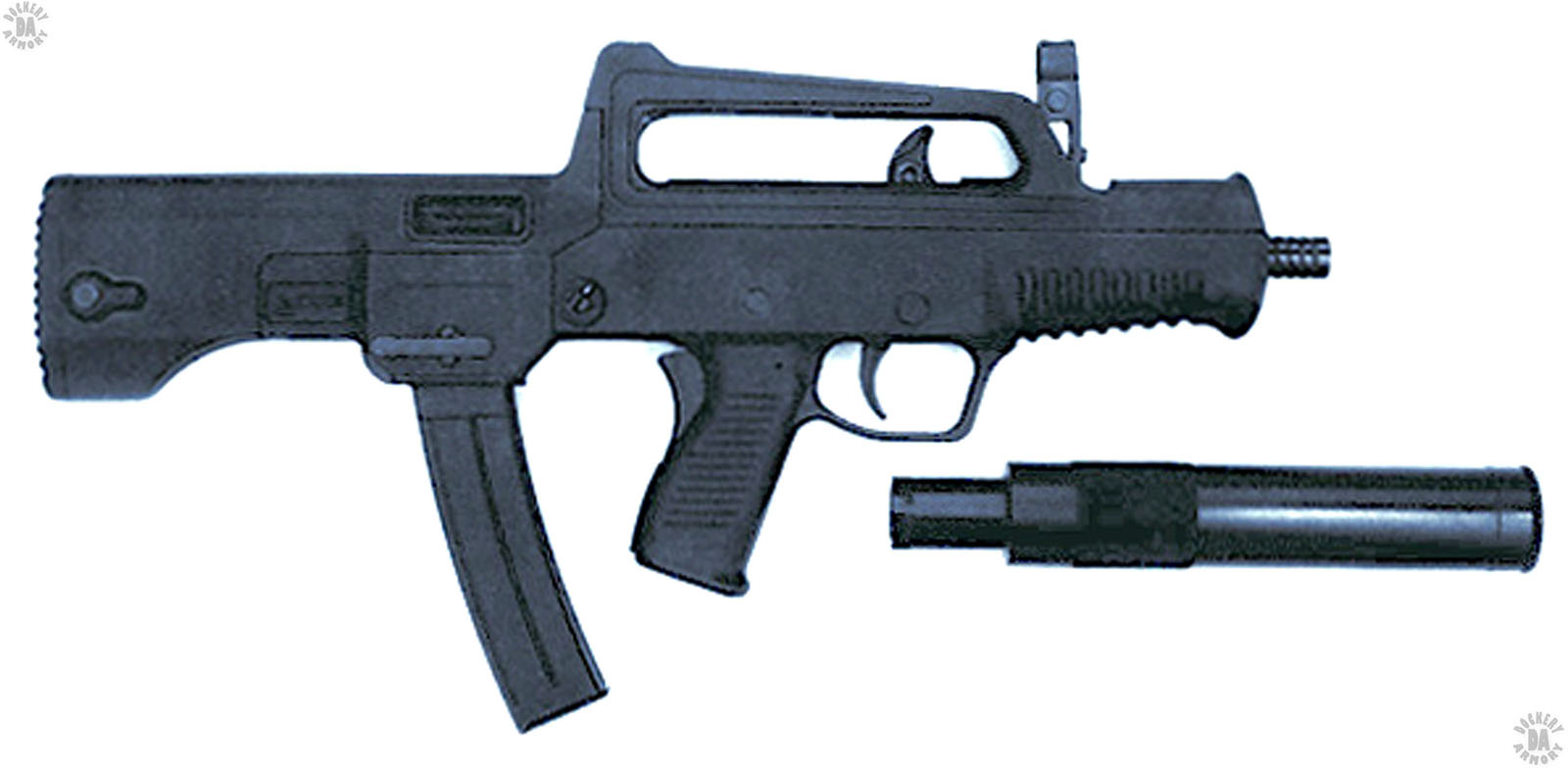

     When fitted with a muzzle suppressor, this weapons is designated the QCW-05.

*Estimated
