13-023-982

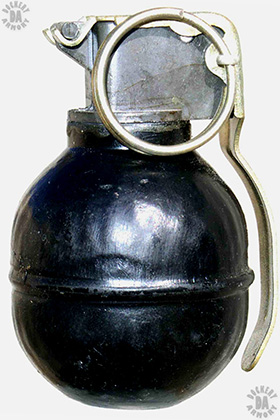

NAME – Type 82-2

TYPE – Fragmentation grenade

COUNTRY OF ORIGIN – China

DATE OF MANUFACTURE – 1982

LENGTH – 8.5 cm (3.35 in)

WIDTH (DIAMETER) – 4.8 cm (1.89 in)

WEIGHT – 0.260 kg (9.2 oz)

EFFECT – 400 fragments

BURST RADIUS – 7 m (7.6 yards)

FUSE TYPE – Pull ring/safety lever

FUSE INITIATION – Release of safety lever

FUSE DELAY – 2.8 to 4 seconds

FILLER – TNT

FILLER WEIGHT – 0.062 kg (2.2 oz)

FILLER EQUIVALENT TO TNT (R.E.) – 1.0

AVERAGE RANGE – 46 m (50 yards)

COLOR CODE – Black or Gray body, green plastic shipping cap

MARKINGS – Unknown

MANUFACTURER – China North Industries Corp. Beijing, China

STATUS – Production

SERVICE – Chinese military and international sales

The production body of the Type 82-2 is formed from A3 steel plate with a thickness of 2.5 mm (0.098 in) with the inner wall of the round being punched with preformed fragments 4.6×4.6 mm (0.18 in x 0.18 in) square. The grenade is notable in that it comes with a plastic shipping cap that encloses the entire fuse for maximum safety. The cap is easily and quickly removed.
