CODE – 02-132-967

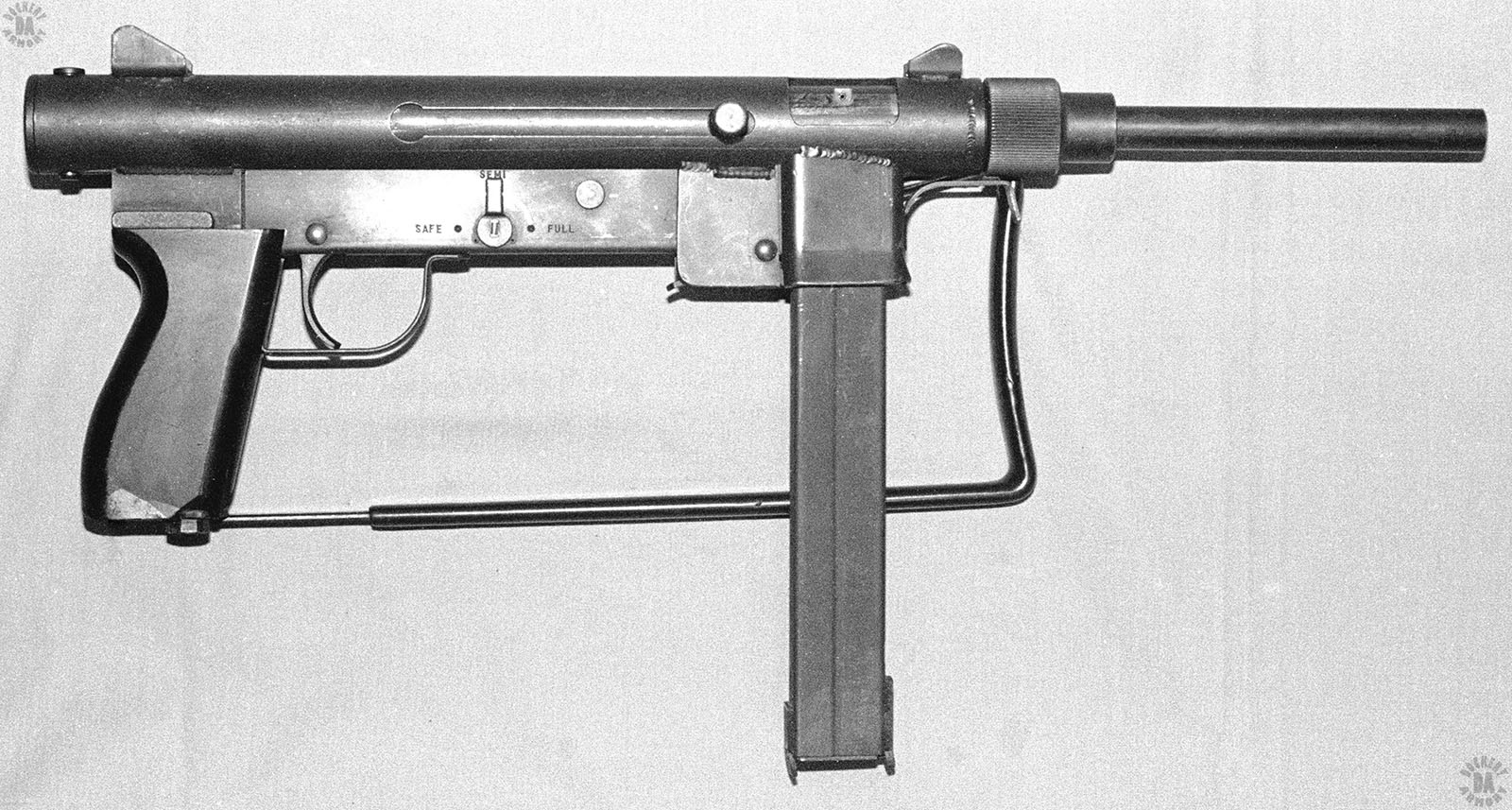

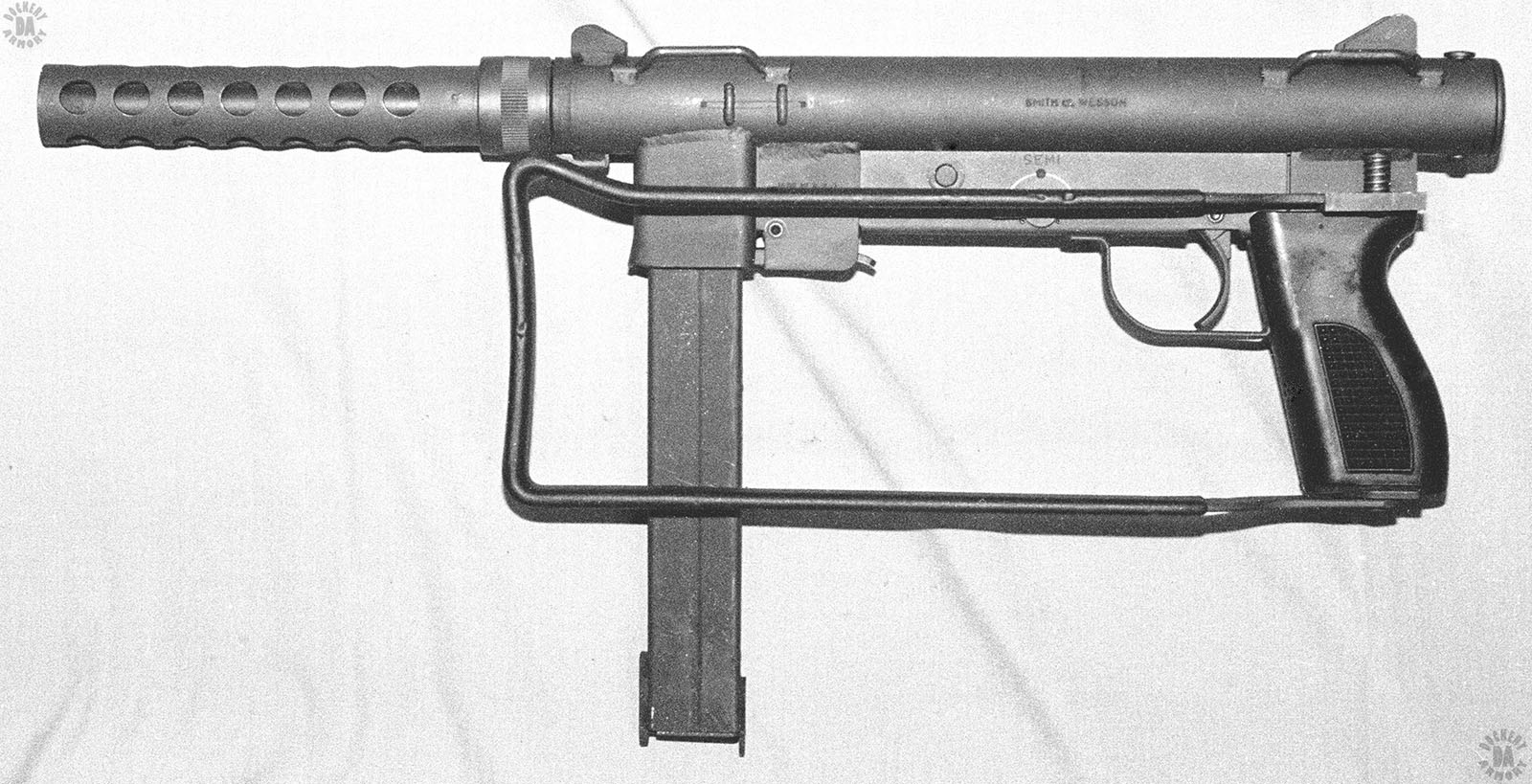

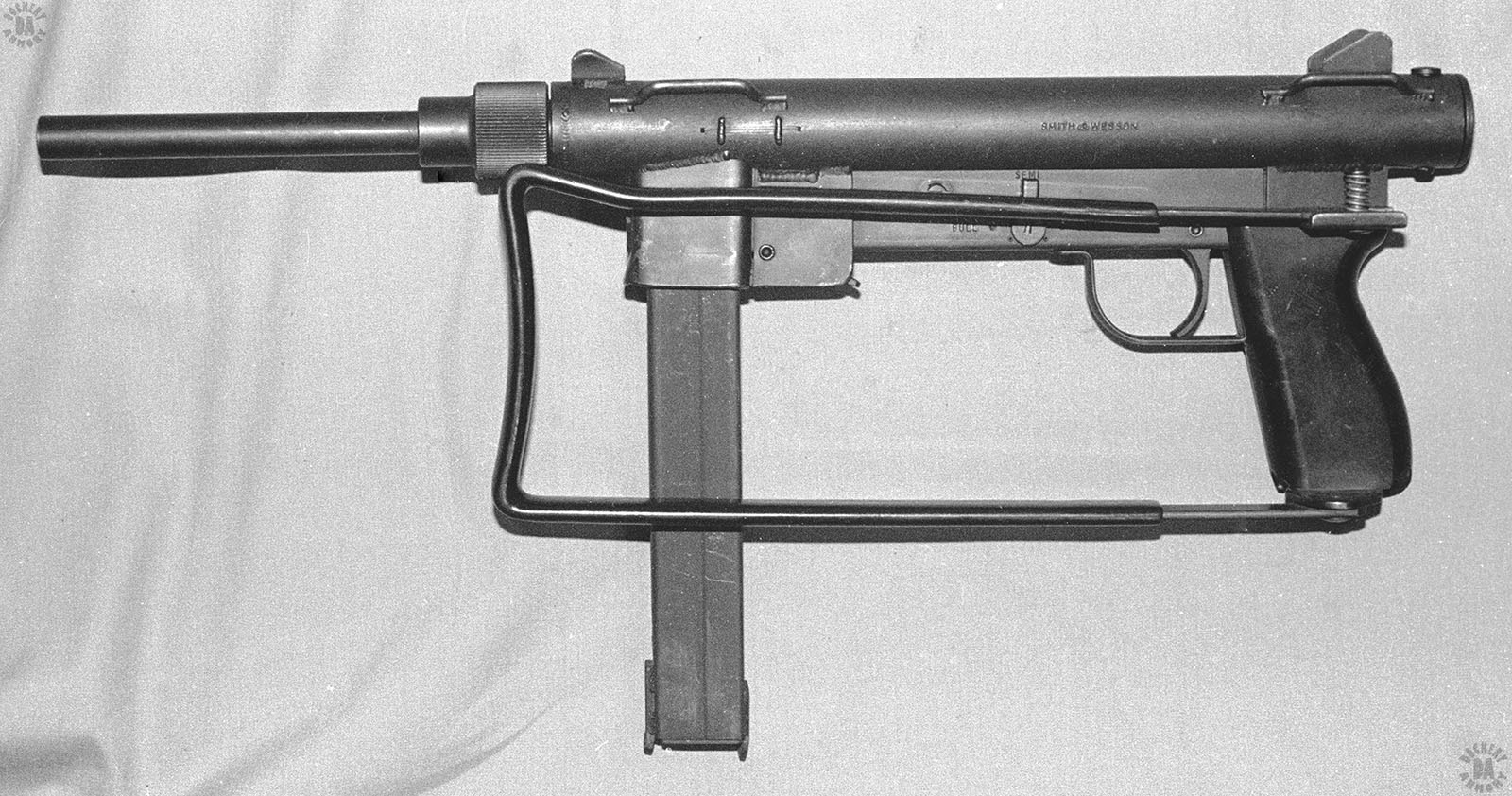

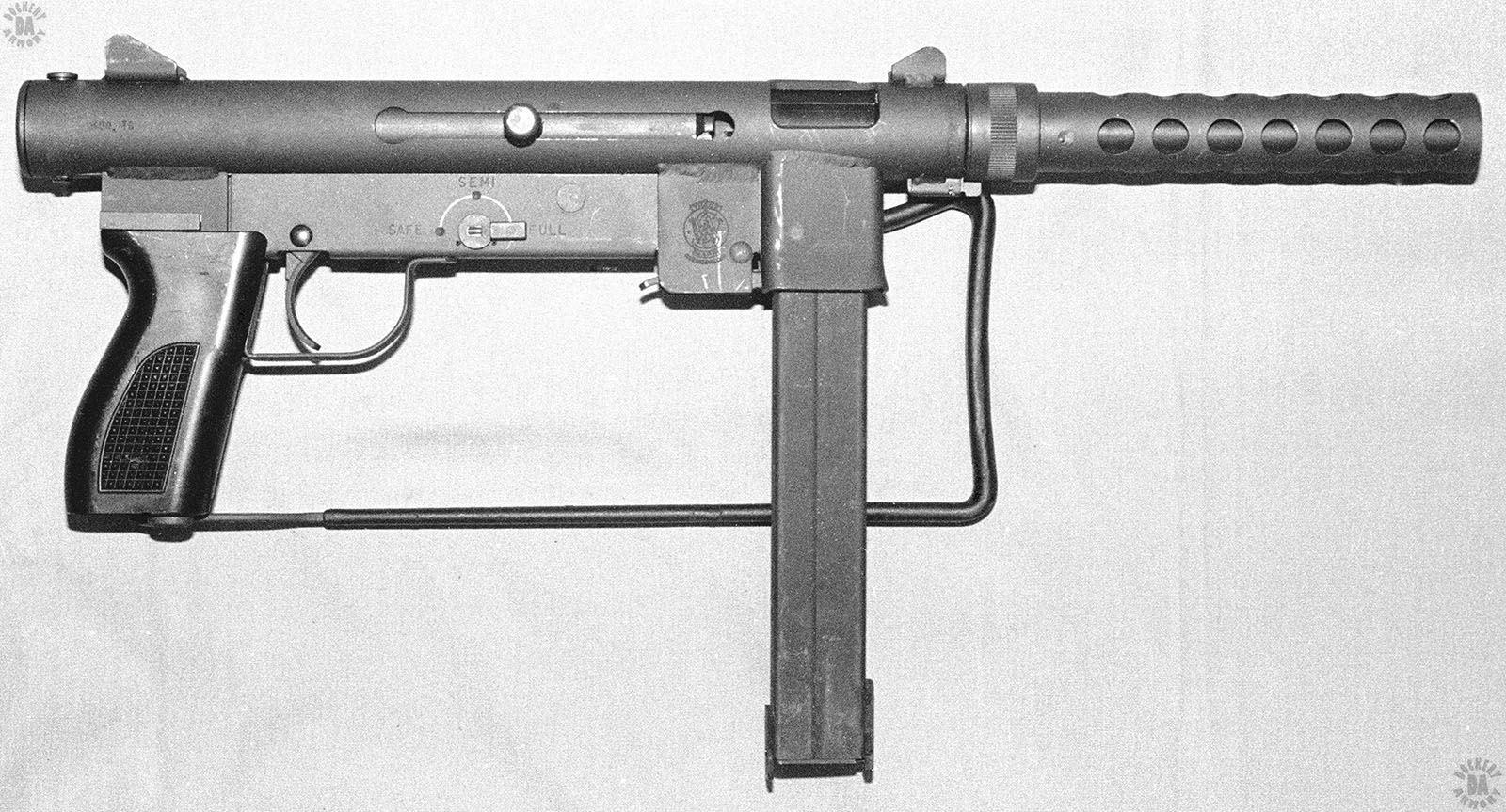

NAME – Smith & Wesson Model 76

COMMON NAMES – Submachine gun 9mm Mark 24 Mod 0

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1967

CALIBER – 9x19mm

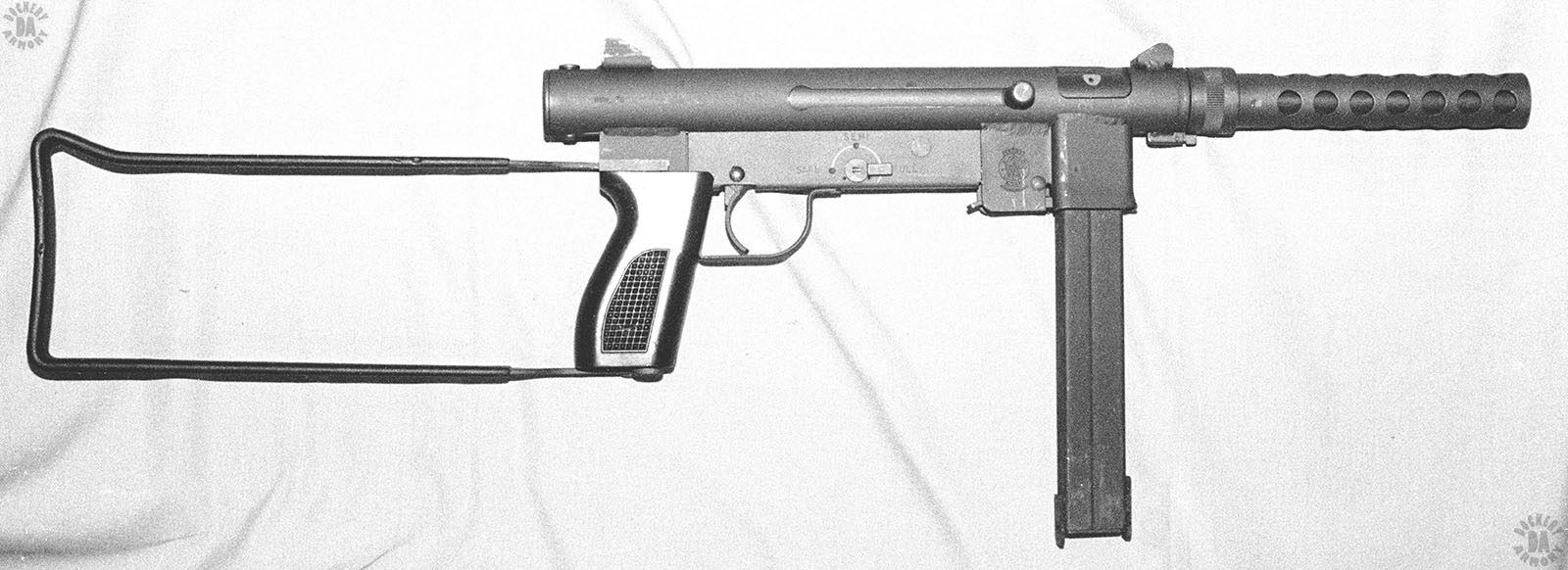

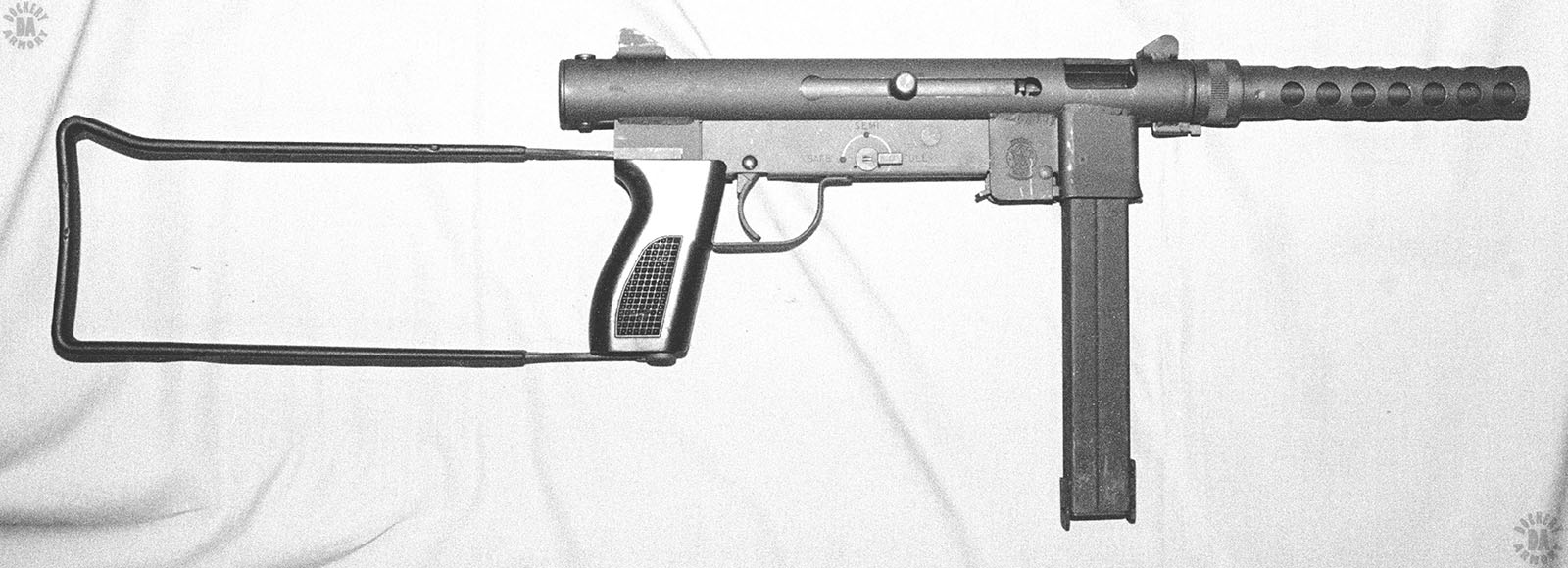

OVERALL LENGTH – 51.4 cm (20.24 in) Stock folded, 77.2 cm (30.38 in) Stock open

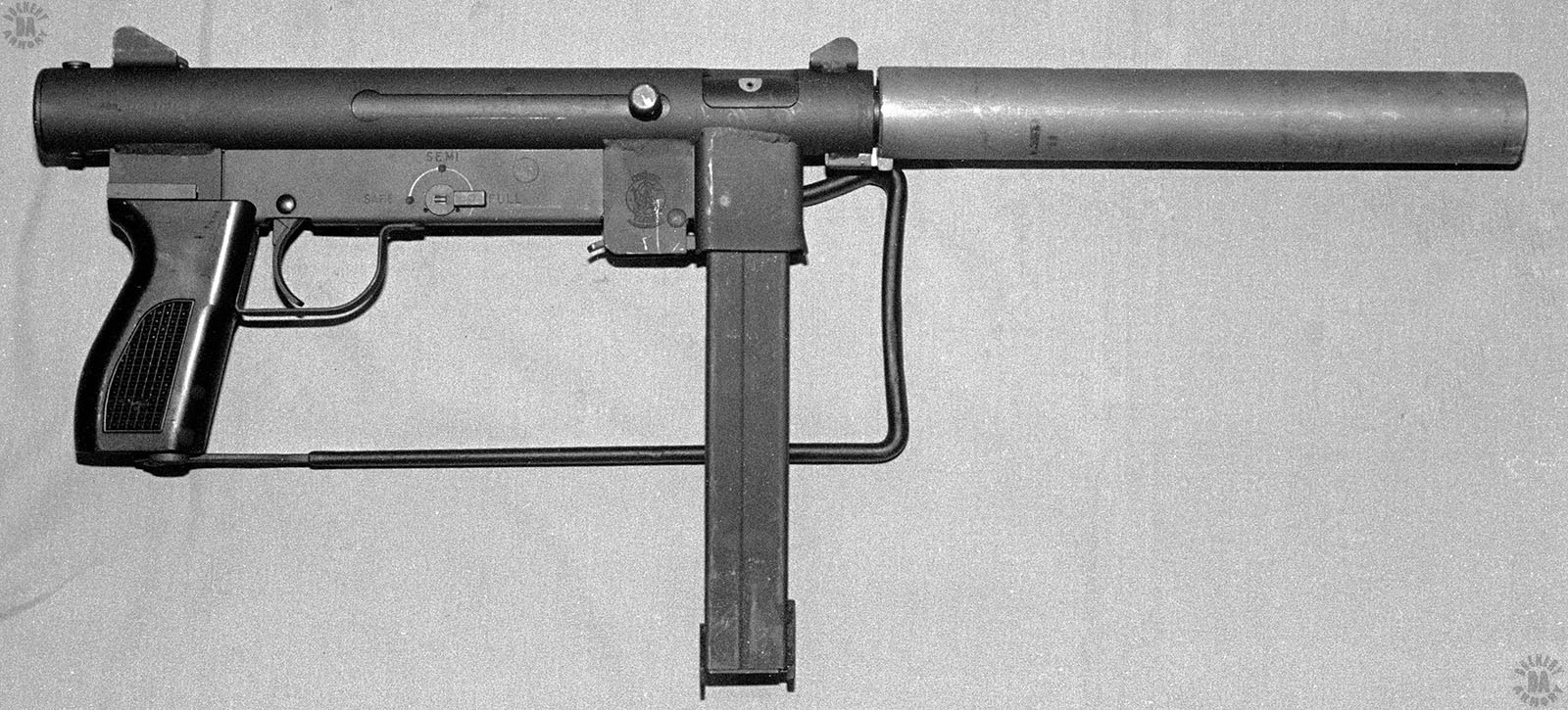

OVERALL LENGTH WITH SUPPRESSOR MOUNTED – 61.7 cm (61.7 cm (24.31) Stock folded, 87.3 cm (34.38 in) Stock open

BARREL LENGTH – 20.3 cm (8 in)

BARREL LENGTH (PORTED) – 13.3 cm (5.25 in)

SUPPRESSOR LENGTH – 28.6 cm (11.25 in)

SUPPRESSOR DIAMETER – 4.1 cm (1.63 in)

BULLET DIAMETER – 9.02 mm (0.355 in)

BULLET WEIGHT – 7.5 g (115 grains)

MUZZLE VELOCITY – 381 m/s (1250 fps)

MUZZLE VELOCITY (PORTED BARREL) – 305 m/s (1000 fps)

MUZZLE ENERGY – 541 j (399 ft/lb)

MUZZLE ENERGY (SUPPRESSED) – 346 j (255 ft/lb)

WEIGHT (EMPTY) – 3.29 kg (7 lb 4 oz)

WEIGHT (LOADED) – 3.93 kg (8 lb 10.6 oz) loaded with 36 rounds

WEIGHT (LOADED) WITHOUT BARREL JACKET – 3.67 kg (8 lb 1.5 oz) with plain barrel (T model)

WEIGHT (LOADED) WITH SUPPRESSOR – 4.5 kg (9 lb 14.7 oz) with suppressor and ported barrel

SUPPRESSOR WEIGHT – 0.65 kg (1 lb 6.9 oz)

BARREL (STANDARD) WEIGHT – 0.22 kg (7.8 oz)

BARREL JACKET WEIGHT – 0.26 kg (9.2 oz)

BARREL WEIGHT (PORTED) – 0.14 kg (4.9 oz)

SUPPRESSOR MOUNTING – Integral with barrel/receiver

SIGHTS – Open, Iron, Fixed, Front sight – Square post, Rear sight – Aperture

EFFECTIVE RANGE – 200 meters (219 yards)

OPERATION – Blowback, fires from open bolt

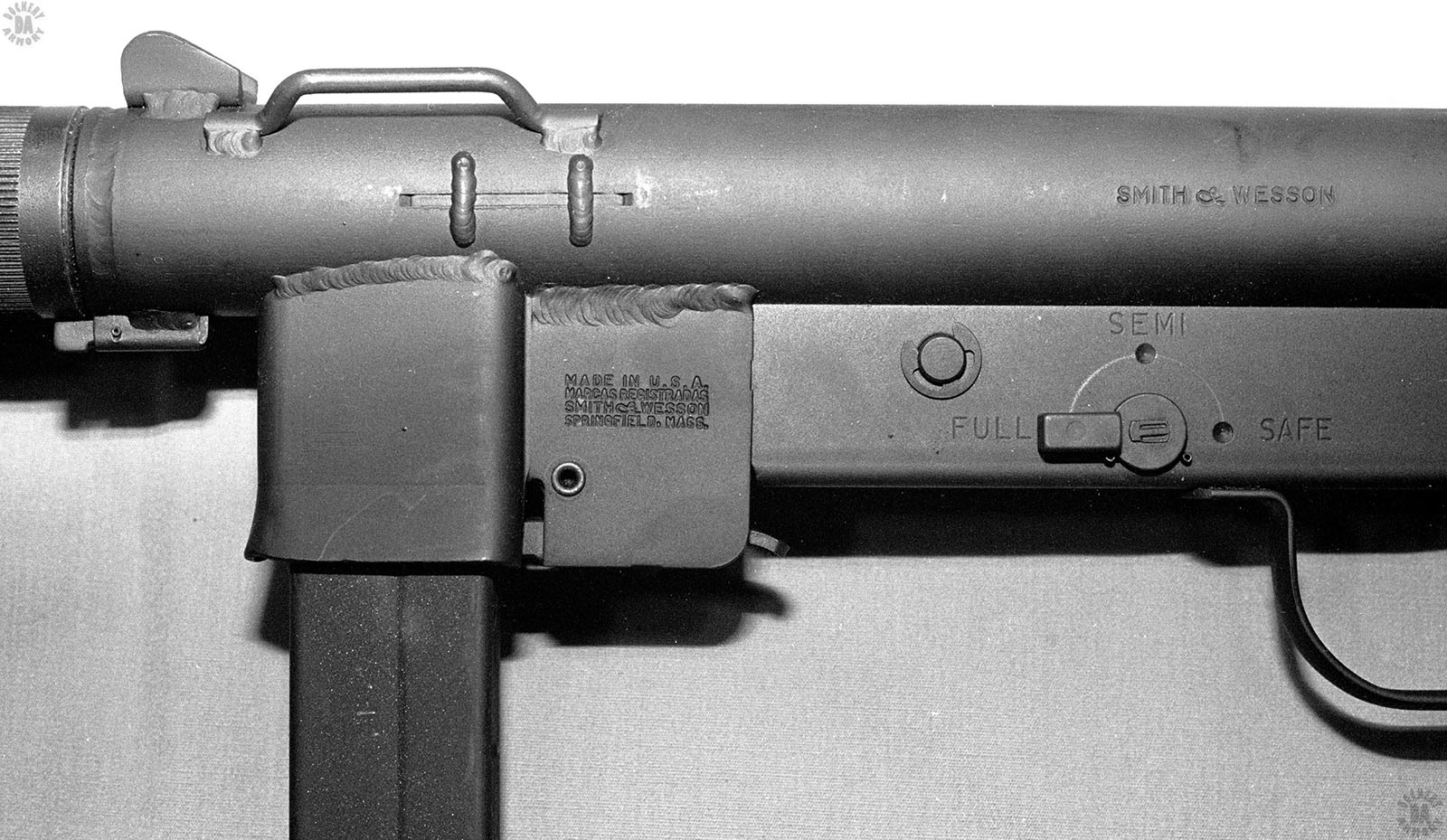

TYPE OF FIRE – Selective, Semi and Full automatic

RATE OF FIRE – 45 rpm semi, 108 rpm Full automatic

CYCLIC ROF – 720 rpm

FEED DEVICE – 36 round box magazine, double column, double feed

FEED DEVICE WEIGHT (EMPTY) – 0.22 kg (7.8 oz)

FEED DEVICE WEIGHT (LOADED) – 0.64 kg (1 lb 6.6 oz) with 36 rounds

BASIC LOAD – Four 36-round magazines (144 rounds)

LOAD WT – 2.56 kg (5 lb 10.3 oz)

MANUFACTURER – Smith & Wesson, Inc., Springfield, Massachusetts

STATUS – Out of production

SERVICE – US Navy Special Operations (Mk 24), law enforcement, commercial sales
