CODE – 02-132-978

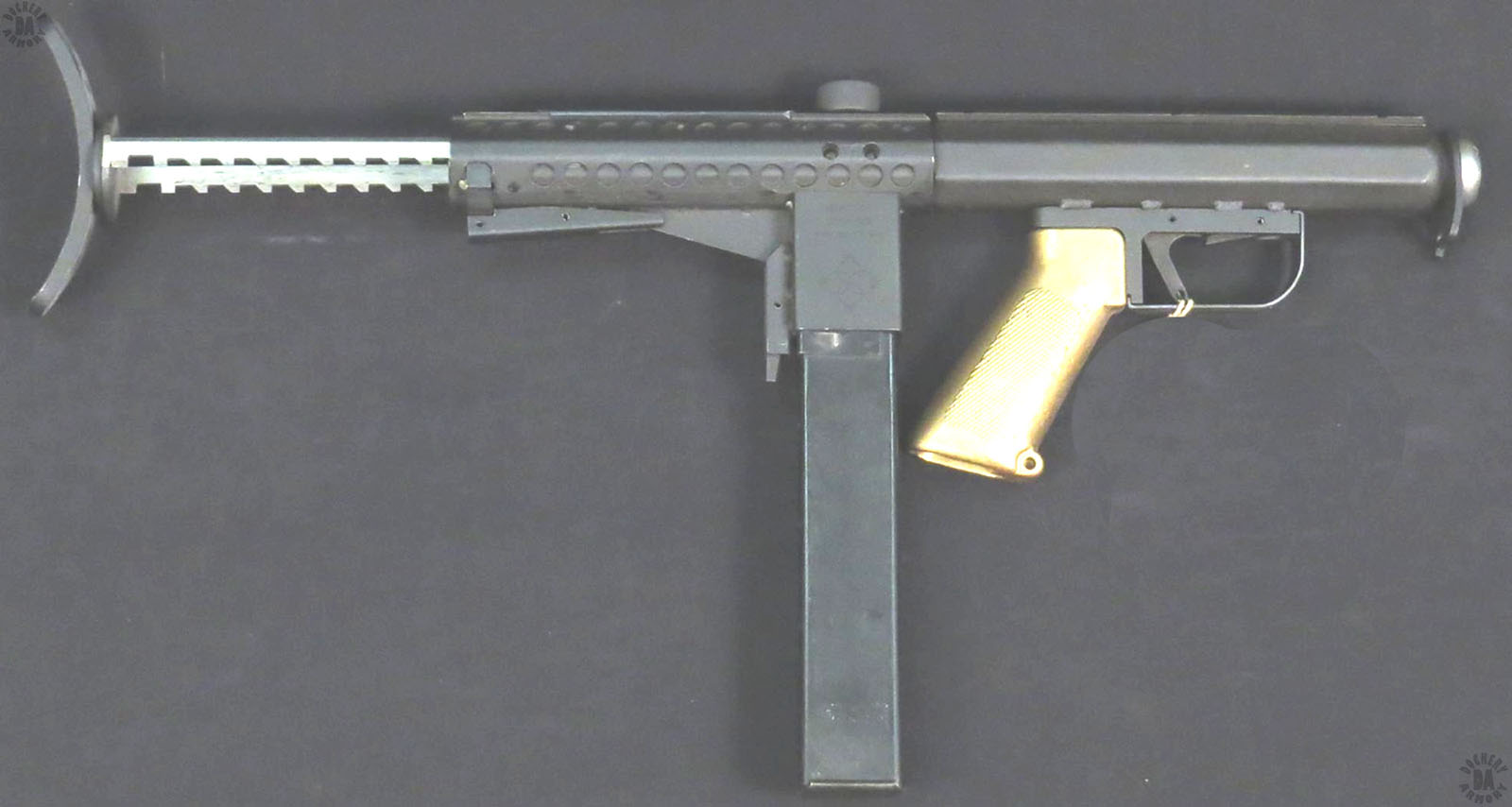

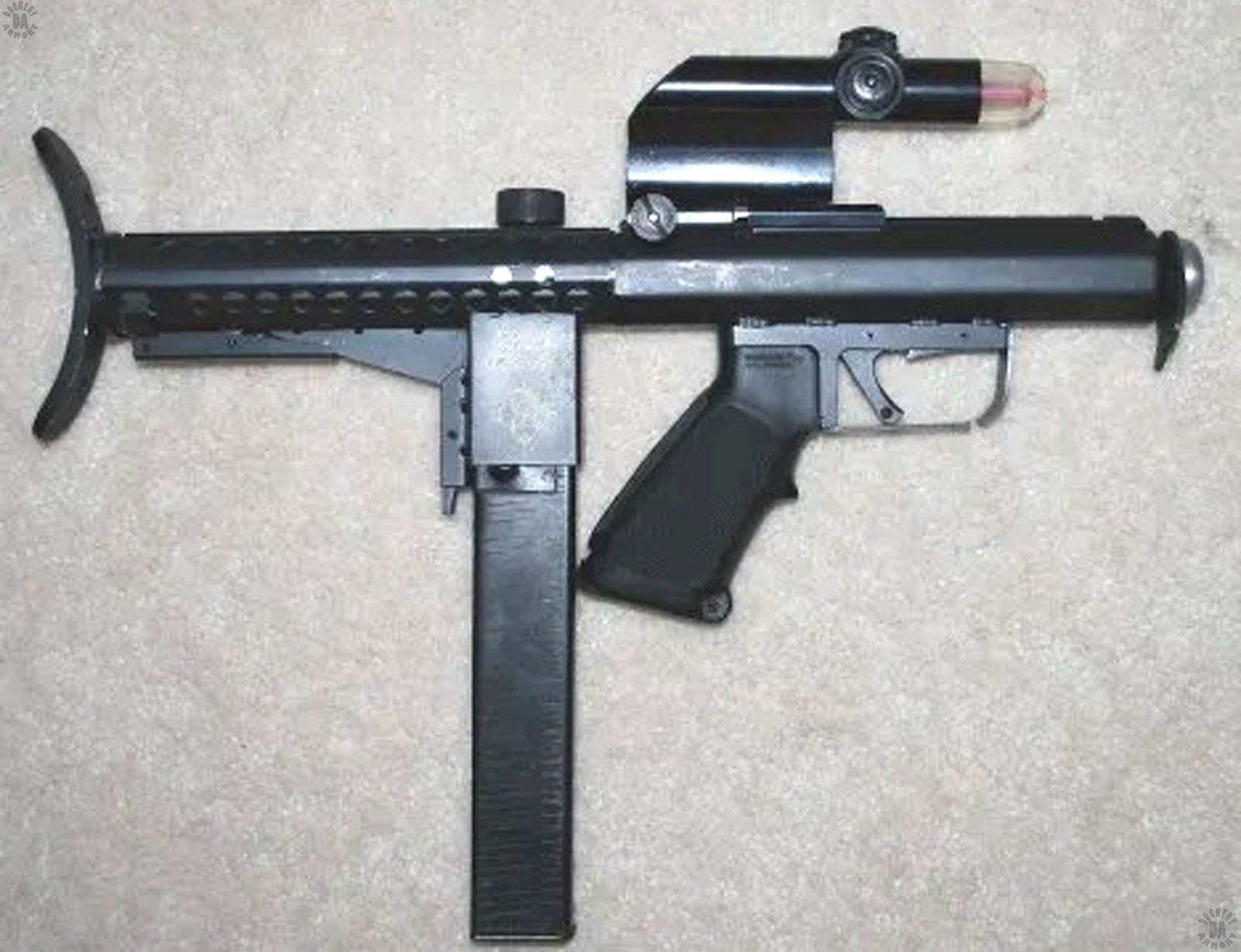

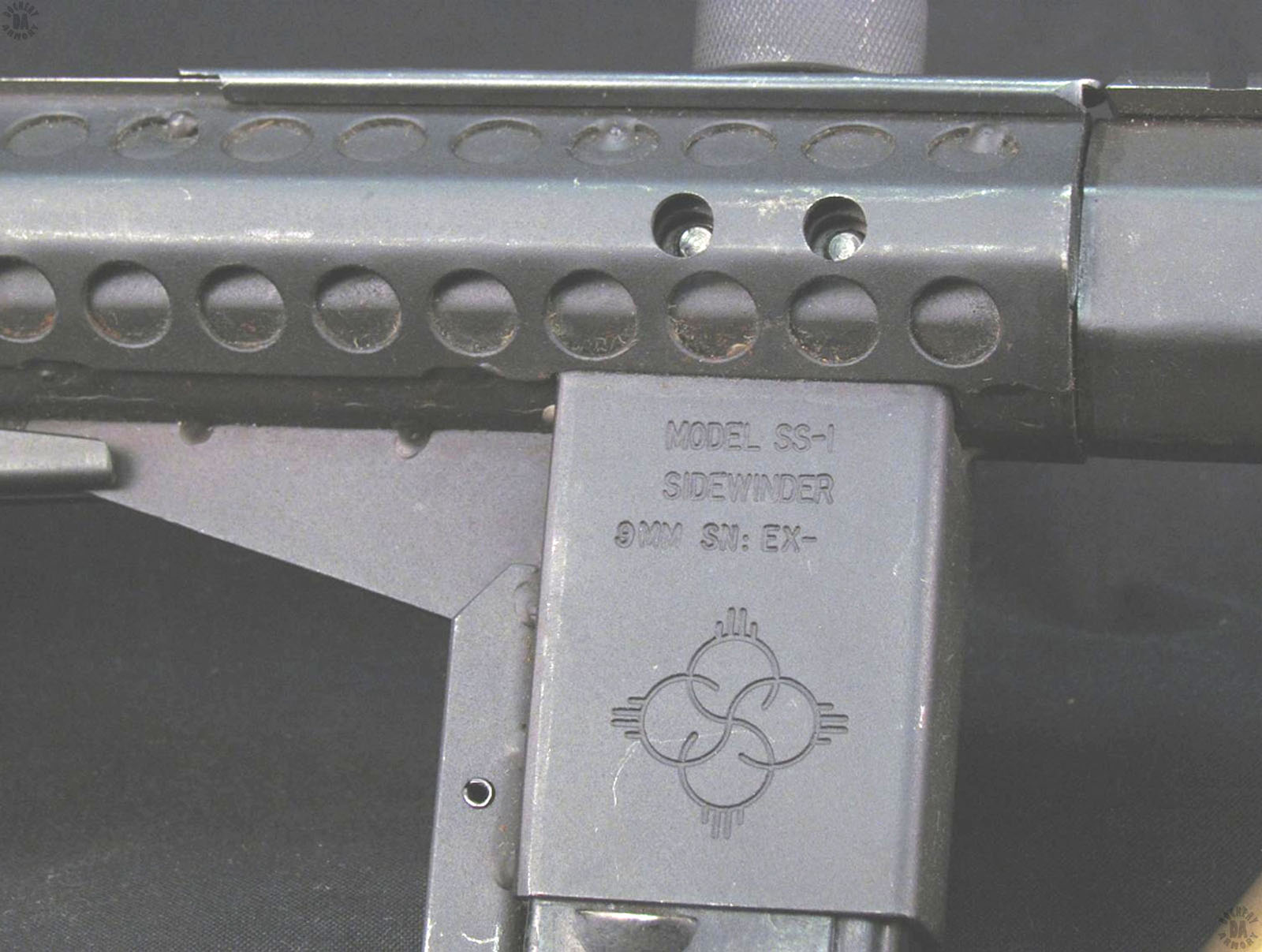

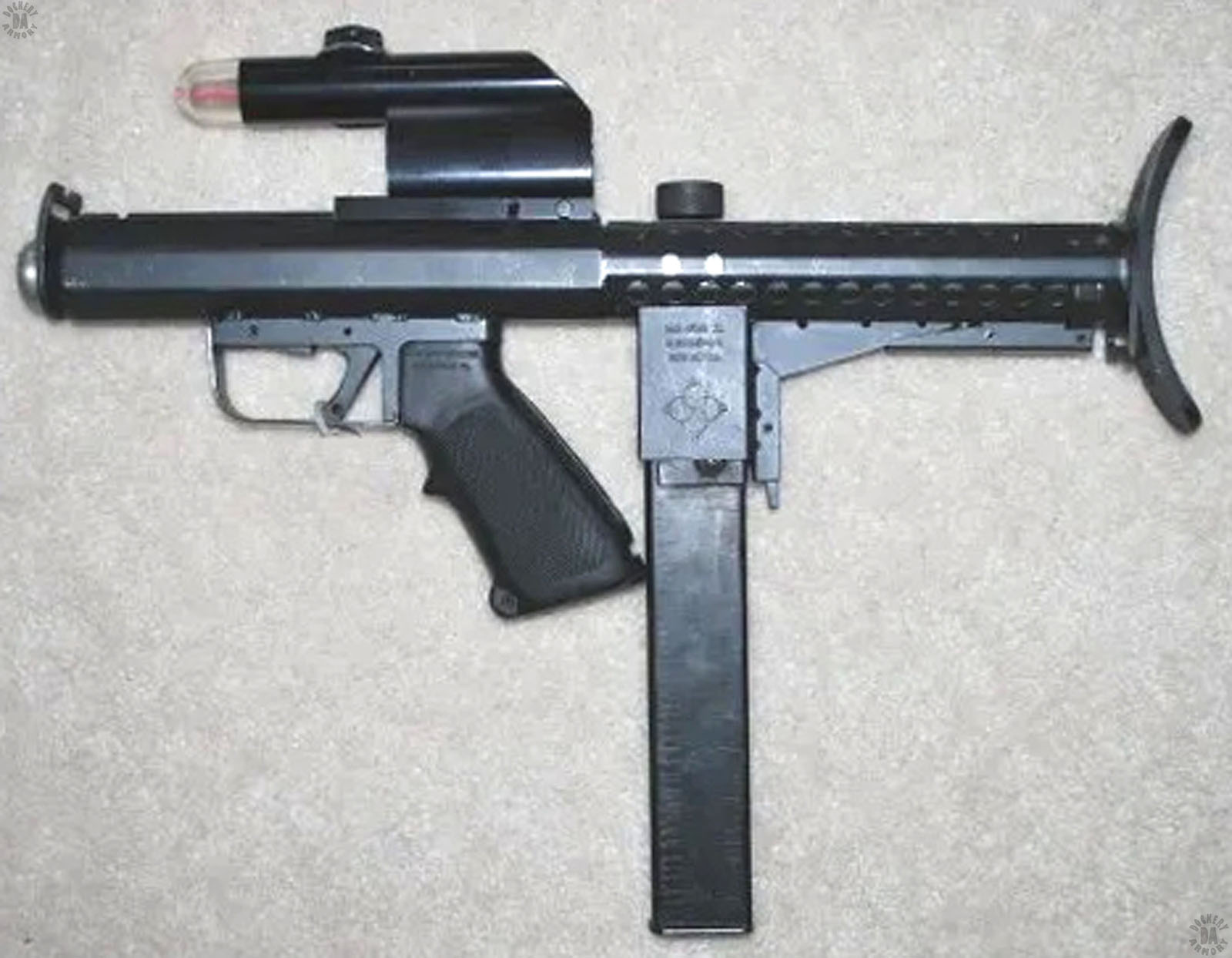

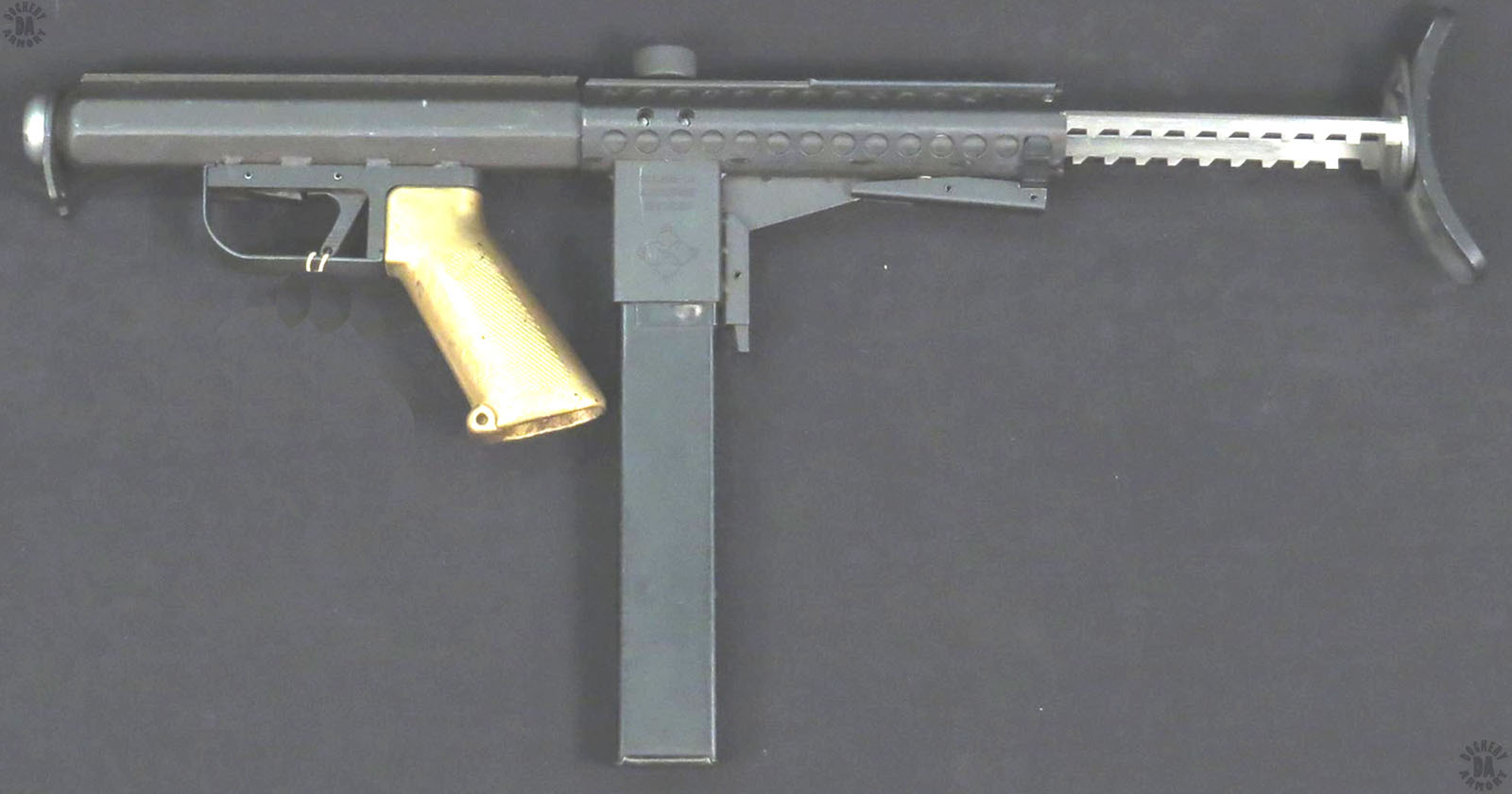

NAME – Sidewinder SS-1

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1978

CALIBER – 9x19mm

OVERALL LENGTH – 43.2 cm (17 in) Stock collapsed, 53.3 cm (21 in) stock fully extended, Stock may extend from collapsed in approximately 1 cm (0.4 in) increments to being fully extended

BARREL LENGTH – 22.9 cm (9 in)

BULLET DIAMETER – 9.02 mm (0.355 in)

BULLET WEIGHT – 7.5 g (115 grains)

MUZZLE VELOCITY – 420 m/s (1378 fps) *

MUZZLE ENERGY – 658 j (485 ft/lbs) *

WEIGHT (EMPTY) – 2.13 kg (4 lb 11 oz)

WEIGHT (LOADED) – 2.8 kg (6 lb 2.8 oz) loaded with 30 rounds

SIGHTS – No iron sights, mounting base for optical sights

EFFECTIVE RANGE – 100 meters (109 yards) *

OPERATION – Blowback, fires from open bolt

TYPE OF FIRE – Selective, progressive trigger, Semi, Three-round burst, Full automatic

RATE OF FIRE – 50 rpm Semi, 128 rpm Full automatic *

CYCLIC ROF – 700 to 1200 rpm

FEED DEVICE – 32 round box magazine, double column, single feed

FEED DEVICE WEIGHT (EMPTY) – 0.30 kg (10.6 oz)

FEED DEVICE WEIGHT (LOADED) – 0.67 kg (1 lb 7.5 oz)

BASIC AMMUNITION LOAD – Six 32-round magazines (192 rounds)

LOAD WEIGHT – 4.02 kg (8 lb 13.8 oz)

MANUFACTURER – S&S Arms Co., Albuquerque, New Mexico

STATUS – Production complete

SERVICE – None, Some evaluation by US military forces and limited commercial sales

*Estimated
