EFFECT – Blast and fragmentation, approximately 780 cylindrical fragments
BURST RADIUS – 18 m (20 yards)
FUSE TYPE – AF-11 or 13, FD-1 or 2, locking pull ring/safety lever
FUSE INITIATION – Release of safety lever
FUSE DELAY – 3.2 to 4.2 seconds
FILLER – RDX as A-IX-1
FILLER WEIGHT – 0.075 kg (2.65 oz)
FILLER EQUIVALENT TO TNT (R.E.) – 1.60
AVERAGE RANGE – 40 m (44 yards)

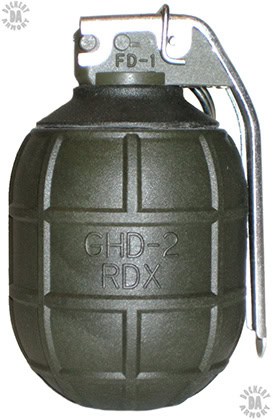

COLOR CODE – Olive drab plastic body, raised square ribs cast into body
MARKINGS – FD-1 (on fuze body), 1st line – GHD-2, 2nd line – RDX in raised letters cast into side of body, Raised 10 inside of two concentric circles on body and safety lever, lot number (in black ink) next to arsenal symbol
