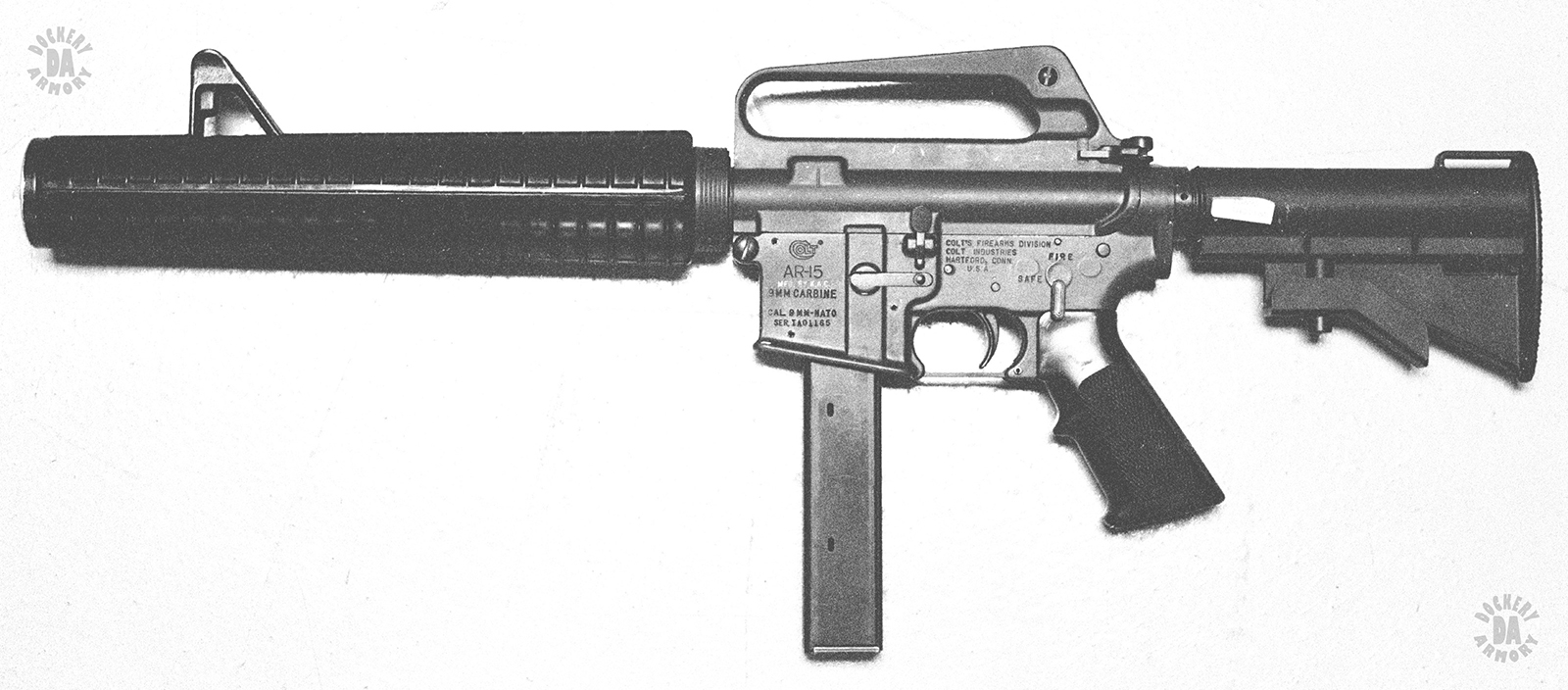

NAME – Colt Model 635SD

COMMON NAMES – Knight Suppressed Colt

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1984

CALIBER – 9x19mm

OVERALL LENGTH – 69.7 cm (27.4 in) Stock collapsed, 77.2 cm (30.4 in) Stock extended

BARREL LENGTH – 15.2 cm (6 in)

RIFLING (TYPE & TWIST) – Six groove, Right hand twist, 1 turn in 25.4 cm (10 in)

BULLET DIAMETER – 9.02 mm (.355 in)

BULLET WEIGHT – 7.45 g (115 gr)

MUZZLE VELOCITY – 285 m/s (934 fps)

MUZZLE ENERGY – 302 j (223 ft/lbs)

WEIGHT (EMPTY) – 3.062 kg (6 lbs 12 oz)

WEIGHT (LOADED) – 3.661 kg (8 lbs 1.1 oz) with 32 round magazine

SIGHTS – Front, Post, adjustable for elevation, Rear – flip-type apertures, adjustable for windage, short range 0-50 m (0 -55 yds), and long range 50-100 m (55 – 109 yds)

EFFECTIVE RANGE – 100 m (109 yds)

OPERATION – Blowback, fires from closed bolt

TYPE OF FIRE – Selective, semi and full auto

RATE OF FIRE – 50 rpm Semi, 128 rpm Full

CYCLIC ROF – 800 rpm

FEED DEVICE – 20 or 32 round box magazine, double column, double feed

FEED DEVICE WEIGHT (EMPTY) – 20 round – 0.191 kg (6.75 oz), 32 round – 0.227 kg (8 oz)

FEED DEVICE WEIGHT (LOADED) – 20 round – 0.417 kg (14.7 oz), 32 round – 0.599 kg (1 lb 5.1 oz)

BASIC LOAD – 6 – 32 round magazines (192 rounds)

LOAD WT – 3.594 kg (7 lbs 14.6 oz)

MANUFACTURER – Knight’s Armament Co., Titusville, Florida, Colt’s Manufacturing Company, Hartford, Connecticut

STATUS –Out of production

SERVICE – Limited commercial sales, special operations forces and law enforcement

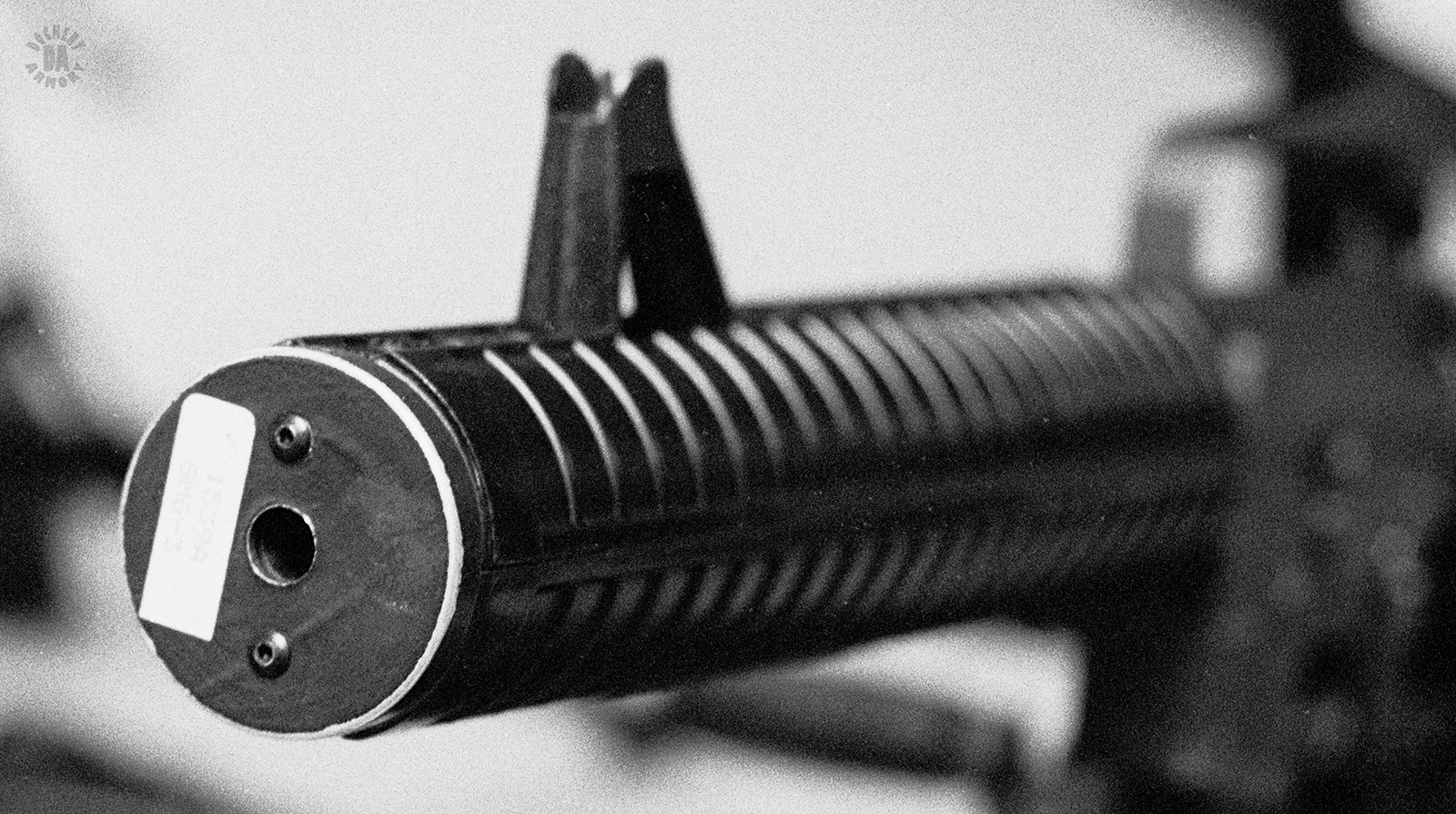

     A cooperative effort between Colt and the Knight Manufacturing Company, the Knight Suppressed Colt 9mm has an integral suppressor covered by the extended hand guard at the front of the weapon. The short barrel of the weapon is ported to allow a quantity of the propellant gases to vent into the suppressor, lowing the velocity of standard 9mm NATO ammunition to below the speed of sound. This lowing of the muzzle velocity of the projectile helps eliminate the sonic crack of launching a supersonic bullet. It also allows the Knight Suppressed 9mm to use standard 9mm NATO ammunition and still have maximum sound suppression without requiring special ammunition.
