CODE – 02-132-1942

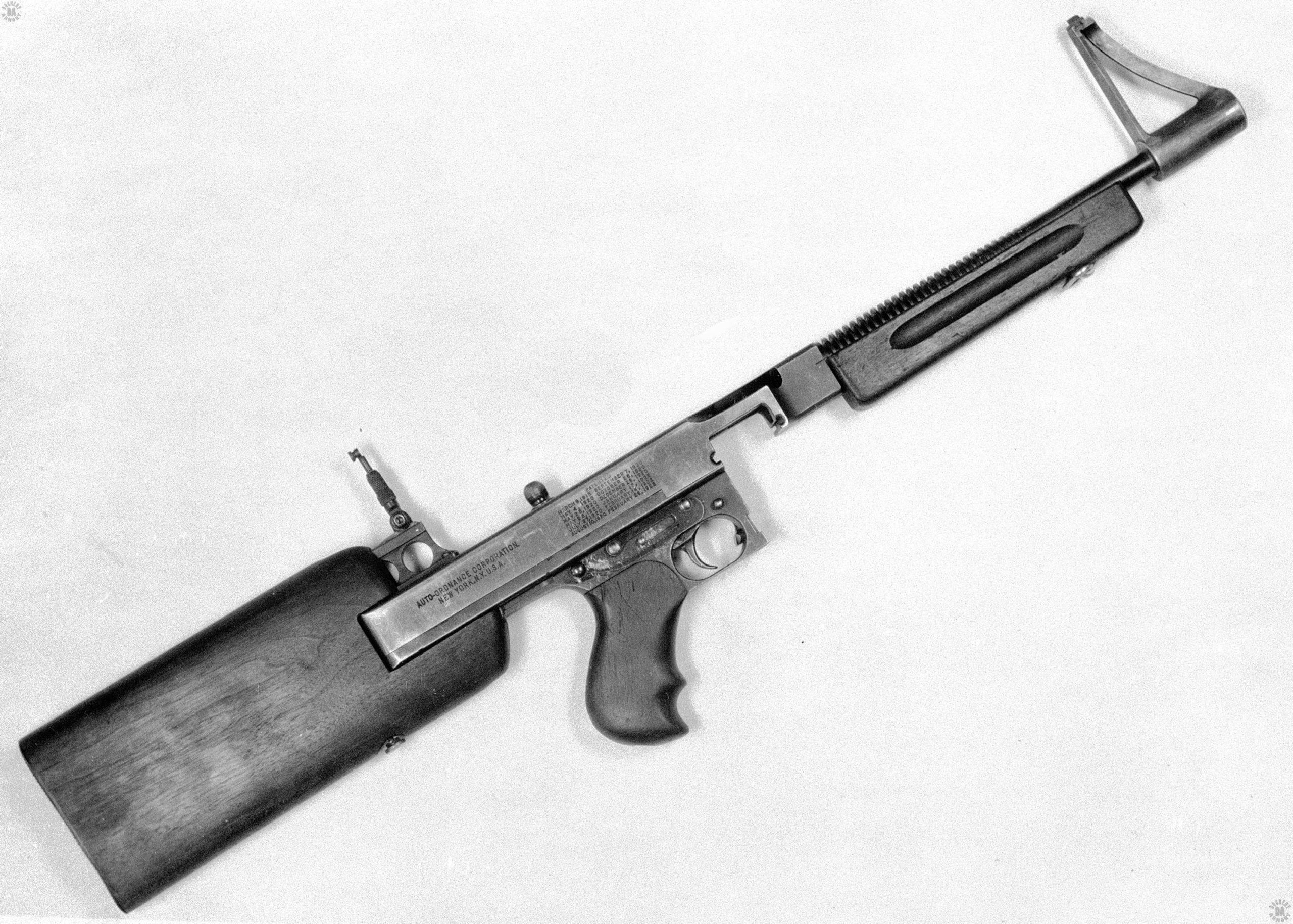

NAME – Thompson M1928A1 with Straight Stock

COUNTRY OF ORIGIN – USA

DATE OF MANUFACTURE – 1942

CALIBER – 11.43x23mm (.45 ACP)

OVERALL LENGTH – 80.8 cm (31.8 in)

BARREL LENGTH – 26.7 cm (10.5 in) Not including sight base

RIFLING (TYPE & TWIST) – 6 Groove, Right hand twist, one turn in 41 cm (16 in)

BULLET DIAMETER – 11.46 mm (0.451 in)

BULLET WEIGHT – 15 g (230 grain)

MUZZLE VELOCITY – 290 m/s (950 fps)

MUZZLE ENERGY – 625 j (451 ft/lbs)

WEIGHT (EMPTY) – 4.90 kg (10 lbs 12.8 oz)

WEIGHT (LOADED) – 5.51 kg (12 lb 2.4 oz) with 20-rd Type XX magazine

SIGHTS – Open, Iron, Adjustable, Front sight elevated blade, Rear sight, folding peep sight, adjustable for elevation

EFFECTIVE RANGE – 182.9 m (200 yds)

OPERATION – Delayed blowback with Blish principle, fires from open bolt

TYPE OF FIRE – Selective, Semi and Full automatic

RATE OF FIRE – 50 rpm (Semi), 70 rpm (Full using 20 rd magazines), 100 rpm (Full using 50 rd drums)

CYCLIC ROF – 750 rpm

FEED DEVICE – 20 (Type XX) or 30 (Type XXX) round box magazine, Double column, double feed, 50 (Type C) round drum magazine

FEED DEVICE WEIGHT (EMPTY) – 20 rd 0.18 kg (6.4 oz), 30 rd 0.23 kg (8 oz), 50 rd drum 1.13 kg (2 lbs 7.8 oz)

FEED DEVICE WEIGHT (LOADED) – 20 rd 0.61 kg (1 lb 5.4 oz), 30 rd 0.86 kg (1 lb 14.3 oz), 50 rd drum 2.21 kg (4 lbs 14 oz)

BASIC LOAD – Five Type XX 20-rd magazines, 2 Type L 50-rd drums (200 rounds)

LOAD WT – 7.52 kg (16 lb 9.3 oz)

MANUFACTURER – US Military

STATUS – Obsolete

SERVICE – None, experimental only
